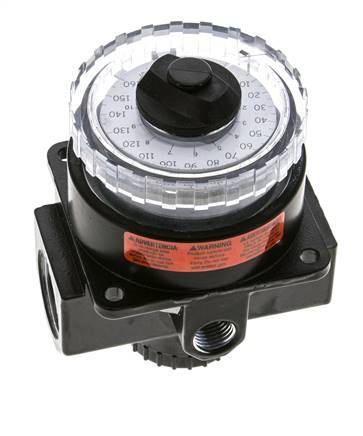

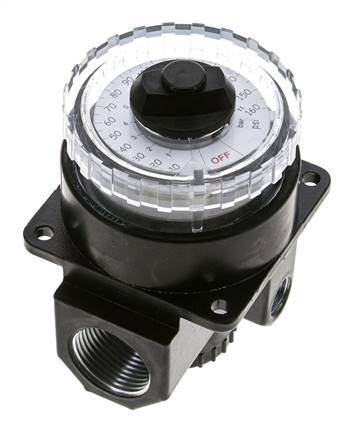

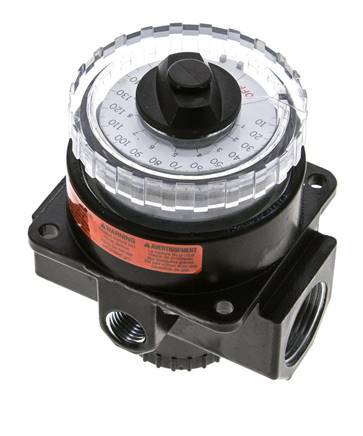

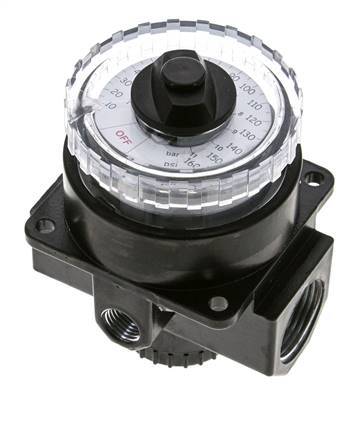

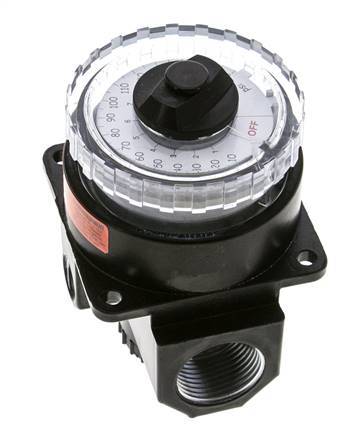

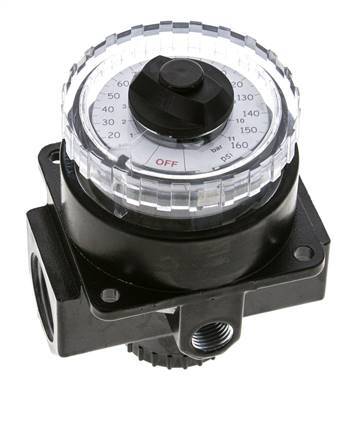

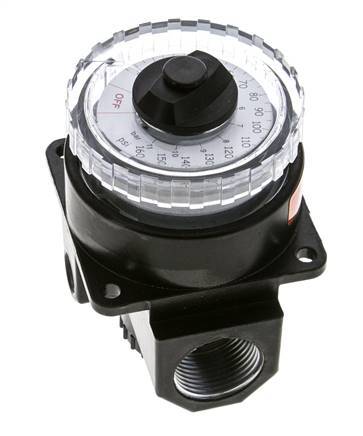

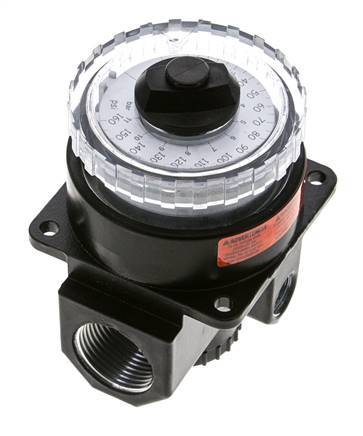

Pressure Regulator G2'' 24000 l/min 0.0-11.0bar/0-160psi
This G 2 inch pneumatic pressure regulator controls the output pressure to a set, stable level even when the input pressure varies. The adjustable output pressure range is 0.0 to 11.0 bar (0 to 160 psi). The regulator is self-relieving. Includes a pressure gauge. The max flow rate is 24000 l/min. Suitable for a 21.0 bar (305 psi) max input and temperatures between 0 and 65 °C (32 and 149 °F).
- Regular price
- £692.28
Description
The pressure regulator adjusts the pressure continuously to a stable level, even when the input pressure varies. The level can be adjusted between 0.0 to 11.0 bar (0 to 160 psi). This model has G 2 inch ports. The maximum flow rate is 24000 l/min. It is recommended to select a filter with a maximum flow rate 1.5 to 2 times higher than the maximum flow rate in your system to avoid excessive pressure drop. Additionally, keep in mind that lower input pressures may reduce the achievable maximum flow rate, so ensure your system pressure is sufficient for optimal performance. Note that the pressure regulator controls the output pressure, not the flow rate.
The maximum input pressure is 21.0 bar (305 psi) and the temperature range is between 0 and 65 °C (32 and 149 °F). There is a built-in pressure relief valve on the outlet side when the set pressure is exceeded. The Dial-Air (TM) regulators feature a transparent, pressure-calibrated, non-rising adjustment dial for easy setting. Dialing the full reduced pressure range only requires 270° of rotation. This device serves as a 3/2-way shut-off valve, a pressure regulator, as well as a pressure gauge. It is possible to mount Dial-Air (TM) regulators in any position so that the dial face is always visible. A large adjustment button makes it easy to set the pressure.
