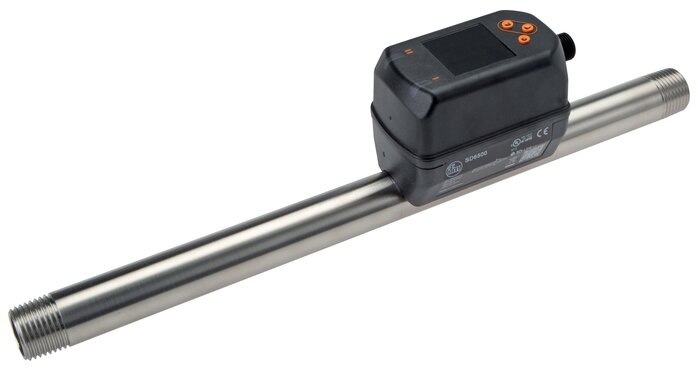

R2'' IFM SD2500 compressed air flow meter 40-11670 Nl/min
Measures compressed air flow from 40 to 11670 Nl/min and the air temperature. Nl/min means normal liters per minute, the air volume at standard conditions. The color display shows current, total and peak use, to track leaks and assign air use to processes. Two switching outputs (PNP or NPN, to match the input type of the control system) signal limits. Output 1 can also send all values via IO-Link, and output 2 a 4 to 20 mA or pulse signal to a monitoring system. It takes 18 to 30 V DC via M12 from the control system; for stand-alone use, add power supply M28AT.
- Regular price
- £1,693.62
Description
Measures compressed air flow from 40 to 11670 Nl/min and the air temperature. Nl/min means normal liters per minute, the air volume at standard conditions. The color display shows current, total and peak use, to track leaks and assign air use to processes. Two switching outputs (PNP or NPN, to match the input type of the control system) signal limits. Output 1 can also send all values via IO-Link, and output 2 a 4 to 20 mA or pulse signal to a monitoring system. It takes 18 to 30 V DC via M12 from the control system; for stand-alone use, add power supply M28AT.
Pros:
- Consumption, flow and temperature in one device
- 4 to 20 mA, pulse, switching output and IO-Link
- Negligible pressure loss (calorimetric principle)
- Color display with totalizer and peak value
Cons:
- Only for compressed air; for liquids, choose a liquid flow meter
- Straight inlet: at least 5 pipe diameters after a bend, 15 after two bends, 35 after a valve
