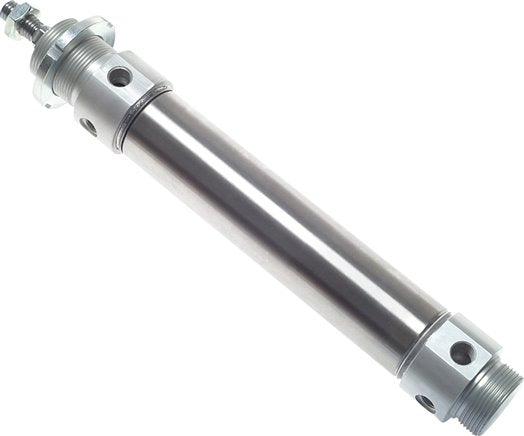

Round Double Acting Cylinder 32-50mm - Magnetic - Damping
This is a double acting round pneumatic cylinder with a Ø32 mm bore and 50 mm stroke. The operating pressures is 1 to 10 bar (14.5 to 145.04 psi). The cylinder is self-lubricating and has adjustable damping and has a magnetic piston for position sensing. The end rod thread size is M10. Wide range of mounting accessories available. The cylinder head and foot are made from aluminum, the cylinder tube is made from 304 stainless steel and the piston rod is made from chromium plated steel. Suitable for temperatures of -20 to 80 °C.
- Regular price
- £175.22
Description
This pneumatic cylinder is double acting, meaning it requires air pressure to extend and retract the rod. The cylinder is not standardized and adheres to round cylinders. Typically, this cylinder is used for repairs. For new construction, it is better to use pneumatic ISO 15552 cylinders. The bore size is 32 mm and it has a stroke length of 50 mm. This cylinder has an operating pressure of 1 to 10 bar (14.5 to 145.04 psi). The piston rod has a M10 threads at the end. The piston contains a magnetic element. This allows precise position feedback of the rod location by mounting (one or more) magnetic sensors, such as reed or hall sensors. The damping on the both ends of the stroke is adjustable with set screws. The cylinder has two G 1/8 inch ports for the air routing. The cylinder can be mounted rigid or flexible with a wide range of mounting options, such as rod swivel joint ends (ISO 8139) or rod fork ends. The cylinder head and foot are made from aluminum, the cylinder tube is made from 304 stainless steel and the piston rod is made from chromium plated steel.
Pros:
- Double acting cylinders can apply pressure in two directions and offer more motion control than single acting cylinders
- The end of the rod stroke can be adjusted for damping
- The cylinder is self lubricating and requires little maintenance
Cons:
- Not suited for icy conditions
