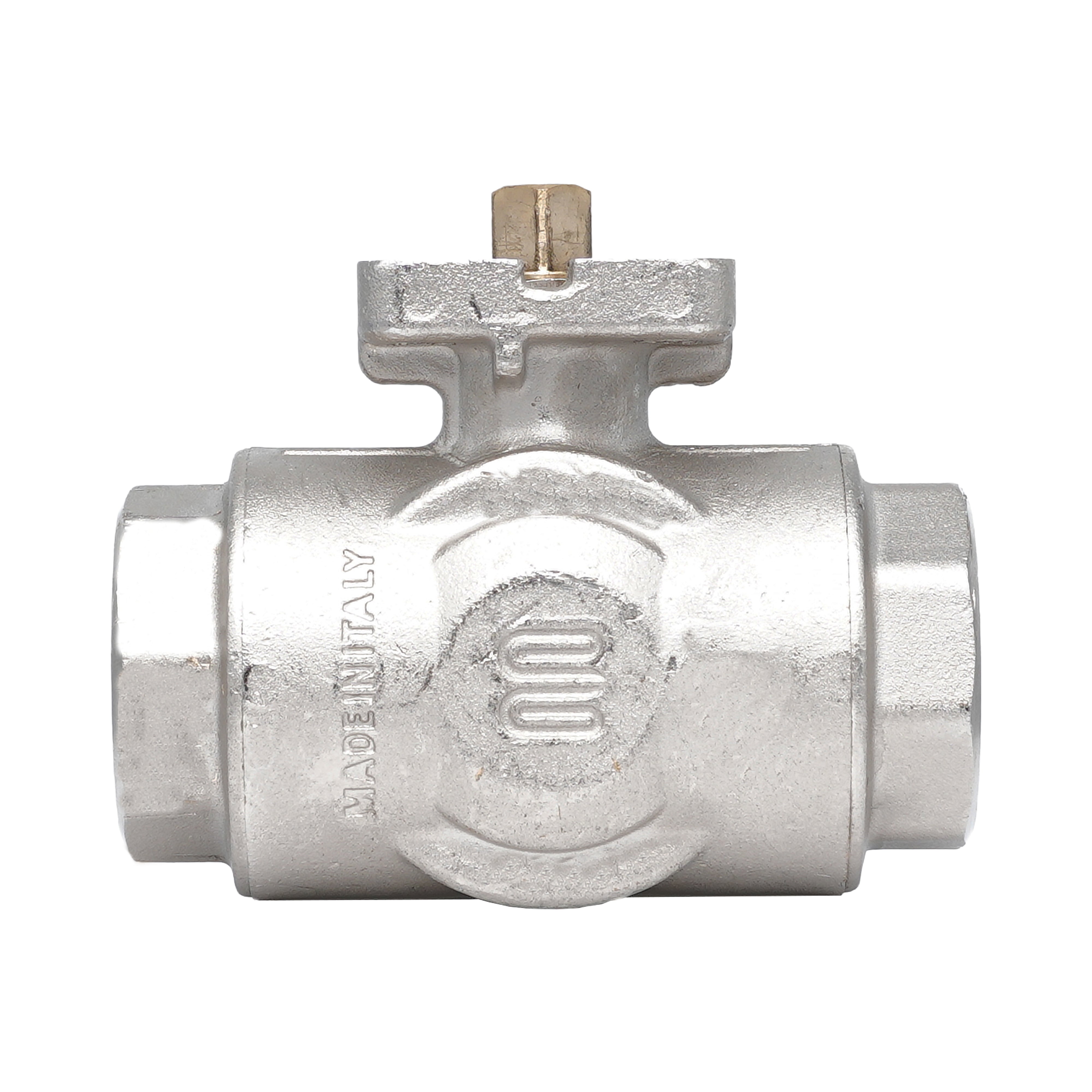

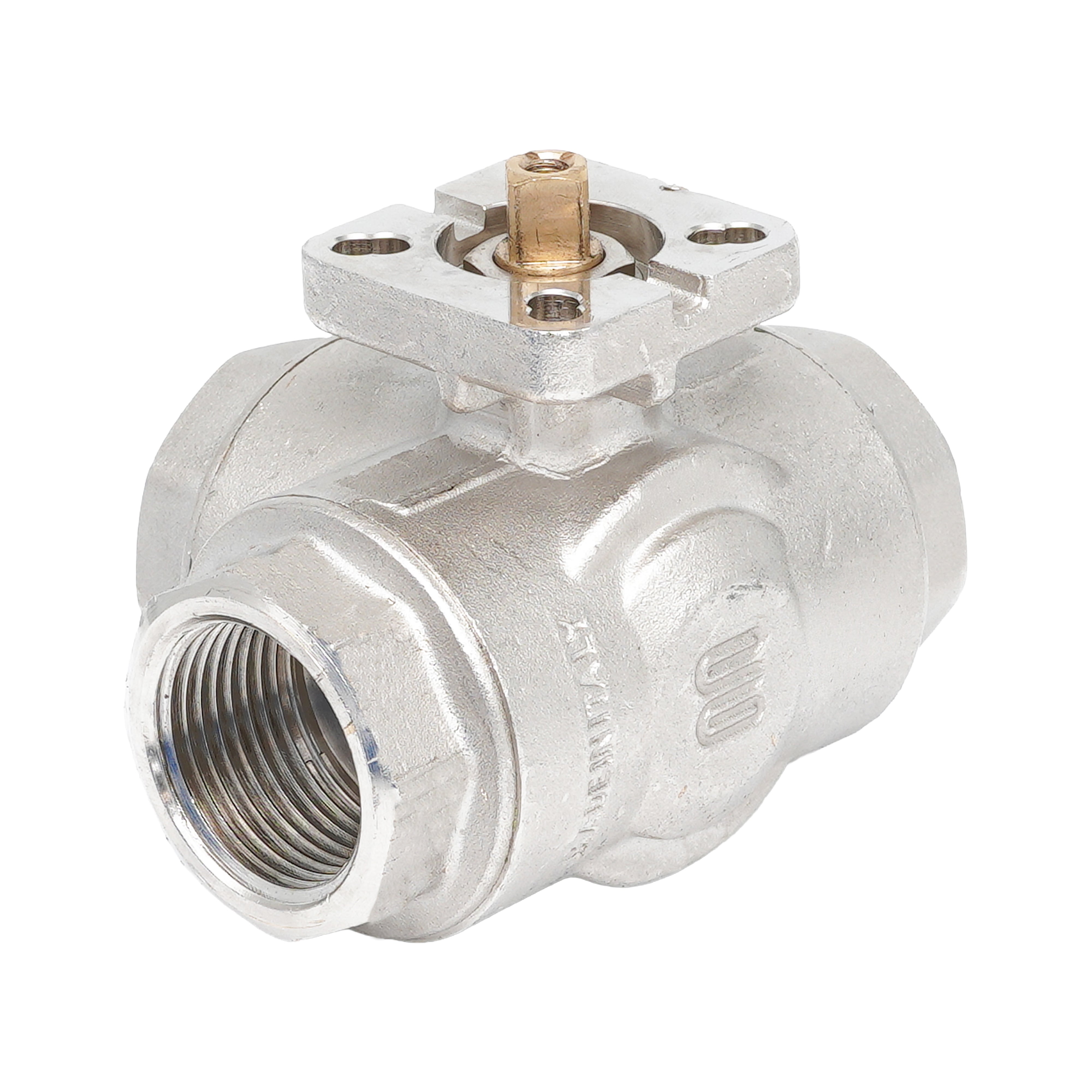

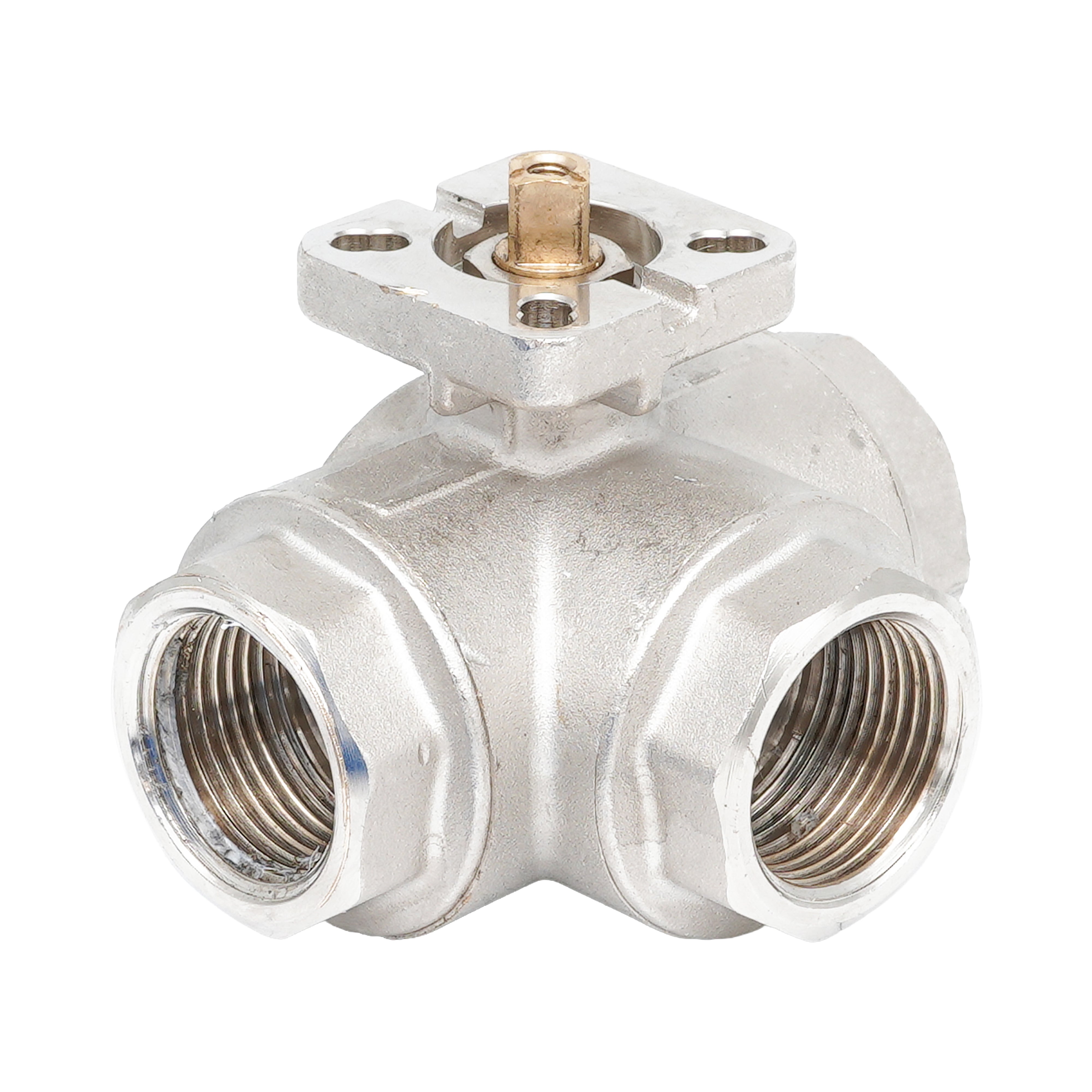

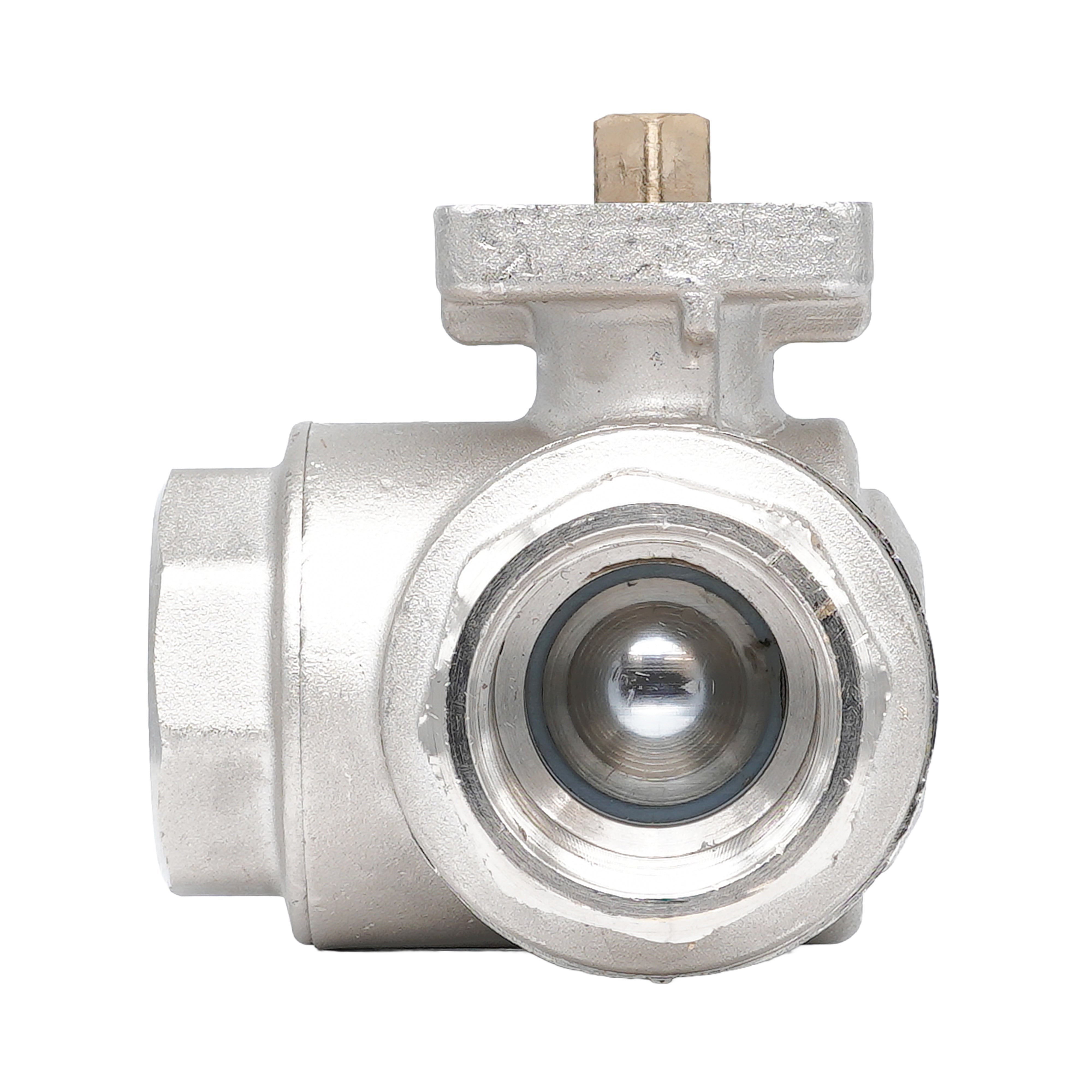

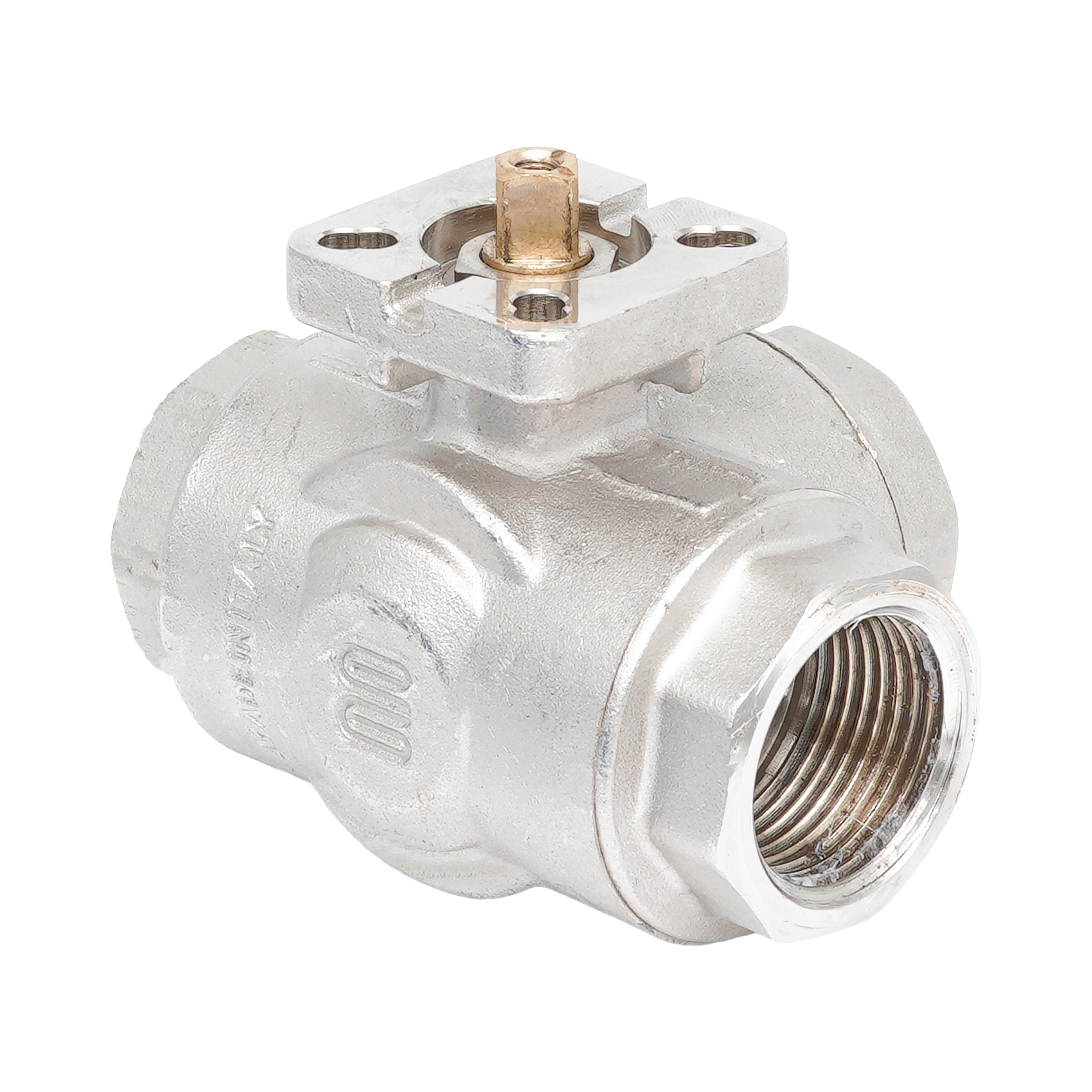

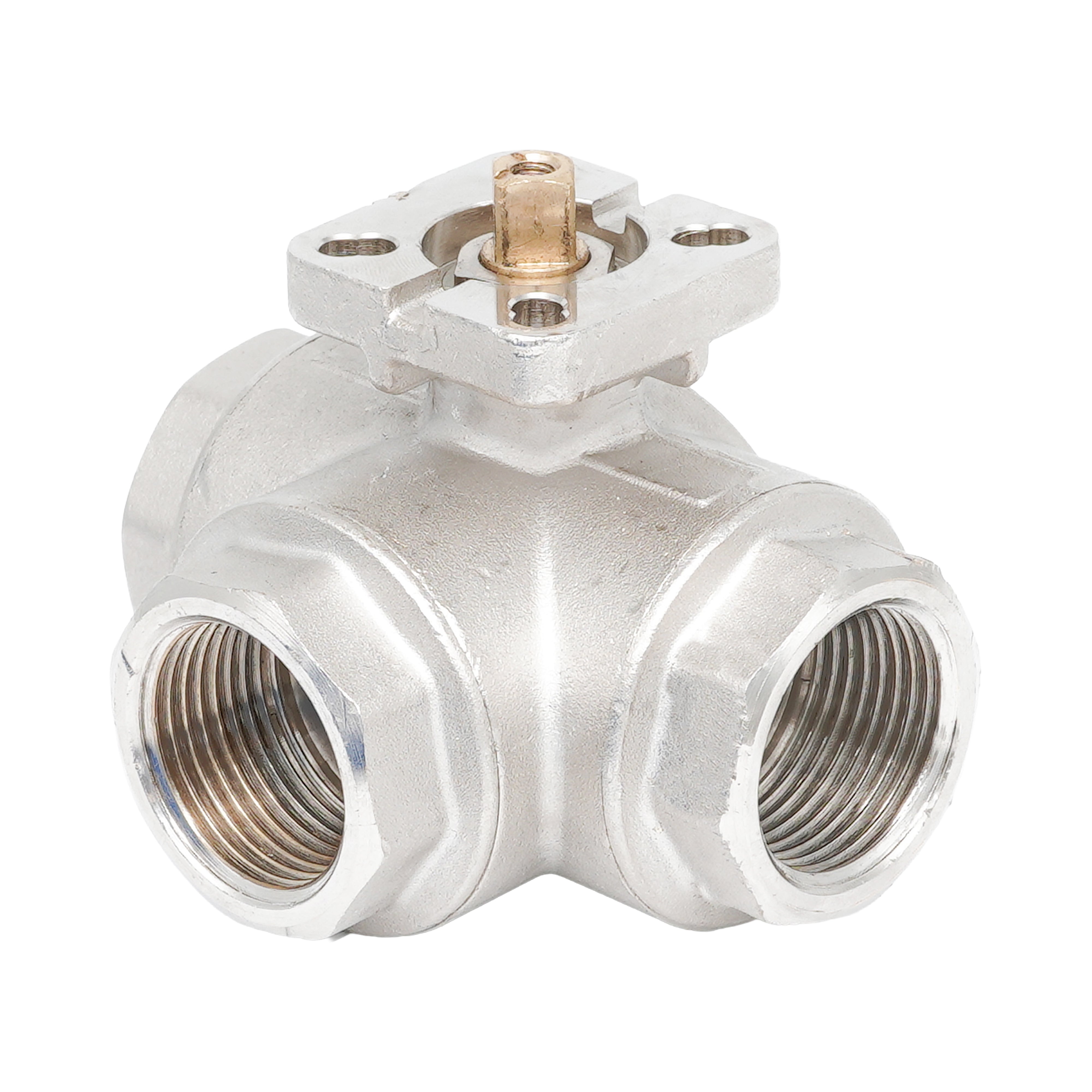

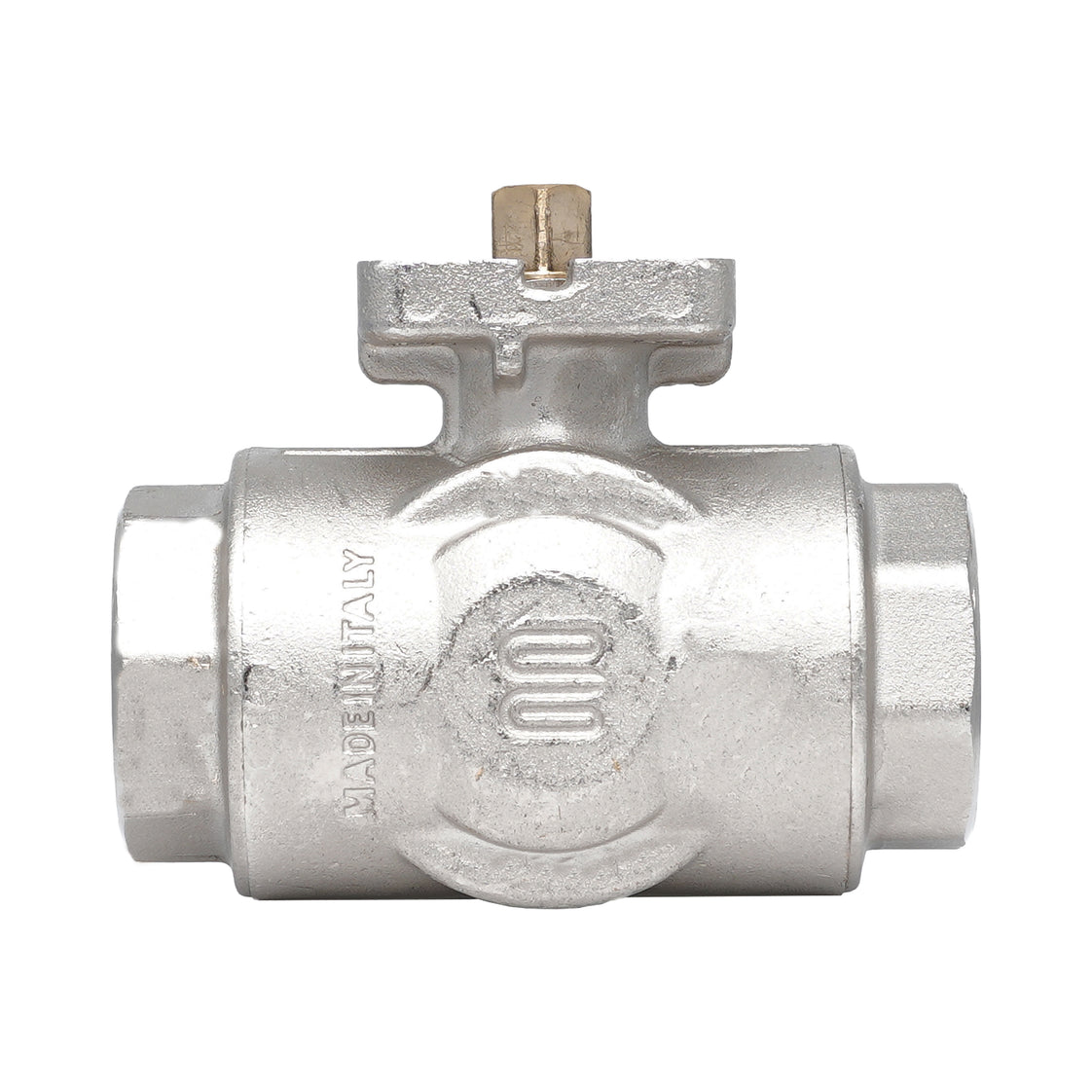

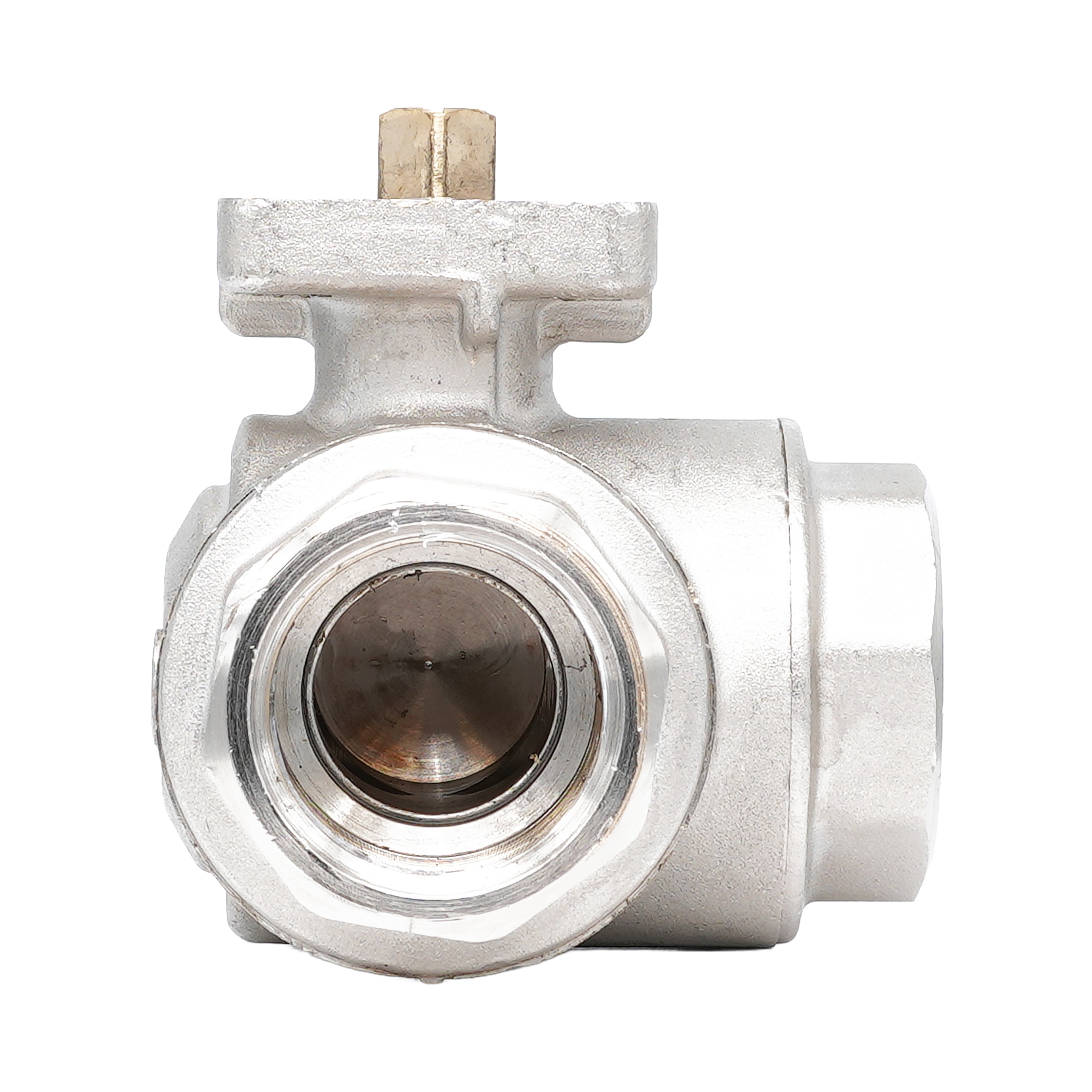

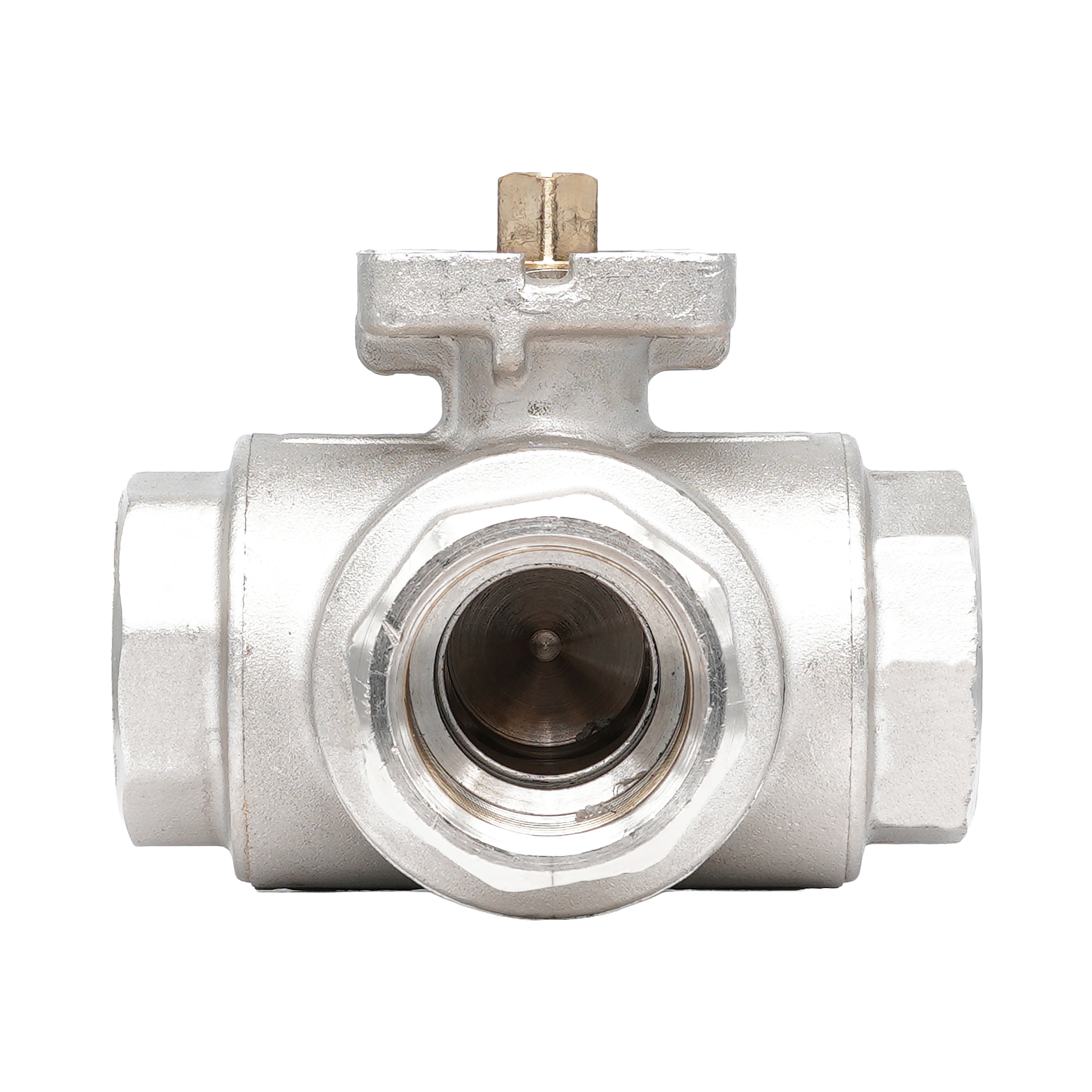

Rp 1-1/4" 3-way L-Bore Brass Ball Valve ISO-Top F04/05 PN40
- Regular price
- £193.07
Description
This Rp 1 1/4" BSP female 3-way L-bore brass ball valve controls flow direction across three ports. The L-bore ball has two positions - switch flow to one of two alternative lines. A Kv of 30.3 m³/h, which means the valve passes 30.3 m³/h of water at 1 bar pressure drop.
The ISO 5211 F04/F05 mounting flange is a standardised interface for direct mounting of any compatible electric or pneumatic actuator. The break torque at maximum pressure is 16 Nm - use this value when sizing a compatible actuator.
PTFE ball seal and stem seal make it suitable for water, compressed air, oils, fuels, solvents, alcohols, lubricants, and gas. Avoid use with strong acids, ammonia, or seawater. Rated to 40 bar at 20 °C, working temperature range -20 to 130 °C (-4 to 266 °F).
Pros:
- ISO 5211 F04/F05 flange - direct actuator mounting, no bracket needed.
- PTFE ball seal and stem seal - suitable for wide range of media.
- Two-position L-bore - simple and reliable flow switching between two lines.
Cons:
- Brass not suitable for strong acids, ammonia, or seawater - check stainless steel variants.
- No handle is supplied with the valve.
