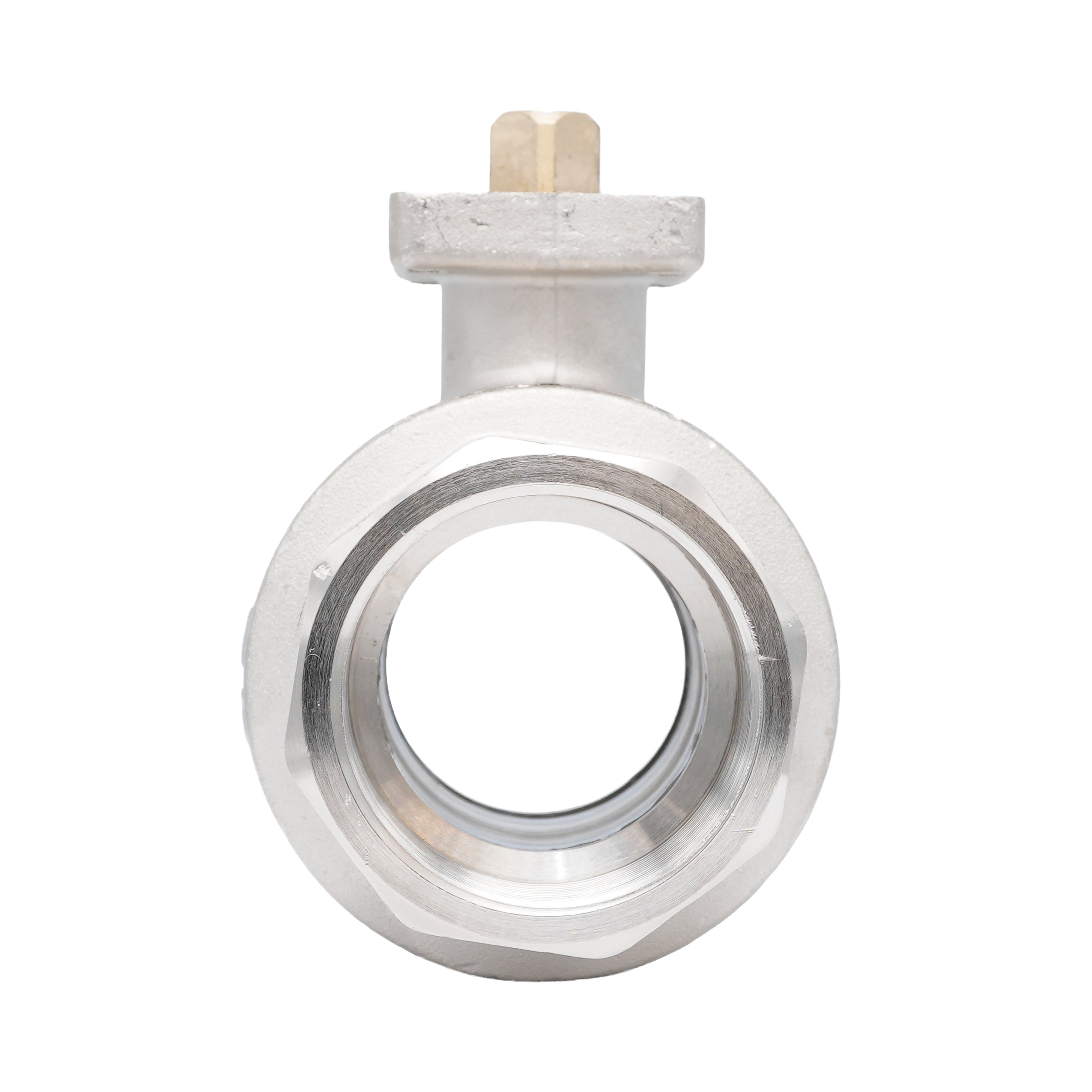

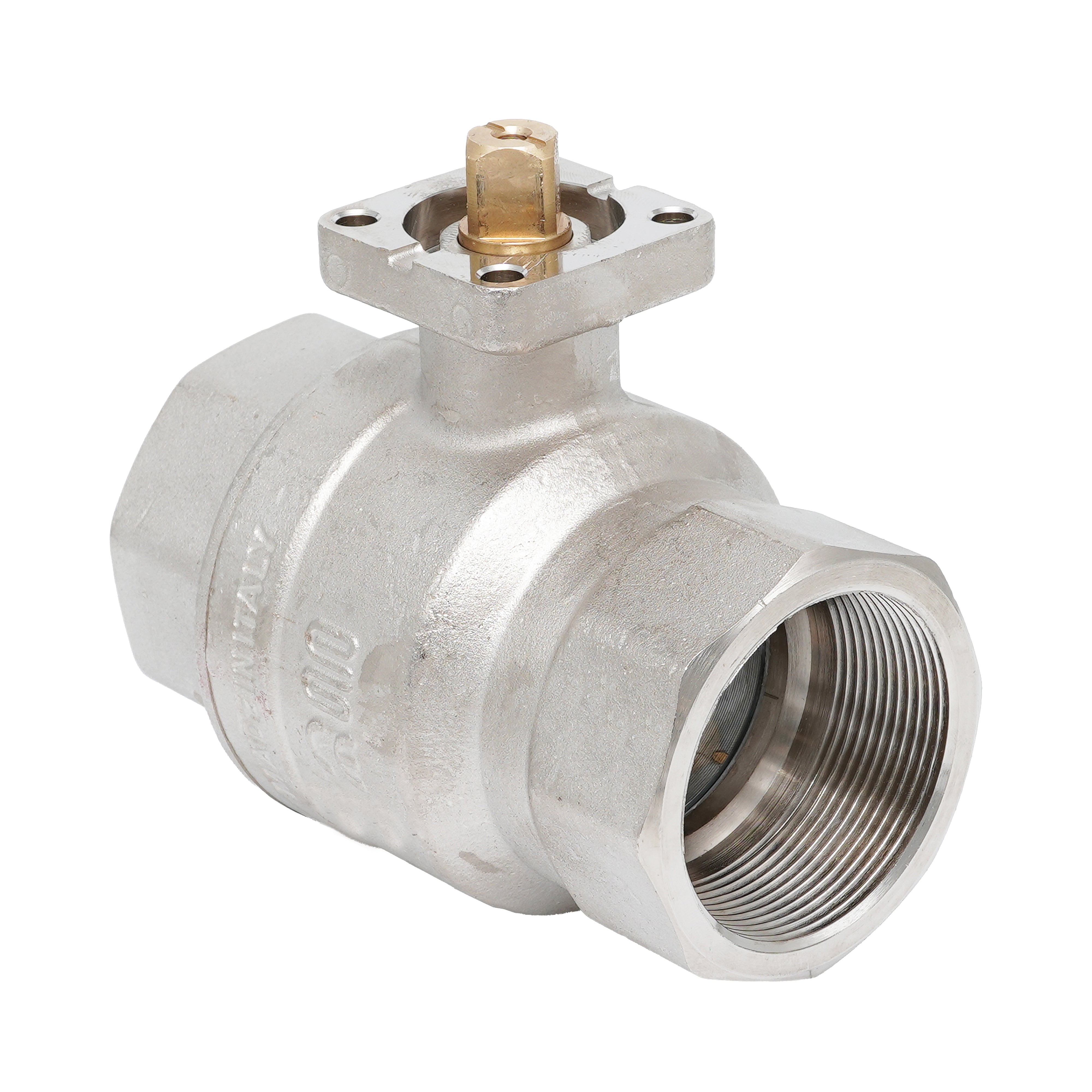

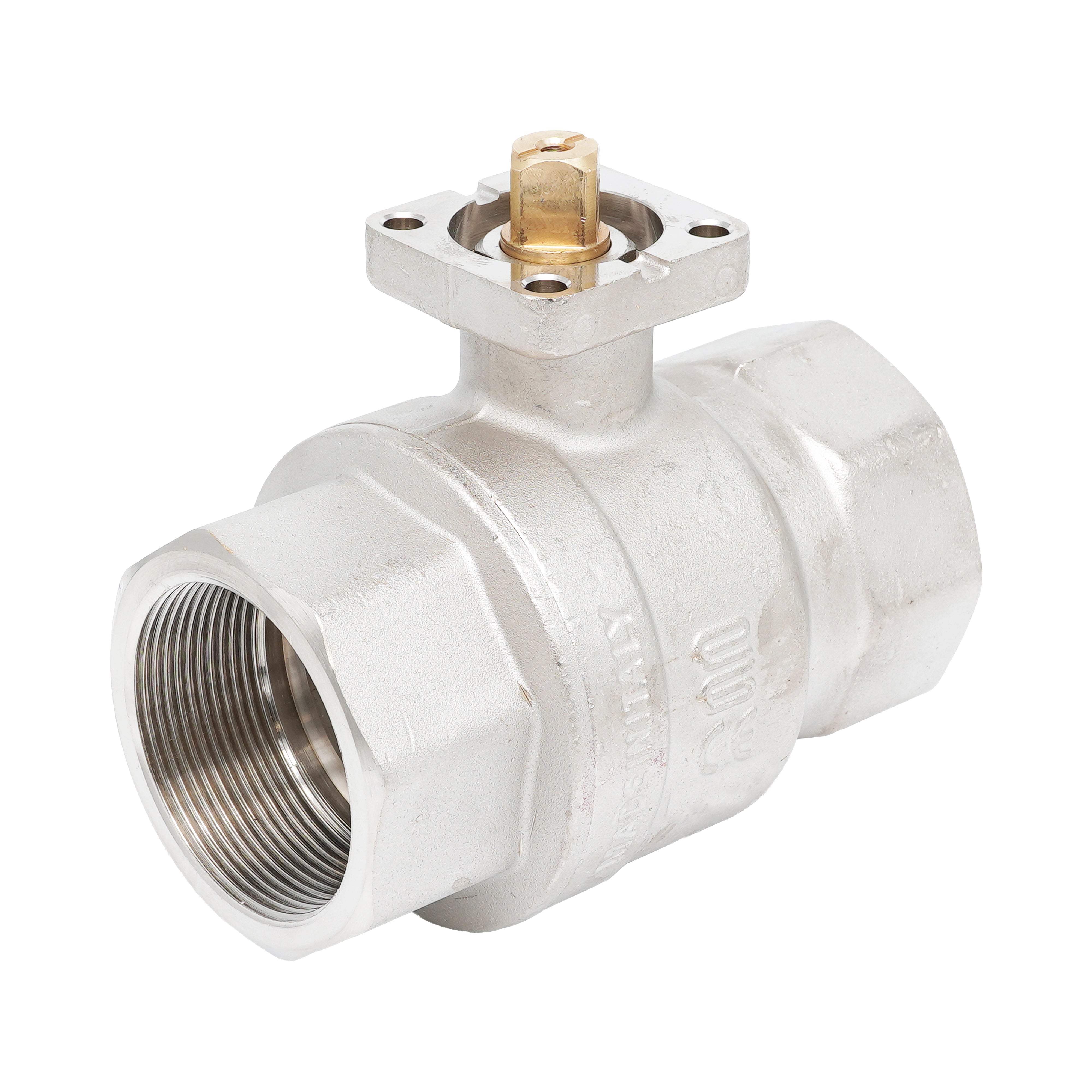

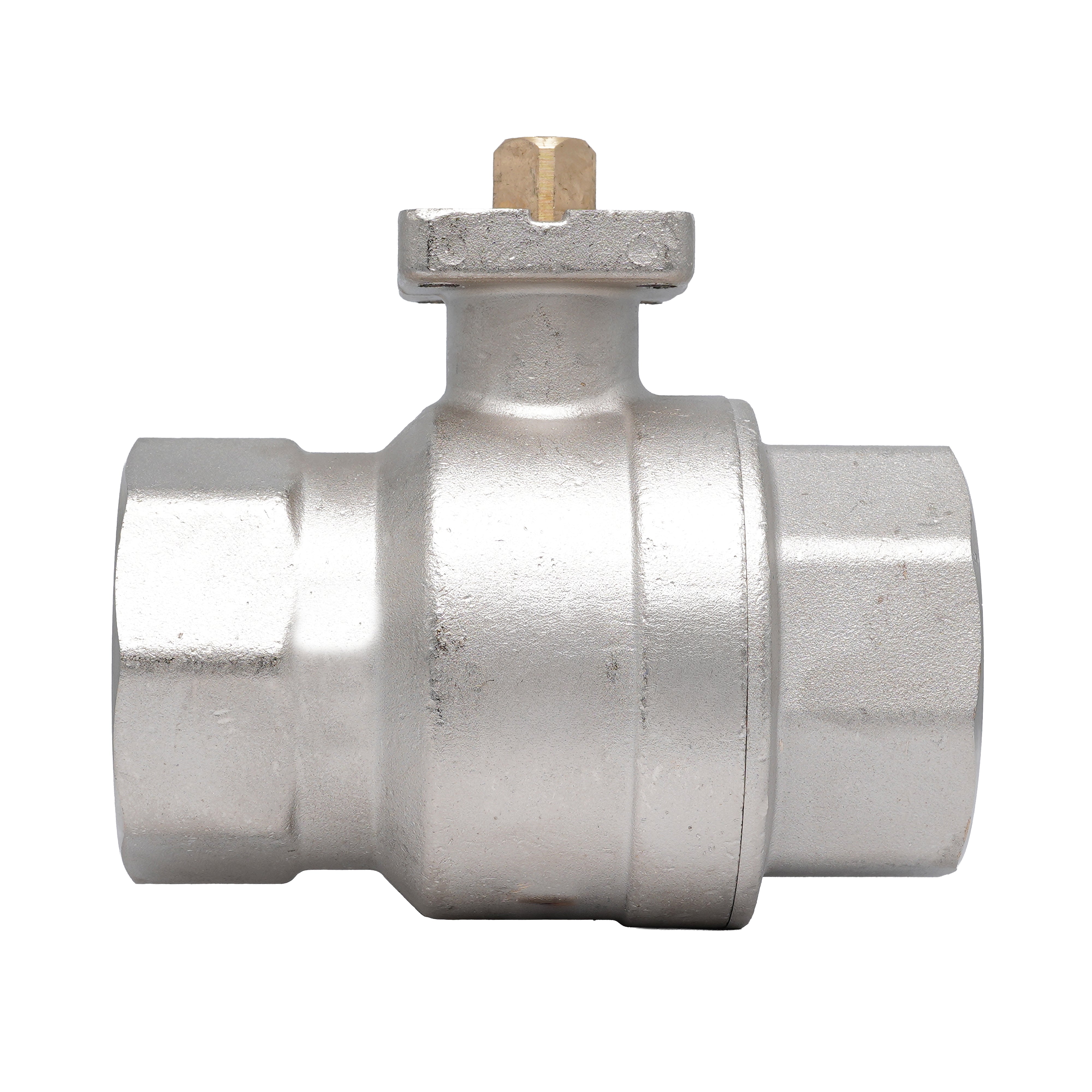

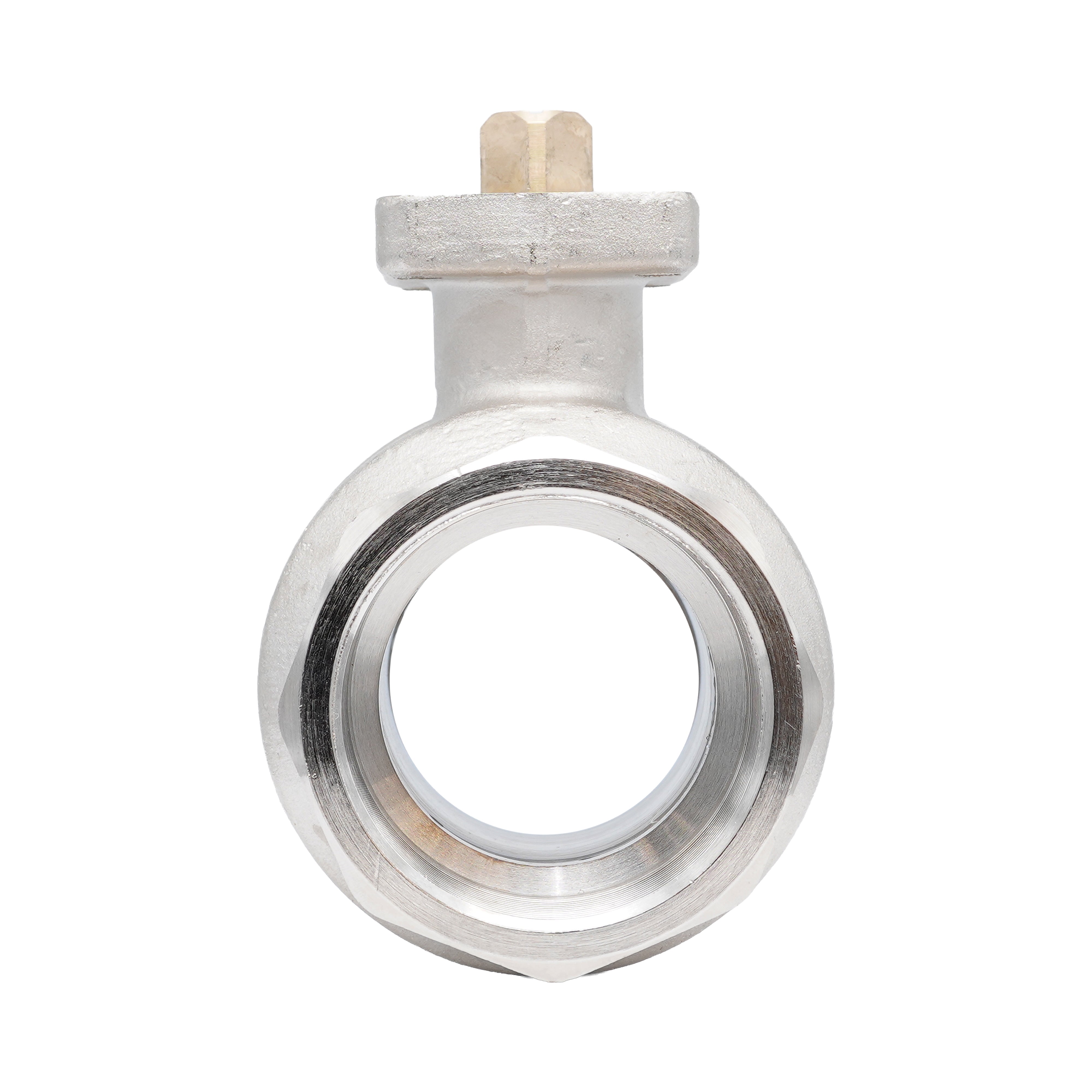

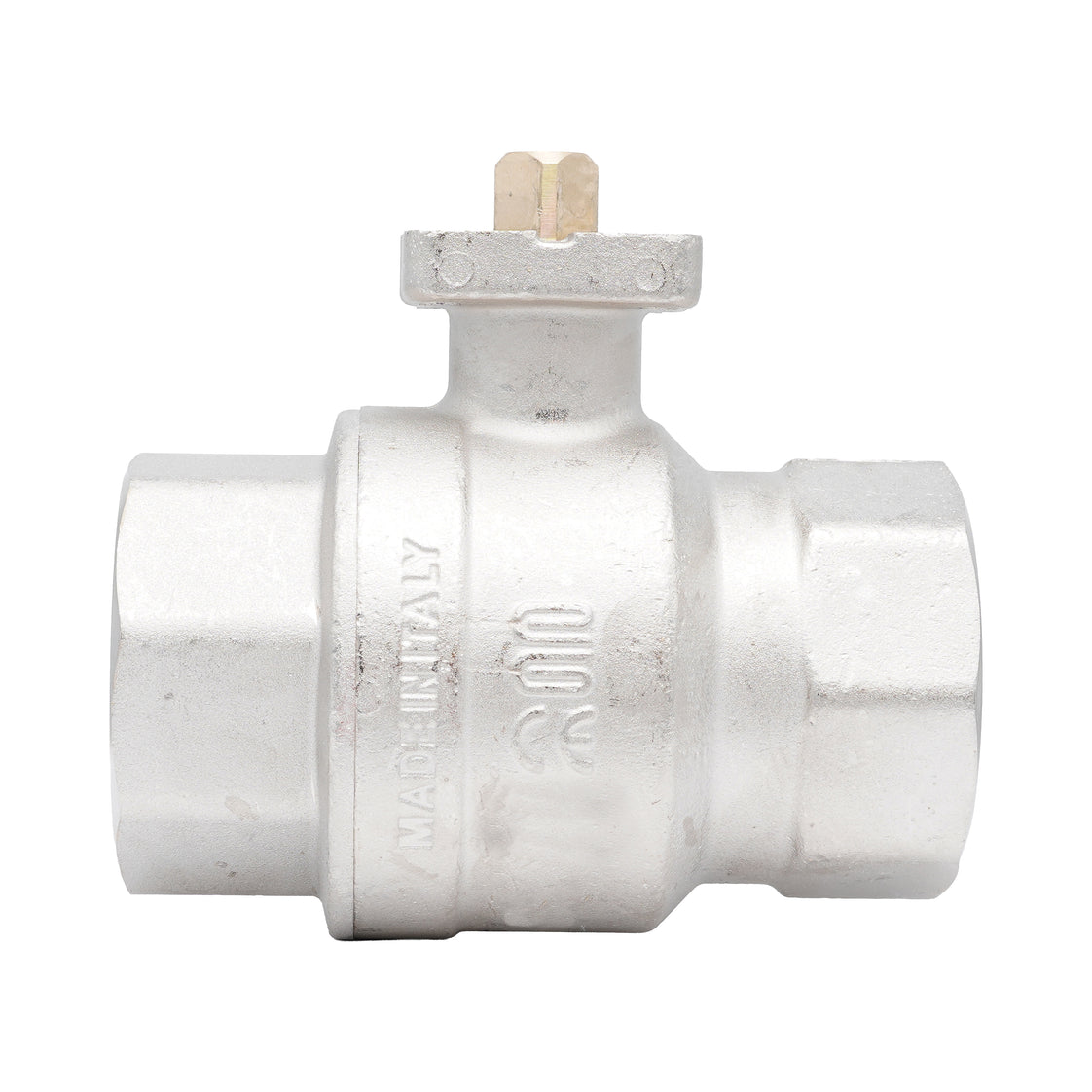

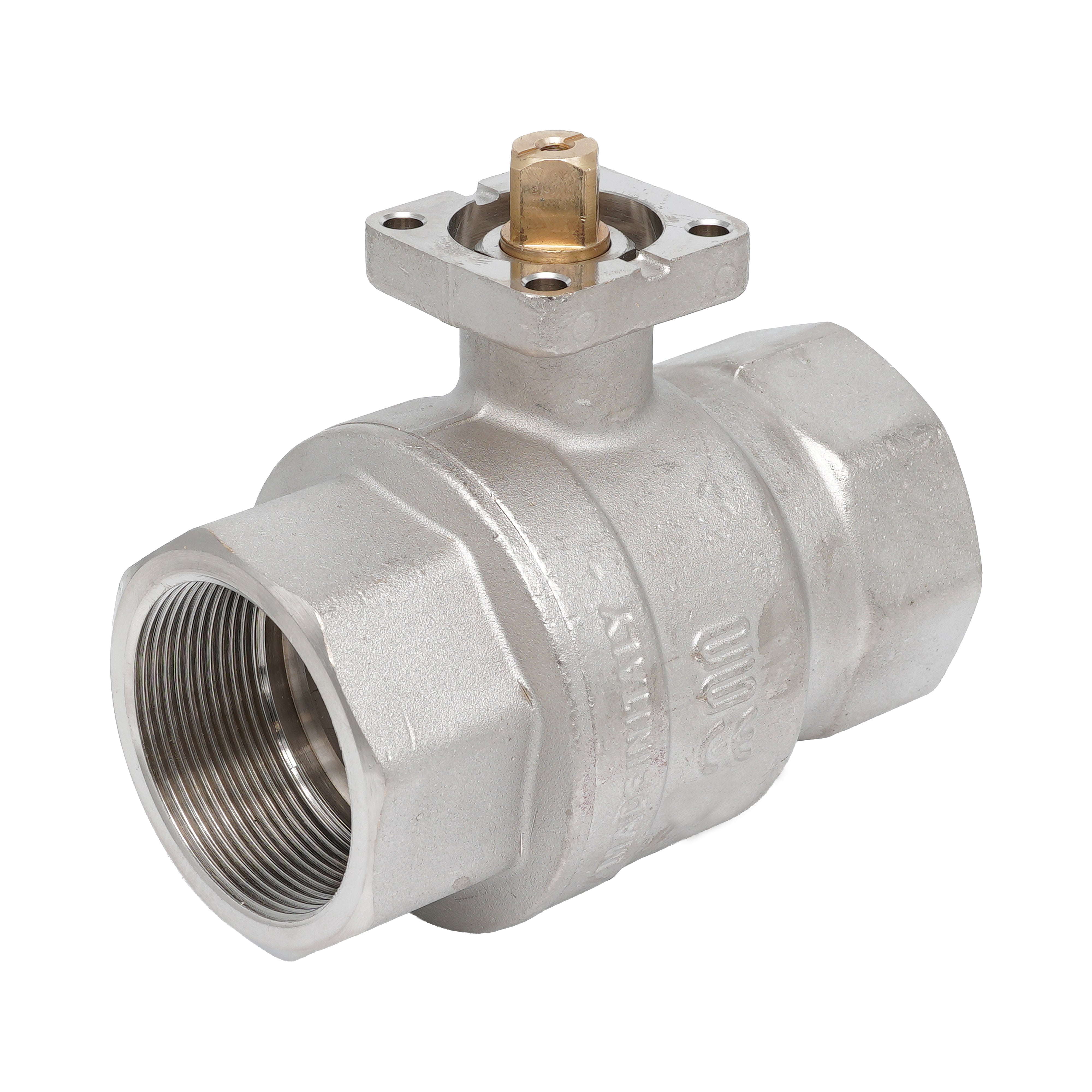

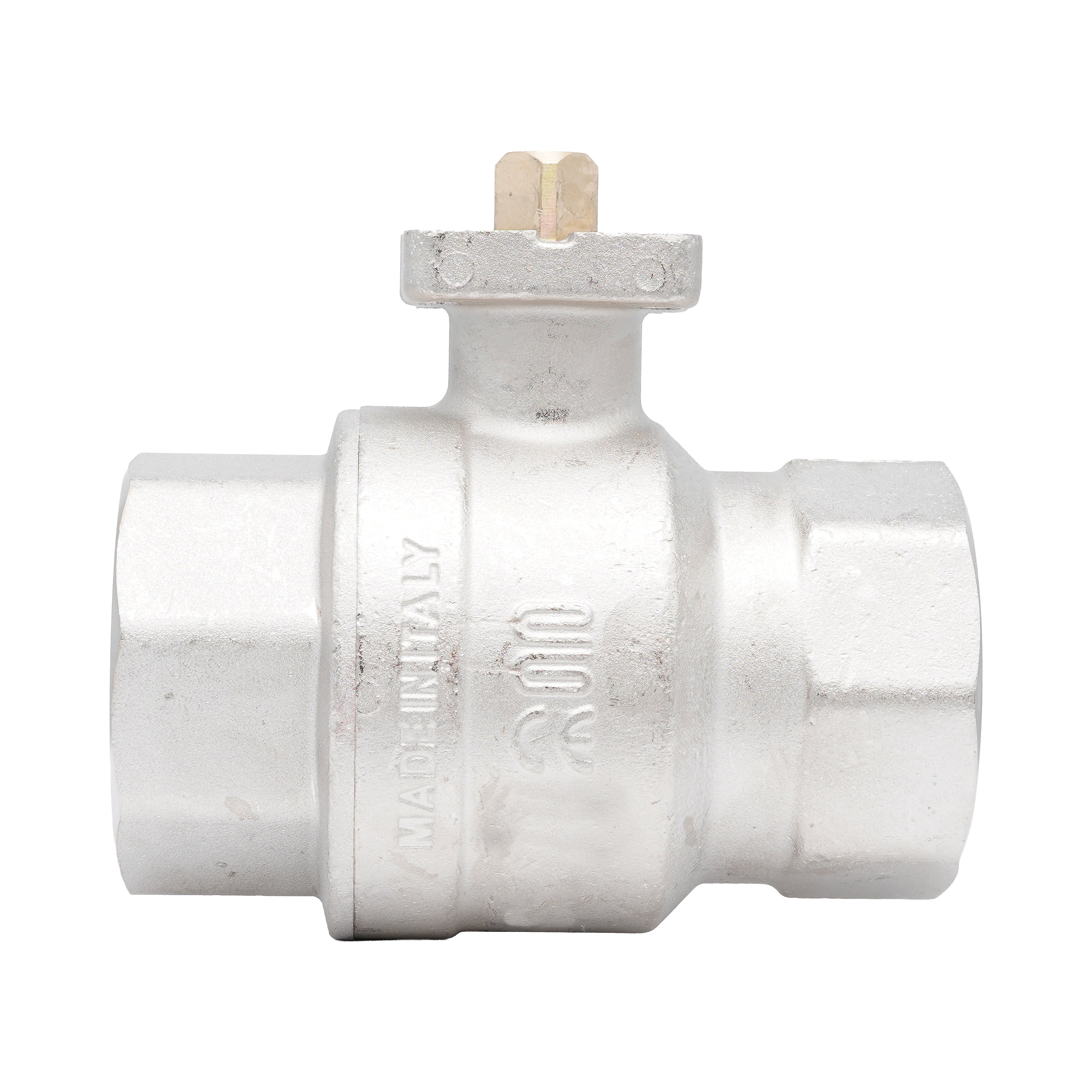

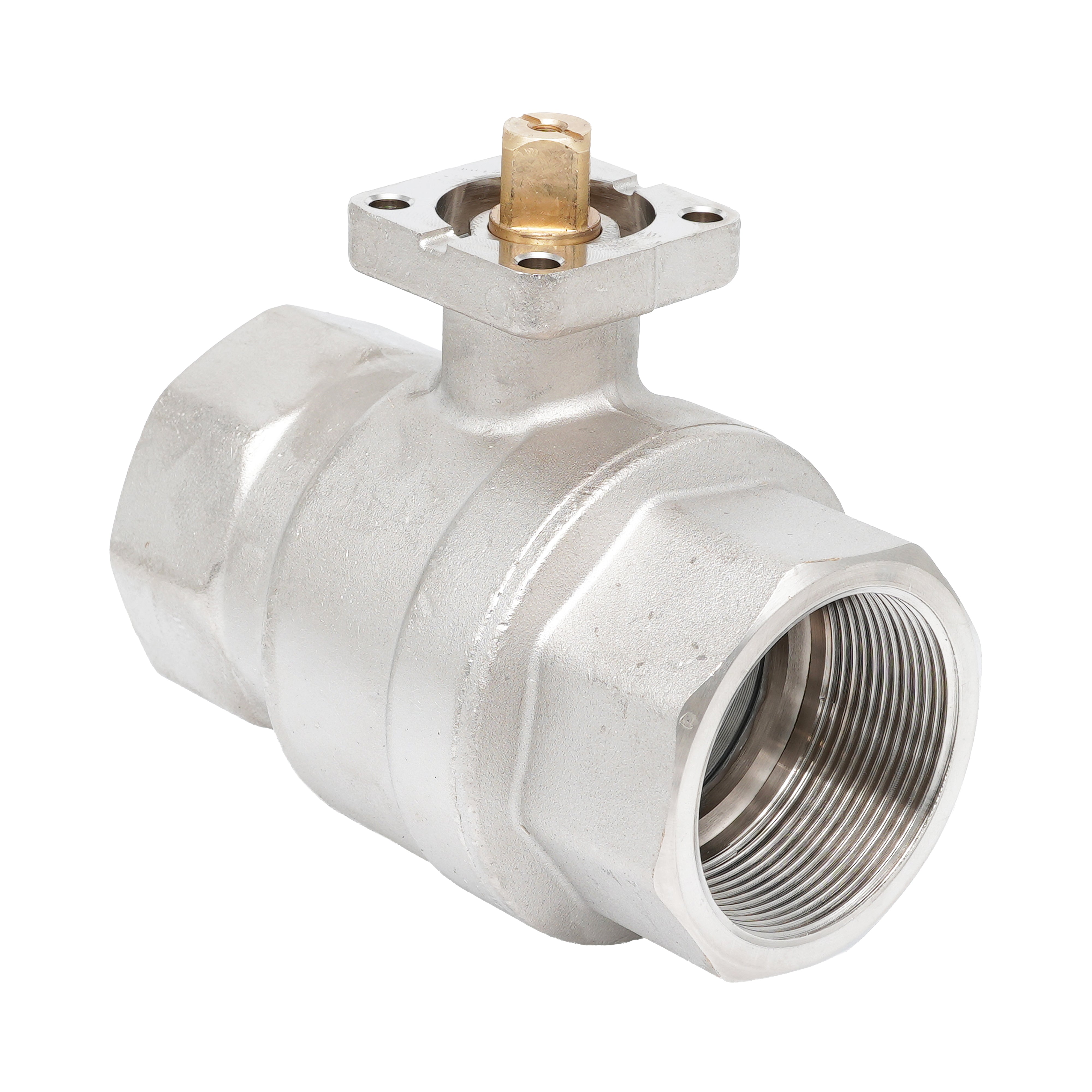

Rp 2-1/2" 2-way Brass Ball Valve ISO-Top F07 PN25
Image may vary slightly
See specifications for accurate information.
Reference:
V3M26
Brand:
TamesonPRO
Mfr. Part:
1141-212
Rp 2 1/2" BSP female 2-way brass ball valve, full bore, ISO 5211 F07 mounting flange. PTFE ball seal and stem seal - suitable for water, compressed air, oils, fuels, solvents, alcohols, lubricants, and gas. Rated to 25 bar at 20 °C, temperature range -20 to 130 °C (-4 to 266 °F).
- Regular price
- £286.61
excl VAT
Description
Specifications
Downloads
Related products
Description
This Rp 2 1/2" BSP female 2-way brass ball valve has a full-bore design. A Kv of 482 m³/h, which means the valve passes 482 m³/h of water at 1 bar pressure drop.
The ISO 5211 F07 mounting flange is a standardised interface for direct mounting of any compatible electric or pneumatic actuator. A quarter-turn of the actuator fully opens or closes the valve. The break torque at maximum pressure is 38 Nm - use this value when sizing a compatible actuator.
PTFE ball seal and stem seal make it suitable for water, compressed air, oils, fuels, solvents, alcohols, lubricants, and gas. Avoid use with strong acids, ammonia, or seawater. Rated to 25 bar at 20 °C, working temperature range -20 to 130 °C (-4 to 266 °F).
Pros:
- Full bore - low flow resistance.
- ISO 5211 F07 flange - direct actuator mounting.
- PTFE ball and stem seal - suitable for wide range of media.
Cons:
- Brass not suitable for strong acids, ammonia, or seawater - check stainless steel variants.
- The valve is supplied without the handle.
