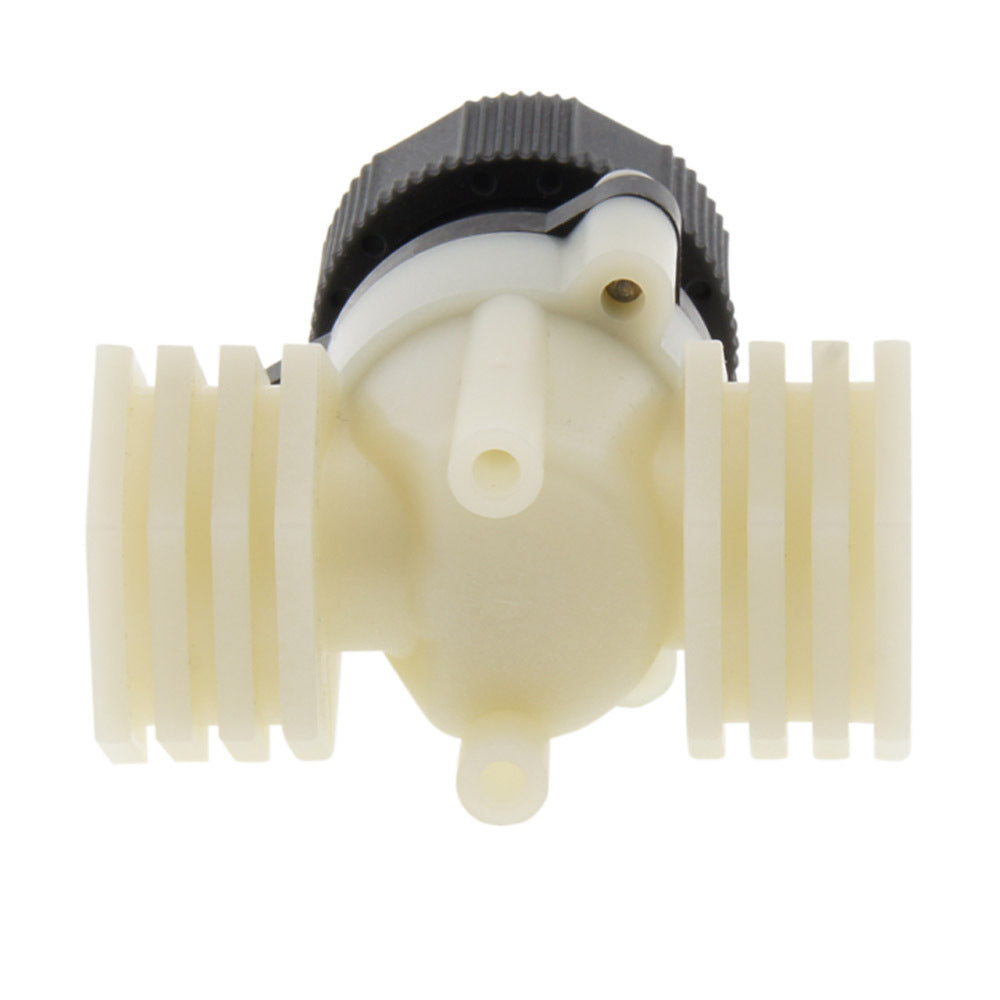

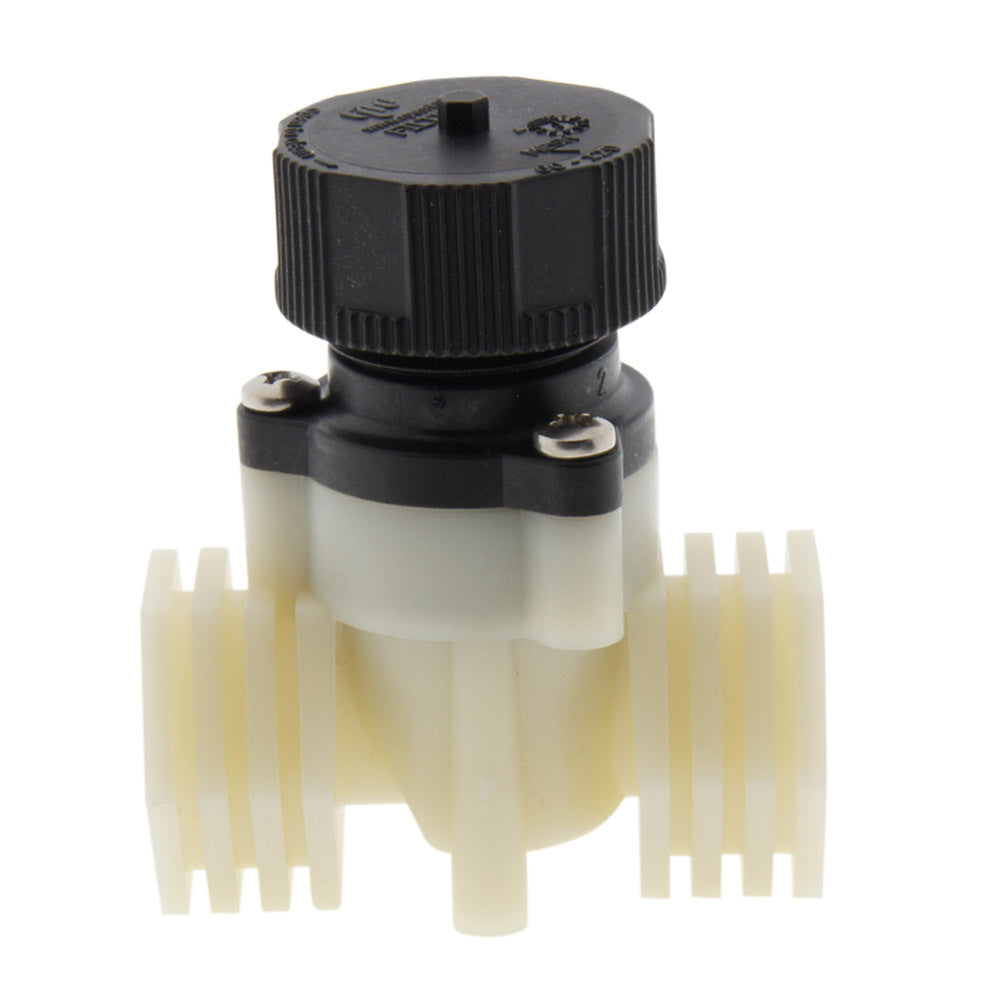

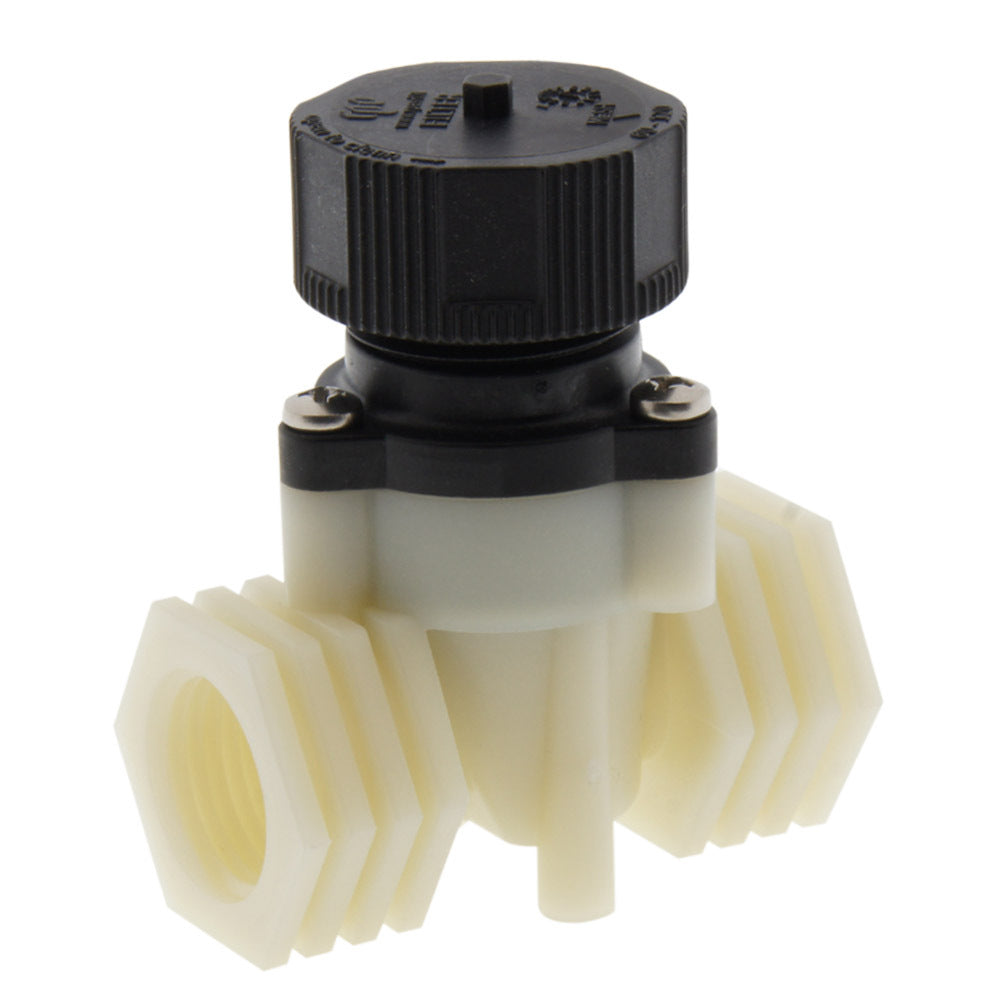

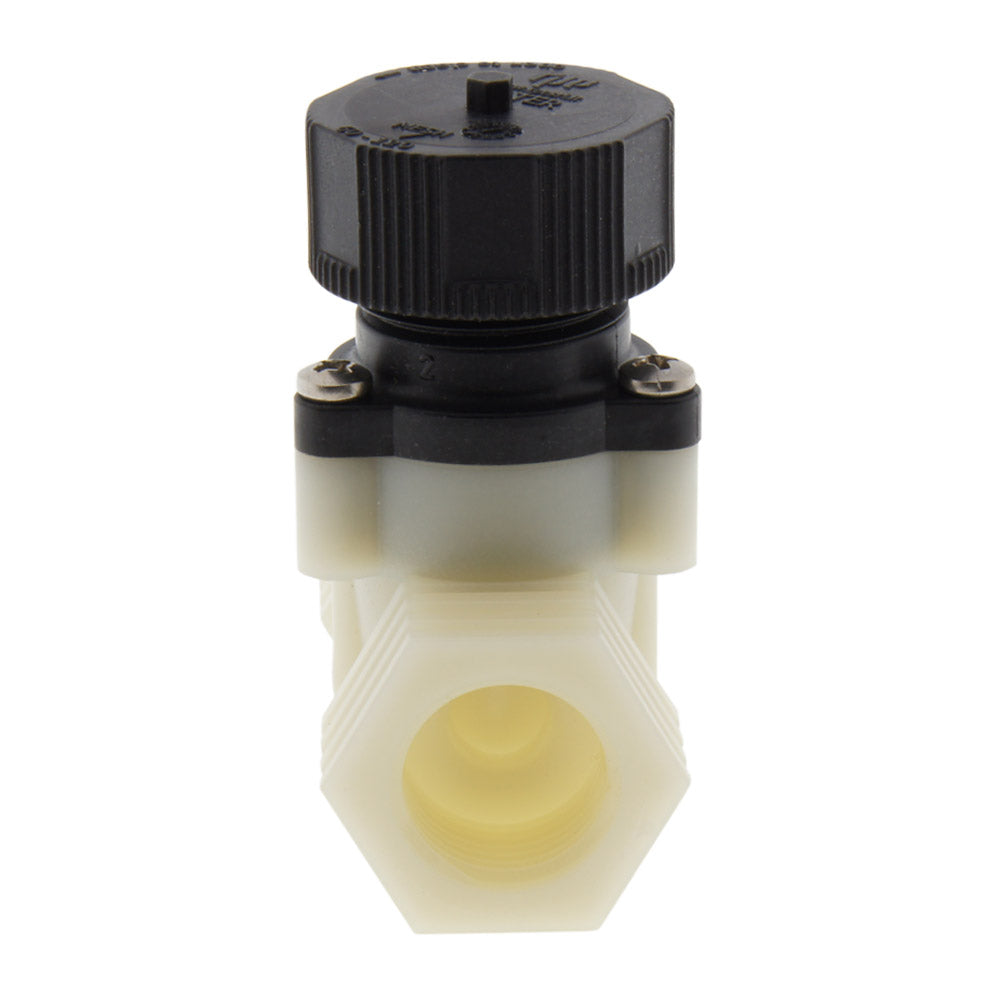

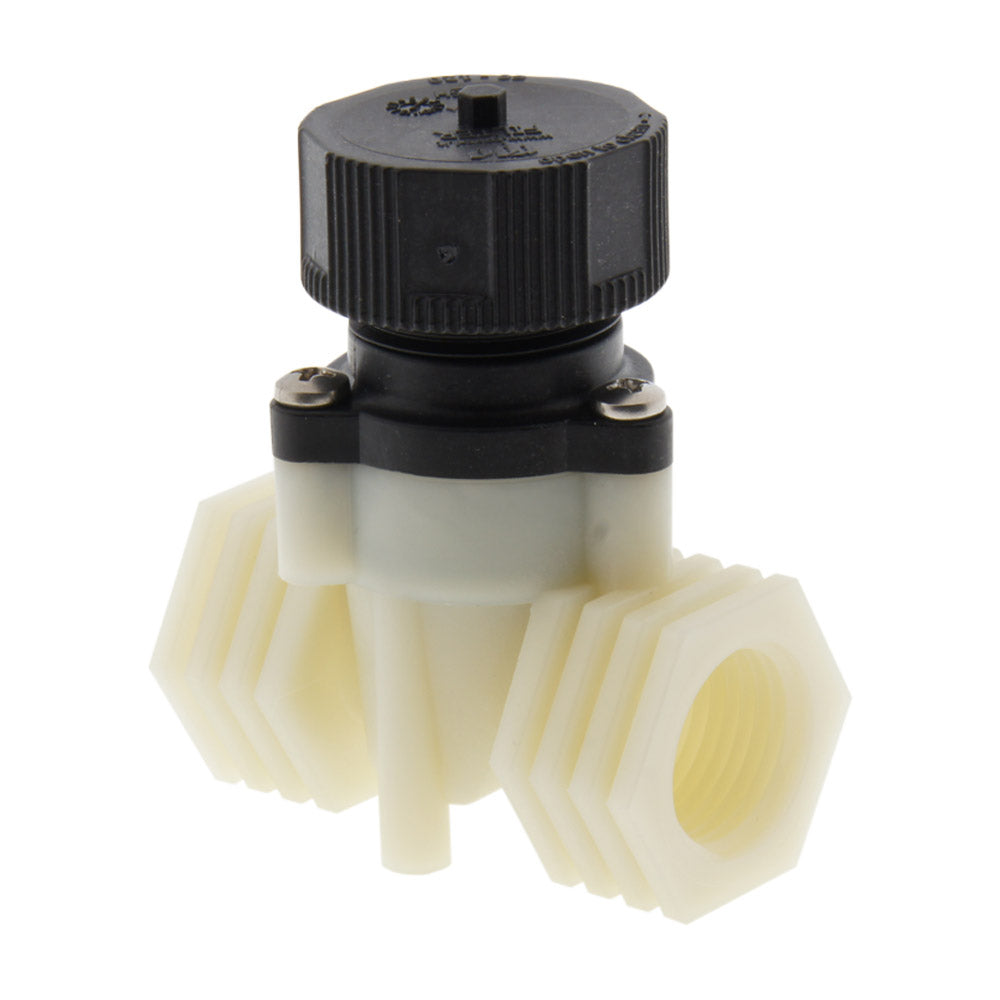

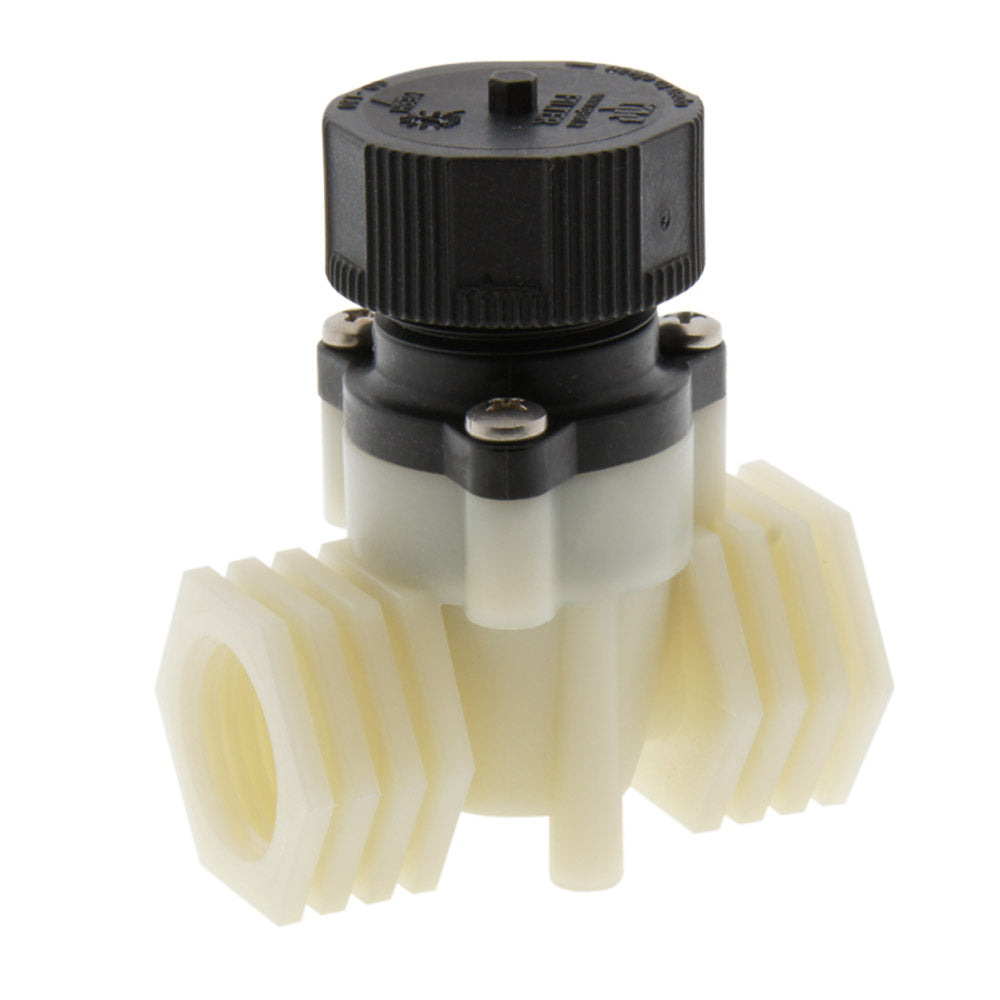

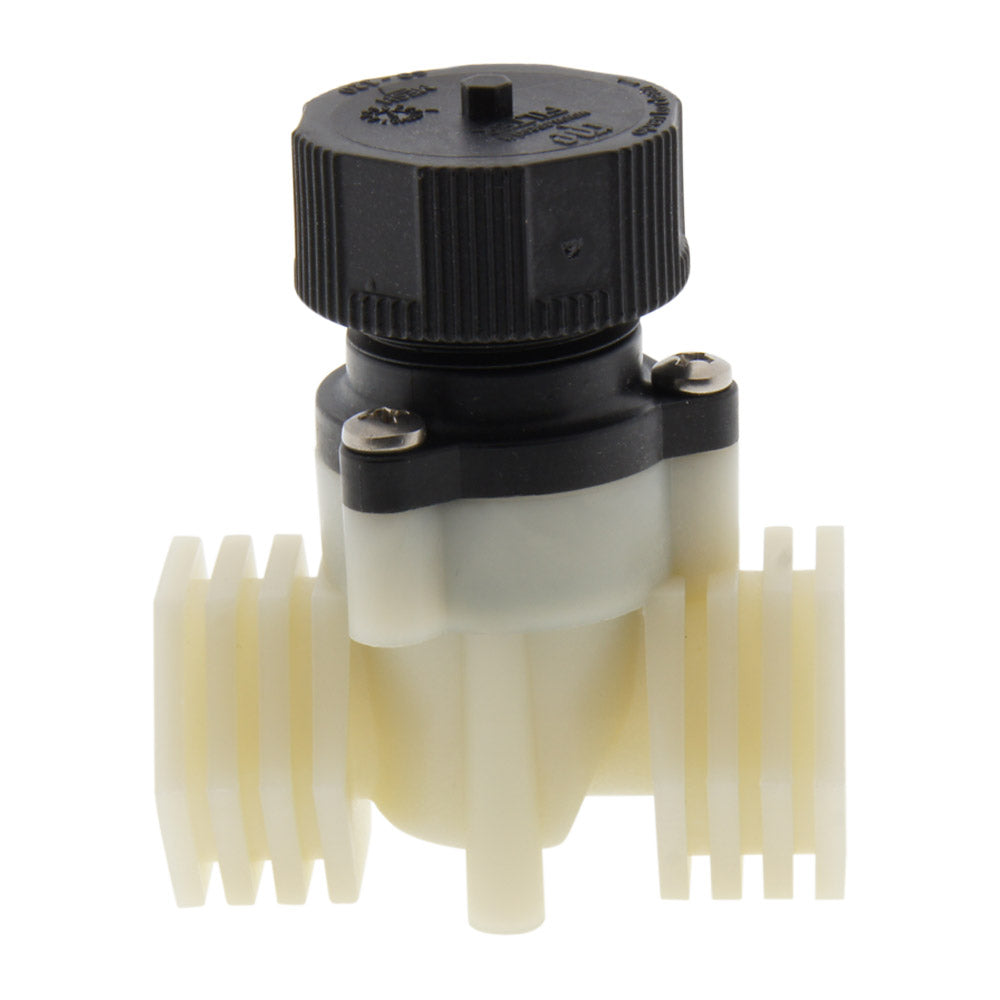

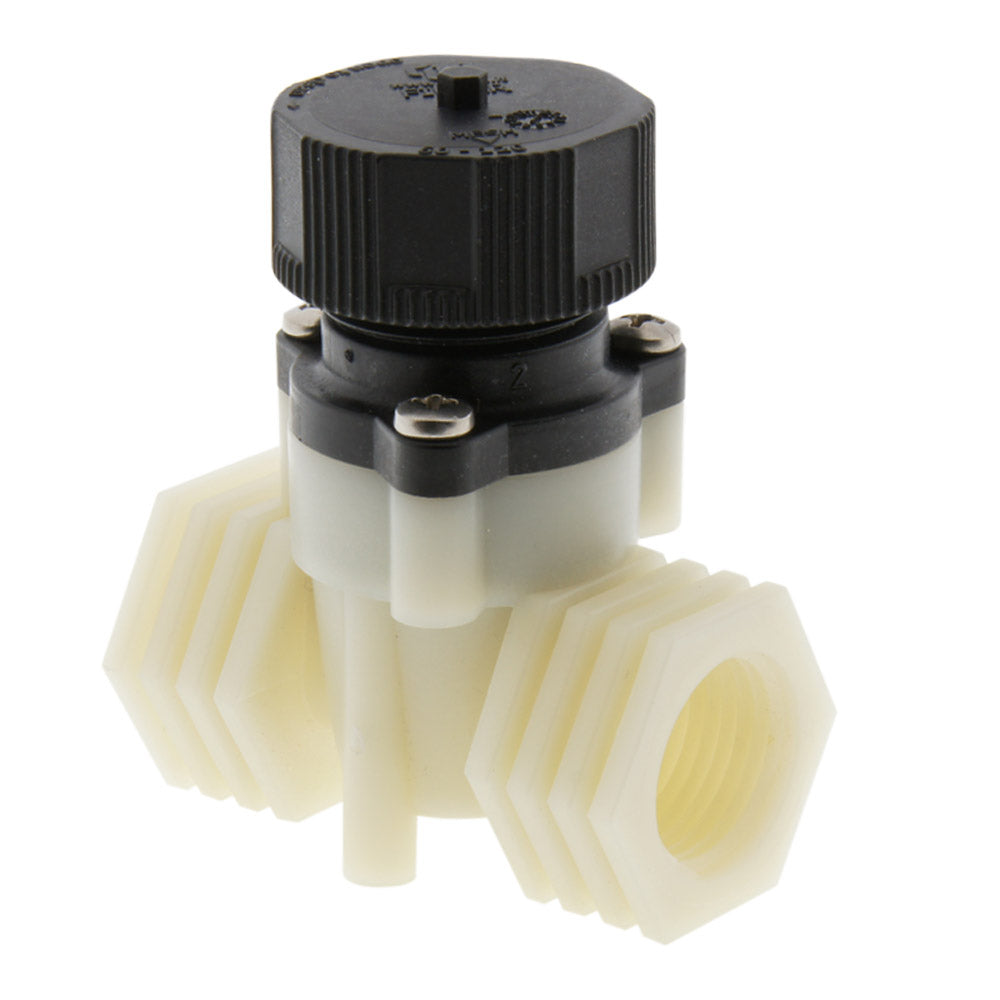

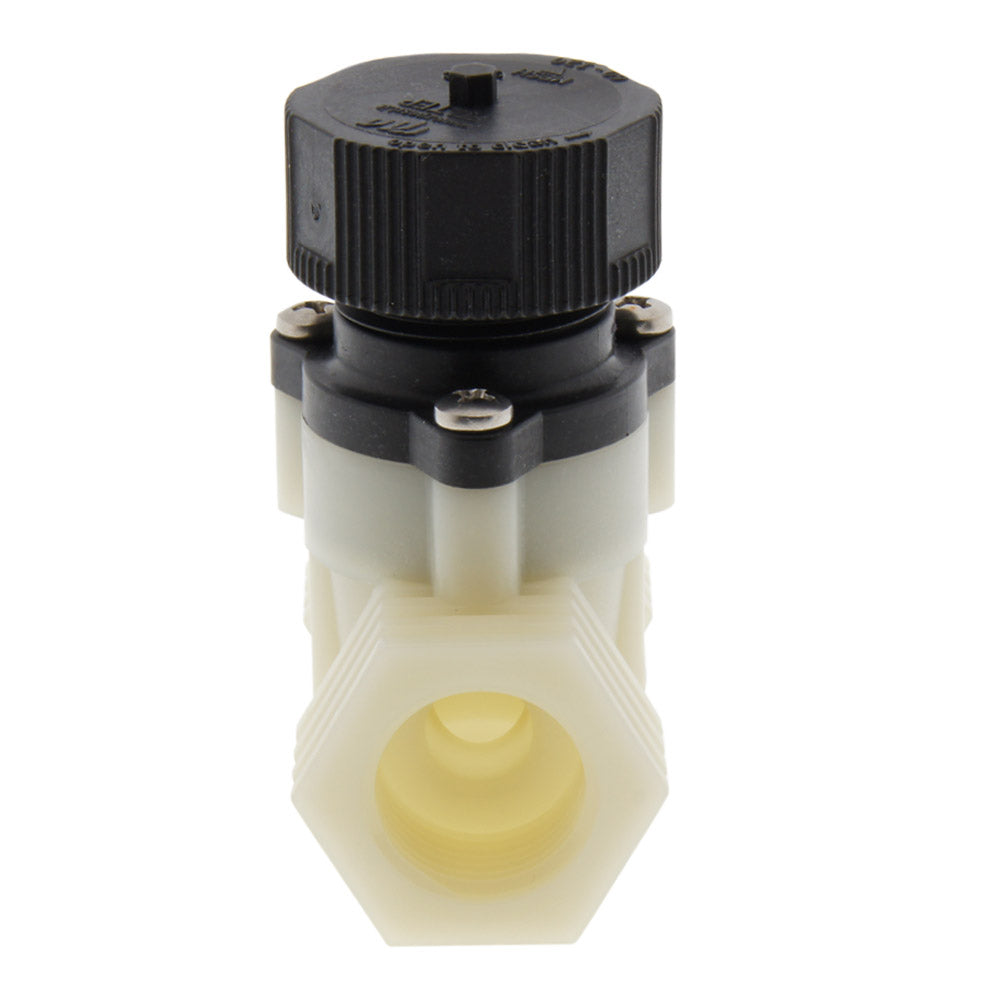

Filter nylon 10bar 125 micron 1/4''
Notice: This product is discontinued
Nylon particulate filter (brand RPE) with NBR seal, 1/4" female threads and 125µm mesh filter (stainless steel). For media from 0.0 up to 60°C and pressures from 0 up to 10 bar. Usable in both flow directions, very suitable in combination with solenoid valves.
Notice: This product is discontinued
Description
Nylon particulate filter (brand RPE) with 1/4" pipe connection and 125µm (120 mesh) filter (stainless steel). For media up to 60°C and pressures up to 10 bar. Can be used in both flow directions.
| Feature | Value |
| Port threads | G1/4 inch |
| Filter Housing | Nylon 66 FV30 |
| Filter mesh | 125µm (120 mesh, 0.125mm) |
| Environmental Temperature | max 25°C |
| Medium Temperature | max 60°C |
| Filter Material | Stainless Steel |
| O-ring | NBR |
| Orifice | 6.1mm |
| Flow Direction | Bi-directional |
| Operating Pressure | vacuum or pressure up to 10 bar |
Applications
Solenoid valves only operate well in combination with clean liquids or gases. Therefore it is recommended to install a filter before the solenoid valve. The filter can also be used for other applications. Some examples:
- Home appliances
- Industrial ovens
- Water dispensers
- Sanitary installations
- Irrigation systems
