G 3/8" PVC Gasket 17.2x21.2x2 mm [100 Pieces]

Notice: This product is discontinued

Discontinued
G 3/8" PVC Gasket 17.2x21.2x2 mm [100 Pieces]
G 3/8" PVC Gasket 17.2x21.2x2 mm [100 Pieces]
Image may vary slightly
See specifications for accurate information.
Reference: S2AEV-X100
Brand: Tameson

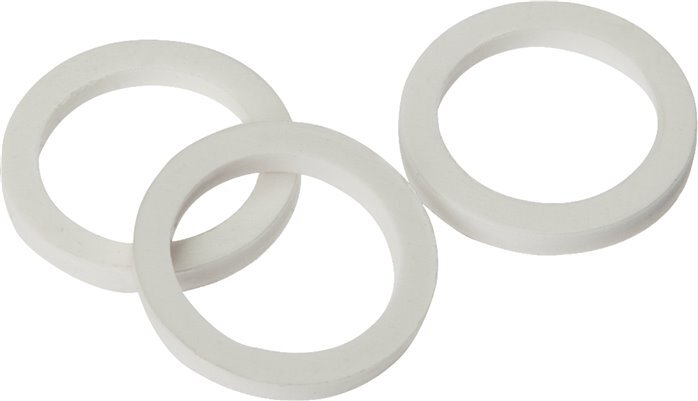

A gasket is used to seal cylindrical threads on a level sealing surface. This gasket is designed for G 3/8" threads. It has an internal diameter of 17.2 mm, an external diameter of 21.2 mm and 2 mm thickness. Hard PVC gaskets are used in many standard applications.

Contains 100 pieces

View all

Notice: This product is discontinued

Description
Specifications
Downloads
Related products

Description

A gasket is used to seal cylindrical threads on a level sealing surface. This gasket is designed for G 3/8" threads. It has an internal diameter of 17.2 mm, an external diameter of 21.2 mm and 2 mm thickness. Hard PVC gaskets are used in many standard applications.

Pros:

  • Suitable for temperatures from -10 to 70°C
  • Suitable for operating pressure from -0.95 to 16 bar
  • PVC is suitable for water, air, CO2, dilute acids and bases, oils, solvents, alcohols and lubricants

Downloads

Specifications

Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Plastic
Outer-diameter (mm)
Outer diameter of the component.
21.2
Shape
Flat
Inner diameter (mm)
Inner diameter of the component.
17.2
Thickness (mm)
Thickness of the component.
2
Pressure (bar)
-0.95 bar to 16 bar
Max temperature (°C)
The maximum temperature of the fluid at which the system can operate continuously.
70
Min temperature (°C)
The minimum temperature of the fluid at which the system can operate continuously.
-10
Material quality
Choose a housing material that will not corrode from the media and environment, and can withstand the application's temperature and pressure.
Polyvinyl chloride (PVC)
