Schneider Electric Acti 9 Circuit Breaker - A9N61511
Schneider Electric Acti 9 circuit breaker, tripping characteristic C, nom. (measuring) current 16A, voltage type DC, 1 poles (total), width in module units 1, ancillary device possible, connectable conductor cross-section duck 1 - 25mm², 1 protected poles, nom. (measuring) voltage 220V.
- Regular price
- £23.75
Description

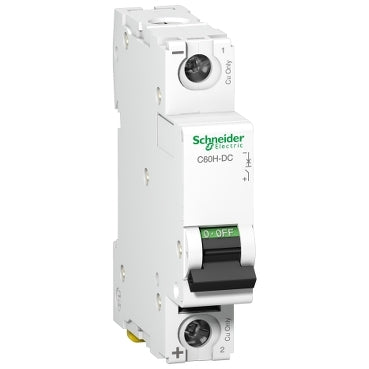

This Acti 9 C60H-DC is a low voltage circuit breaker. The product is equipped with 1P, has a nominal current of 16A and a C cut-off characteristic. The cut-off capacity at 110V DC is 20kA, at 220V DC it is 10kA and at 250V DC it is 6kA according to IEC 60947-2. It combines functions such as short circuit and overload protection, control and insulation.
VisiTrip ensures extra safety during maintenance and VisiSafe helps to shorten intervention time. It has a longer lifespan due to the high limits and the fast closing. Rapid opening of the contacts prevents the loads from being disturbed in the event of a short circuit.
This device is intended for industrial control, automation, transport and renewable energy applications.
