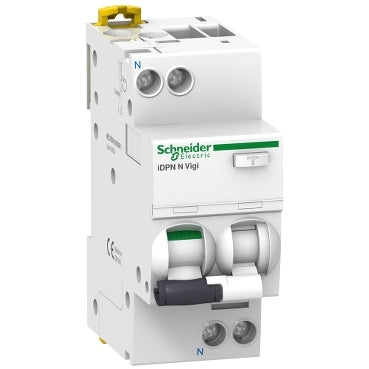

Schneider Electric Acti 9 Earth Leakage Circuit Breaker - A9D56604

Schneider Electric Acti 9 Earth Leakage Circuit Breaker - A9D56604
Image may vary slightly
See specifications for accurate information.
Reference: E33MX
Brand: Schneider Electric
Mfr. Part: A9D56604

This Acti 9 iDPN Vigi ground fault circuit breaker from Schneider Electric has 2 poles, 1 of which is protected (1p+n). Furthermore, the ground fault circuit breaker can be installed quickly and easily. The green strip on the rocker switch ensures that all poles can be opened under safe conditions (a padlock lock is possible) so that work can be done on live parts. In addition, the red indicator allows immediate identification of a ground fault. Using the test button, the proper functioning of the device can be verified.

View all
Regular price
£137.15
excl VAT

In stock Ships in 3d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 14 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 5 - 7 business days

Description
Specifications
Related products

This Acti9 iDPN Vigi is a modular residual current breaker with overcurrent protection (RCBO). It is a 1P+N circuit breaker with 1 protected pole, 4A In rated current and a B tripping curve. The earth leakage protection class is A type with a sensitivity of 30mA. The earth-leakage protection time delay is instantaneous.

The Icn rated short circuit breaking capacity is up to 6000A according to the EN/IEC 61009-2-1 standard. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. Its earth fault indicator on the front face allows quick identification of the type of default. A green strip on the toggle guarantees the opening of all the poles in safety conditions. This product is compliant with the EN/IEC 61009-2-1 standard.

It has an electrical endurance going up to 20000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 220VAC to 240VAC. The Ui rated insulation voltage is 400VAC. The Uimp rated impulse withstand voltage is 4kV. The frequency is 50Hz. It is DIN rail mountable. The width in 9mm pitches is 4. The product color is white (RAL9003).

The dimensions are (W) 36mm x (H) 85mm x (D) 73mm. The weight is 125g. It has an IP20 degree of protection (as per the IEC/EN 60529 standard) and becomes IP40 once in a modular enclosure. The operating temperature is from -25°C to 60°C. The storage temperature is from -40°C to 85°C.
