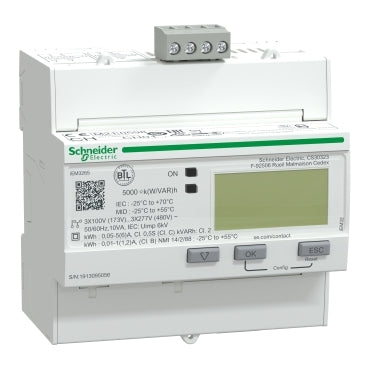

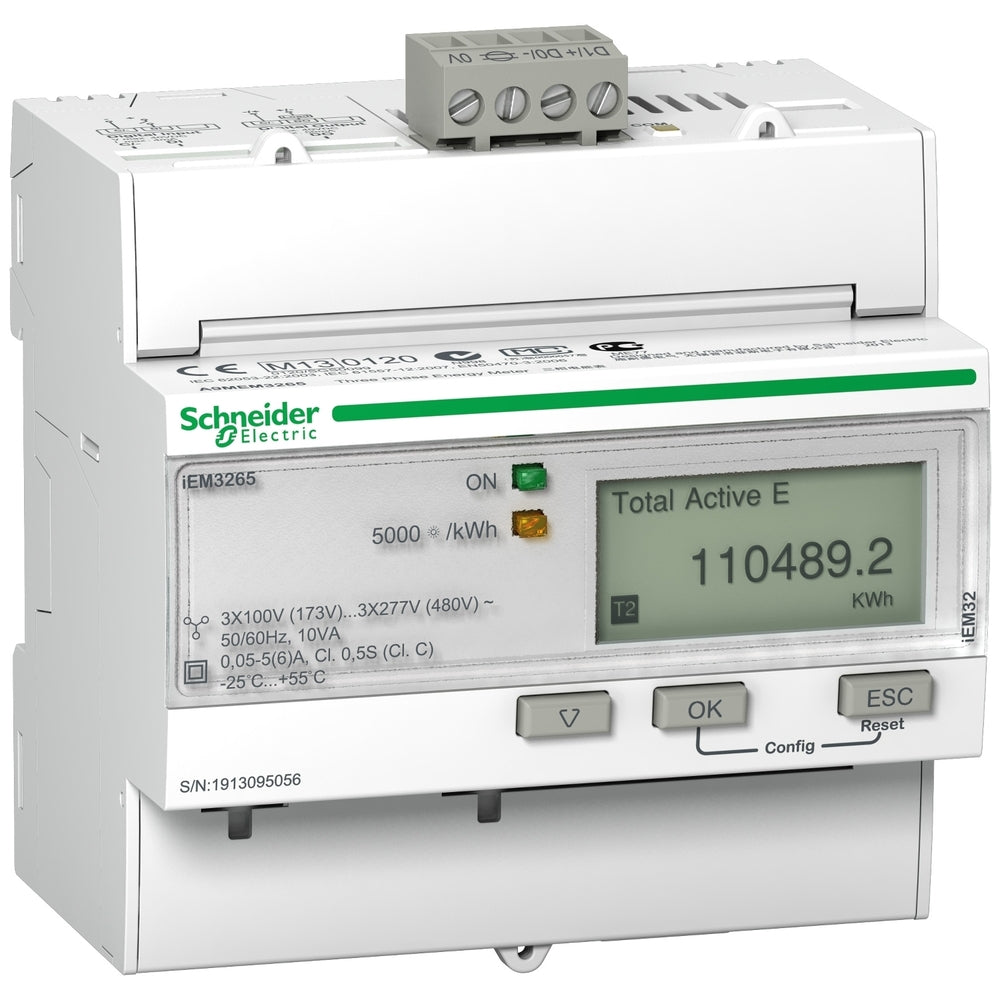

Schneider Electric Acti 9 Electricity Meter - A9MEM3265
Schneider electric 3-phase lcd energy meter with pulse output, 69mm depth, 63a measurement current - acti 9 iem3000 series - a9mem3265. Use this robust meter from schneider electric to track energy consumption in your electrical systems. It takes precise readings of voltage, current and power to let you manage your usage and costs. Compact dimensions of 95 (height) x 90 (width) x 69mm make this meter suitable for use in enclosures with limited space.
- Regular price
- £293.64
Description
The Acti9 iEM3000 series energy meters are a compelling range of three-phase DIN rail-mounted energy meters featuring an LCD display. Enhanced local signaling includes a green LED power-on indicator, a flashing yellow LED for accuracy checking, an overload alarm, and communication indicators.
This meter is suitable for sub-billing applications and supports four tariff schedules. The meter offers the following accuracy classes:
- Active Energy class 0.5S as per IEC 62053-22
- Active Energy class C as per EN 50470-3
- Active Energy class 0.5S as per IEC 61557-12
It measures Active and Reactive Power, Active and Reactive Energy, Voltage, and Current, featuring four quadrant Energy measurement. Designed for 50Hz or 60Hz networks, its supply voltage ranges from 100 to 277VAC or 173 to 480VAC.
The rated current passes through a 1A or 5A transformer for measurement in this meter and supports Single Phase and Neutral, Three Phase, and Three Phase and Neutral configurations. The communication protocol is BACnet with screw terminal support.
The meter has one programmable digital input and one programmable digital output that can be used as a pulsed output. It holds EAC, CE, UL, and MID certifications.
The dimensions of the product are: width 3.54 in (90 mm), depth 2.72in (69 mm), and height 3.74 in (95 mm). It weighs 9.17 oz (260 g).
