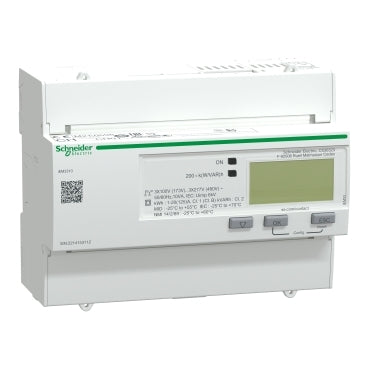

Schneider Electric Acti 9 Electricity Meter - A9MEM3310
Schneider electric iem3000 series energy meter. The acti 9 iem3000 series energy meters is a cost-attractive, feature-rich energy metering offer for din rail, modular enclosures. More than just kwh meters, the acti 9 iem3000 series meters provide a full view of both energy consumption and on-site generation with full four-quadrant measurement of active and reactive energy delivered and received.
- Regular price
- £246.65
Description
The Acti9 iEM3000 series energy meters present a compelling series of three-phase DIN rail-mounted energy meters with an LCD display. They provide additional local signaling, including a green LED power-on indicator, a flashing yellow LED for accuracy checking, and communication indicators. This meter serves well in sub-billing and partial metering applications.
The meter guarantees the following accuracy classes:
- Active Energy: class 1 as per IEC 62053-21
- Active Energy: class B as per EN 50470-3
- Active Energy: class 1 as per IEC 61557-12
The meter is capable of measuring Active and Reactive Power, as well as Active and Reactive Energy. It is designed for 50Hz or 60Hz networks with a supply voltage range from 100 to 277VAC or 173 to 480VAC. The line rated current for this meter is up to 125A via direct connection and supports Single Phase and Neutral, Three Phase, and Three Phase and Neutral configurations. It does not have primary communication ports. There is one digital pulsed output for energy reading.
It holds certifications from EAC, CE, UL, and MID.
The product dimensions are as follows:
- width 4.96 inches (126 mm)
- depth 2.72 inches (69 mm)
- height 4.1 inches (103 mm)
and the product weight is 9.17 oz (260 g).
