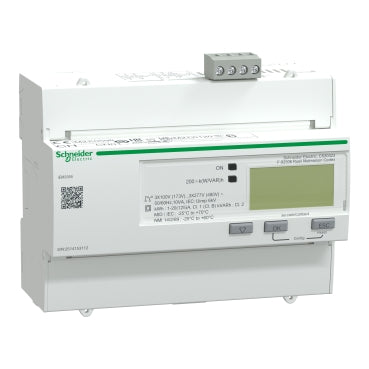

Schneider Electric Acti 9 Electricity Meter - A9MEM3355
Schneider electric iem3000 series energy meter. The acti 9 iem3000 series energy meters is a cost-attractive, feature-rich energy metering offer for din rail, modular enclosures. More than just kwh meters, the acti 9 iem3000 series meters provide a full view of both energy consumption and on-site generation with full four-quadrant measurement of active and reactive energy delivered and received.
- Regular price
- £300.45
Description
The Acti9 iEM3000 series energy meters are an appealing range of three-phase DIN rail-mounted energy meters with an LCD display. They offer local signaling that includes a green LED power-on indicator, a flashing yellow LED for accuracy checking, an overload alarm, and communication indicators. This meter is ideal for sub-billing applications and supports four tariff schedules. The meter provides accuracy classes for Active Energy as per IEC 62053-21, EN 50470-3, and IEC 61557-12 standards. It measures Active and Reactive Power, Active and Reactive Energy, Voltage, and Current and supports four quadrant Energy measurement.
The meter is designed for 50Hz or 60Hz networks. It can accommodate a supply voltage range from 100 to 277VAC or 173 to 480VAC. The line rated current for this meter extends up to 125A via direct connect and it supports Single Phase and Neutral, Three Phase, and Three Phase and Neutral configurations. The communication protocol is Modbus with screw terminal support. It also features one programmable digital input and one programmable digital output that can be used as a pulsed output. The meter boasts certifications from EAC, CE, UL, and MID.
The product dimensions are as follows:
- Width 4.96 inches (126 mm)
- Depth 2.72 inches (69 mm)
- Height 4.1 inches (103 mm)
And the product weight is 9.17 oz (260 g). It is compatible with power management software to fully utilize IoT digital power installation.
