Schneider Electric Acti 9 Residual Current Device - A9R35263
Schneider Electric Acti 9 earth leakage circuit breaker 1, type leakage current A, selective protection, nom. (measuring) current 63A, DIN rail, rated fault current 300A, nom. (measuring) voltage 230V, short-circuit resistance (Icw) 1.5kA, momentary-delay type, connectable conductor cross-section duck 1 - 35mm².
- Regular price
- £266.92
Description

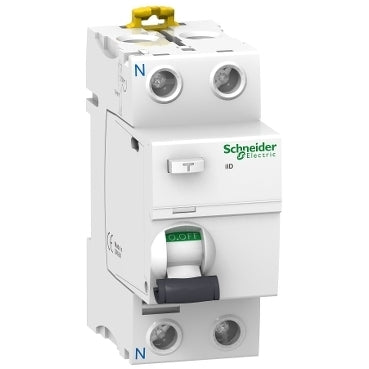

This Acti9 iID is a modular and reliable residual current circuit breaker (RCCB). It is a 2P circuit breaker with a rated current of 63A, earth leakage sensitivity of 300mA, and A-SI type protection class. This product protects against electrical shock from indirect contact and fire hazards, performing the function of disconnecting electrical circuits in case of an earth fault. Its unique Visitrip indicator reduces intervention time by showing the faulty device with a mechanical indicator on its front face.
This product also features a VisiSafe window with a green strip on the toggle, indicating a full opening of the poles and allowing downstream maintenance. This product complies with the EN/IEC 61008-1 standard. The rated breaking and making short circuit capacity (Im/IΔm) is 1500A, and conditional rated short circuit current (Inc/IΔc) is 10kA. The circuit breaker has an electrical endurance of up to 15000 cycles and a mechanical endurance of up to 20000 cycles.
The operational voltage (Ue) ranges from 220VAC to 240VAC. The rated insulation voltage (Ui) is 500VAC, and the rated impulse withstand voltage (Uimp) is 6kV. The frequency is 50Hz or 60Hz. This product is DIN rail-mountable. It is white (RAL9003) and has dimensions of (W) 36mm x (H) 91mm x (D) 73.5mm, with a weight of 0.21kg.
According to the IEC 60529 standard, the degree of protection is IP20 and IP40 in an enclosure. The operating temperature ranges from -25°C to 60°C, and the storage temperature ranges from -40°C to 85°C.
