Schneider Electric Auxiliary Contact Block - A9A26927
Notice: This product will be discontinued in the future
Schneider electric | acti 9 a9a series | auxiliary contact. Are you looking to add an additional auxiliary contact to your control circuit, to provide further safety? schneider electric offers the latest in auxiliary contact components and technology. Specifically, the acti 9 series of auxiliary contactor brings reliability to your circuit by acting as a secondary switching device working in conjunction with other primary devices such as contactors, relays or circuit breakers.
Notice: This product will be discontinued in the future
Description

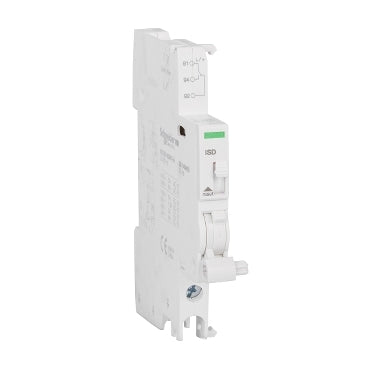

This Acti9 iSD electric auxiliary is a remote fault indicator contact. It is dedicated to iC60, iC40, iCV40, iID, iID40, iDPN Vigi, iSW-NA, iC60 and iID products. It comes with one changeover contact indicating the position of the associated device. It indicates the position of the associated device in case of an electrical fault or action on the tripping auxiliary. There is a mechanical state indicator and a test function button on the front face.
The Ue rated operational voltage ranges from 24VAC to 415VAC or 24VDC to 130VDC. The operating frequency is either 50Hz or 60Hz. The Ie rated operational current is 6A under 24VDC, 2A under 48VDC, 1.5A under 60VDC, 1A under 130VDC. The Ie rated operational current is also 6A under 24VAC to 240VAC, and 3A under 415VAC. The width in 9mm pitches is 1. The product color is white (RAL9003).
The dimensions are 9mm (W) x 86mm (H) x 73mm (D). The product weight is 33g. It offers a degree of protection of IP20 at terminals and IP40 in the enclosure. The operating temperature ranges from -35°C to +70°C. The storage temperature ranges from -40°C to +85°C. This product complies with the EN/IEC 60947-5-1 standard.
