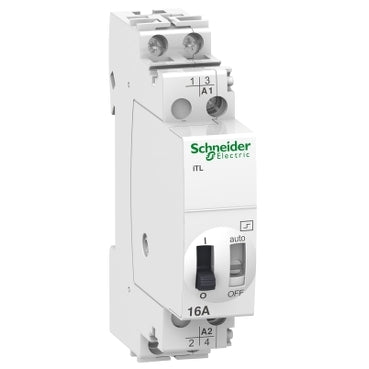

Schneider Electric Bistable Relay - A9C30112
Acti9 itl impulse relays. Itl impulse relays are used to control by pushbuttons lighting circuits consisting of incandescent lamps, low-voltage halogen lamps, fluorescent lamps and discharge lamps. Closing of the impulse relay pole is triggered by an impulse on the coil. Having two stable mechanical positions, the pole will be opened by the next impulse. Can be controlled by an unlimited number of pushbuttons. Zero energy consumption.
- Regular price
- £39.59
Description
This Acti 9 iTL is a modular and reliable impulse switch. This 2-pole device has 2 NO contacts. The nominal current is 16A, with an operating voltage of 24V AC to 250V AC and it works with 24V AC or 12V DC control voltage. The electrical durability is guaranteed up to 200,000 cycles AC-21 or 100,000 cycles AC-22.
The maximum switching frequency is 5 switching movements per minute or 100 switching movements per day. The duration of the command should be between 50 ms and 1s. The degree of protection is IP20 and becomes IP40 when this product is placed in a housing. It is easy to mount on a DIN rail.
It is primarily used for light control applications. This product complies with IEC/EN 60669-1, IEC/EN 60669-2-2.
