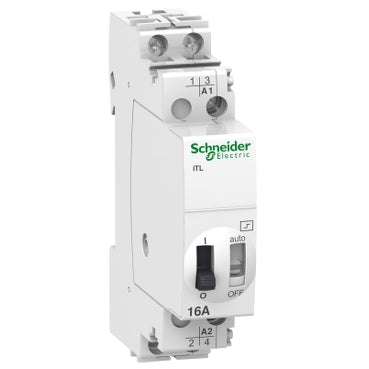

Schneider Electric Bistable Relay - A9C30212
Acti9 itl impulse relays. Itl impulse relays are used to control by pushbuttons lighting circuits consisting of incandescent lamps, low-voltage halogen lamps, fluorescent lamps and discharge lamps. Closing of the impulse relay pole is triggered by an impulse on the coil. Having two stable mechanical positions, the pole will be opened by the next impulse. Can be controlled by an unlimited number of pushbuttons. Zero energy consumption.
- Regular price
- £40.09
Description
This Acti9 iTL is a modular impulse relay. This 2P device features 2 normally open contacts. The rated current is 16A, with an operating voltage of 24VAC to 250VAC. It operates with a control voltage of either 48VAC or 24VDC. The electrical endurance can reach up to 200,000 cycles for AC-21 or 100,000 cycles for AC-22. The switching frequency is 100 switching operations per day or 5 switching operations per minute. The duration of the command order should be between 50ms to 1s.
This device is primarily used for lighting control applications. The Ui rated insulation voltage is 440VAC while the Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. It is mountable on a DIN rail. The degree of pollution is 3 and the overvoltage category is IV.
The dimensions are 18mm (W) x 84mm (H) x 60mm (D). The degree of protection is IP20 and can reach IP40 within an enclosure. The operating temperature ranges from -20°C to 50°C.
The storage temperature ranges from -40°C to 70°C. This product complies with both the IEC/EN 60669-1 and IEC/EN 60669-2-2 standards.
