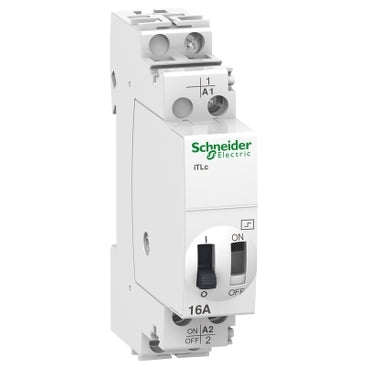

Schneider Electric Bistable Relay - A9C33111
Schneider Electric bistable relay, coil voltage 1 24V, coil voltage type 1 AC, supply voltage 24 - 250V, DIN rail, 1 make contact, nom. (measuring) switching current 16A, width in module units 1, frequency coil voltage 1 50 - 60Hz, manual operation, mounting depth 43.5mm, max. Load fluorescent tube 1300VA.
- Regular price
- £51.24
Description
This Acti 9 iTLc is a modular and reliable impulse switch. This 1-pole device has 1 NO contact. The rated current is 16A, 24V AC to 250V AC operating voltage and it works with 24V AC control voltage. The electrical durability is guaranteed up to 200,000 cycles for AC-21 or 100,000 cycles for AC-22.
The maximum switching frequency is 5 switching movements per minute or 100 switching movements per day. The duration of the command should be between 50 ms and 1 second. The protection degree is IP20 and becomes IP40 when this product is placed in a casing. It is easy to mount on a DIN rail.
It is mainly used for light control applications. It allows centralized control of a group of impulse relays while maintaining the local individual control of each impulse relay. This product complies with IEC/EN 60669-1, IEC/EN 60669-2-2.
