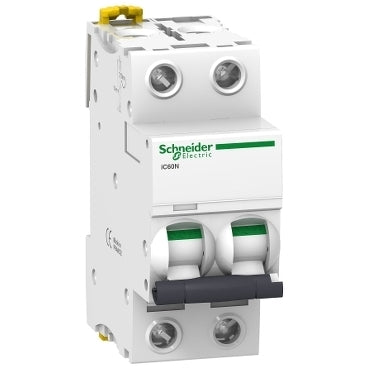

Schneider Electric Circuit Breaker - A9F73206

Schneider Electric Circuit Breaker - A9F73206
Image may vary slightly
See specifications for accurate information.
Reference: E33XR
Brand: Schneider Electric
Mfr. Part: A9F73206

This iC60N circuit breaker has a visi-trip window. This signaling of shutdown due to a fault by a red mechanical status indicator is on the front of the automaton. The green strip on the switch of the Acti 9 iC60 circuit breaker ensures that the contacts are physically open and that work can be performed on the downstream circuit in complete safety. In addition, this Schneider Electric circuit breaker features a double clip for disassembly while the comb rail is still in place.

View all
Regular price
£34.46
excl VAT

In stock Ships in 3d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 52 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 5 - 7 business days

Description
Specifications
Related products

This Acti9 iC60N is a low voltage circuit breaker. This is a 2P circuit breaker with 2 protected poles. It has a nominal current of 6A and a B cut-off characteristic. The cut-off capacity of this circuit breaker is 6000A at 230VAC according to EN/IEC 60898-1 (domestic standard) and 50kA at 220VAC to 240VAC according to EN/IEC 60947-2 (industrial standard). This iC60N circuit breaker complies with both the domestic EN/IEC 60898-1 and the industrial EN/IEC 60947-2 standards. This circuit breaker protects power circuits against short circuit and overload currents.

The unique VisiTrip indicator shortens the search for the switched off (tripped) breaker by marking it clearly. The green VisiSafe indication guarantees the physical opening of the contacts, allowing downstream maintenance to be carried out. The fast cut-off mechanism extends the life of this component.

This Schneider Electric circuit breaker has an electrical lifespan of up to 10000 cycles and a mechanical lifespan of up to 20000 cycles. The Ui rated insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) reduces the cost of protecting the power circuit. It can be mounted on a DIN rail for a modular installation. The width of this breaker is 2 modules of 18mm. The pollution degree is 3 and the overvoltage category is IV. This product comes in white (RAL9003).

The dimensions are 36mm (W) x 85mm (H) x 78.5mm (D). The weight is 0.25kg. According to IEC 60529, the degree of protection is IP20. The degree of protection increases to IP40 when mounted in a modular enclosure with insulation class II. The operating temperature is between -35°C and 70°C. The storage temperature is between -40°C and 85°C.
