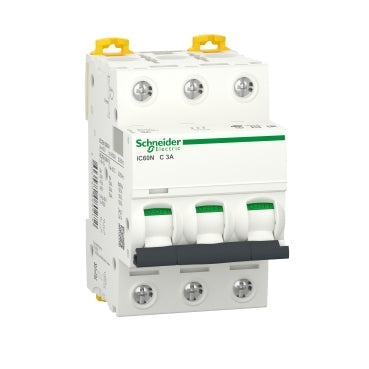

Schneider Electric Circuit Breaker - A9F74303

Schneider Electric Circuit Breaker - A9F74303
Image may vary slightly
See specifications for accurate information.
Reference: E33TK
Brand: Schneider Electric
Mfr. Part: A9F74303

Schnieder electric acti 9 i60n mcbs 3 pole. Acti 9 ic60n series multi-standard circuit breakers combine circuit protection against short circuit currents and circuit protection against overload currents it also protects people against indirect contact with tn and it neutral systems. Fully compliant with standards iec/en 60898 and iec/en 60947-2. Acti 9 is fully tested, approved and certified by national and international third parties.

View all
Regular price
£81.89
excl VAT

In stock Ships in 3d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 3 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 5 - 7 business days

Description
Specifications
Downloads
Related products

This Acti9 iC60N is a low voltage circuit breaker. It is a 3P circuit breaker with 3 protected poles. It has a nominal current of 3A and a C cut-off characteristic. The cut-off capacity of this circuit breaker is 6000A at 230VAC according to the EN/IEC 60898-1 standard (domestic standard) and 50kA at 220VAC to 240VAC according to the EN/IEC 60947-2 standard (industrial standard).

This iC60N circuit breaker complies with both the domestic standard EN/IEC 60898-1 and the industrial standard EN/IEC 60947-2. This circuit breaker protects the power circuits from short circuits and overcurrents. The unique VisiTrip indicator speeds up the search for the tripped circuit breaker by clearly marking it. The green indication of VisiSafe ensures the physical opening of the contacts, so that maintenance can be carried out downstream.

The quick cut-off mechanism extends the life of this component. This Schneider Electric circuit breaker has an electrical lifespan of up to 10,000 cycles and a mechanical lifespan of up to 20,000 cycles. The Ui assigned insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) reduces the costs for protecting the power circuit. It can be mounted on a DIN rail for a modular installation.

The width of this circuit breaker is 3 modules of 18mm. The pollution degree is 3 and the overvoltage category is IV. This product is executed in white color (RAL9003). The dimensions are 54mm (W) x 85mm (H) x 78.5mm (D). The weight is 0.375kg. According to the IEC 60529 standard, the degree of protection is IP20.

The degree of protection increases to IP40 when it is mounted in a modular casing with insulation class II. The operating temperature is between -35°C and 70°C. The storage temperature is between -40°C and 85°C.
