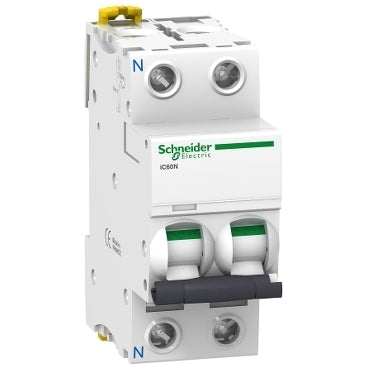

Schneider Electric Circuit Breaker - A9F74604
Acti9 ic60n mcbs 1+n pole. Ic60n curve b, c, d circuit breakers are multi-standard circuit breakers which combine circuit protection against short-circuit currents and circuit protection against overload currents. Visisafe guarantees the downstream circuit is always safe regardless of overvoltage conditions, wear, or operator experience, even in the most demanding environments; the green strip indicates the safe position of contacts.
- Regular price
- £40.77
Description
This Acti9 iC60N is a low voltage circuit breaker. It is a 1P+N circuit breaker with 1 protected pole and a switching neutral. It has a nominal current of 4A and a C cut-off characteristic. The cut-off capacity of this circuit breaker is 6000A at 230VAC according to the standard EN/IEC 60898-1 (domestic standard) and 50kA at 220VAC to 240VAC according to the standard EN/IEC 60947-2 (industrial standard).
This iC60N circuit breaker complies with both the domestic standard EN/IEC 60898-1 and the industrial standard EN/IEC 60947-2. This circuit breaker protects the power circuits against short circuit and overload currents. The unique VisiTrip indicator shortens the search for the tripped breaker by clearly marking it. The green indication of VisiSafe guarantees the physical opening of the contacts, so maintenance can be performed downstream.
The rapid cut-off mechanism extends the life of this component. This Schneider Electric circuit breaker has an electrical life up to 10,000 cycles and a mechanical life up to 20,000 cycles. The Ui assigned insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) reduces the costs for protecting the power circuit. It can be mounted on a DIN rail for a modular installation.
The width of this breaker is 2 modules of 18mm. The pollution degree is 3 and the overvoltage category is IV. This product is in the color white (RAL9003). The dimensions are 36mm (W) x 85mm (H) x 78.5mm (D). The weight is 0.25kg. According to the standard IEC 60529, the protection degree is IP20. The protection degree increases to IP40 when it is mounted in a modular housing with insulation class II. The operating temperature is between -35°C and 70°C. The storage temperature is between -40°C and 85°C.
