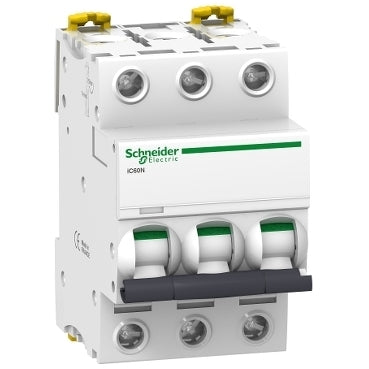

Schneider Electric Circuit Breaker - A9F75325
Schnieder electric acti 9 i60n mcbs 3 pole. Acti 9 ic60n series multi-standard circuit breakers combine circuit protection against short circuit currents and circuit protection against overload currents it also protects people against indirect contact with tn and it neutral systems. Fully compliant with standards iec/en 60898 and iec/en 60947-2. Acti 9 is fully tested, approved and certified by national and international third parties.
- Regular price
- £103.33
Description
This Acti9 iC60N is a low-voltage circuit breaker. It is a 3P circuit breaker with 3 protected poles. It has a nominal current of 25A and a D disconnect characteristic. The disconnecting capacity of this circuit breaker is 6000A at 400VAC according to the EN/IEC 60898-1 standard (domestic standard) and 20kA at 220VAC to 240VAC according to the EN/IEC 60947-2 standard (industrial standard). This iC60N circuit breaker complies with both the domestic standard EN/IEC 60898-1 and the industrial standard EN/IEC 60947-2.
This circuit breaker protects the power circuits from short circuits and overload currents. The unique VisiTrip indicator shortens the search for the disconnected (tripped) circuit breaker by clearly marking it. The green indicator of VisiSafe guarantees the physical opening of the contacts, so maintenance can be performed downstream. The quick disconnecting mechanism extends the lifespan of this component.
This Schneider Electric circuit breaker has an electrical lifespan of up to 10,000 cycles and a mechanical lifespan of up to 20,000 cycles. The Ui assigned insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) reduces the costs to protect the power circuit. It can be mounted on a DIN rail for a modular installation. The width of this circuit breaker is 3 modules of 18mm. The pollution degree is 3 and the overvoltage category is IV. This product is executed in white (RAL9003).
The dimensions are 54mm (W) x 85mm (H) x 78.5mm (D). The weight is 0.375kg. According to the IEC 60529 standard, the protection degree is IP20. The protection degree increases to IP40 when it is mounted in a modular enclosure with insulation class II. The operating temperature is between -35°C and 70°C. The storage temperature is between -40°C and 85°C.
