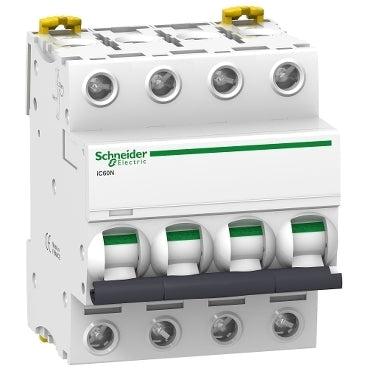

Schneider Electric Circuit Breaker - A9F75416
Schneider electric acti9 i60n mcbs 4 pole. Acti 9 ic60n series multi-standard circuit breakers combine circuit protection against short circuit currents and circuit protection against overload currents it also protects people against indirect contact with tn and it neutral systems. Fully compliant with standards iec/en 60898 and iec/en 60947-2. Acti 9 is fully tested, approved and certified by national and international third parties.
- Regular price
- £119.51
Description
This Acti9 iC60N is a low voltage circuit breaker. It is a 4P breaker with 4 protected poles. It has a nominal current of 16A and a D tripping characteristic. The breaking capacity of this circuit breaker is 6000A at 400VAC according to the EN/IEC 60898-1 (domestic standard) and 20kA at 220VAC to 240VAC according to the standard EN/IEC 60947-2 (industrial standard). This iC60N breaker complies with both the domestic standard EN/IEC 60898-1 and the industrial standard EN/IEC 60947-2.
This breaker protects the electrical circuits from short circuit and overload currents. The unique VisiTrip indicator shortens the search for the tripped breaker by clearly marking it. The green indication of VisiSafe guarantees the physical opening of the contacts, which enables maintenance downstream. The fast tripping mechanism extends the life of this component.
This Schneider Electric breaker has an electrical life span of up to 10000 cycles and a mechanical life span of up to 20000 cycles. The Ui assigned insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) reduces the cost of protecting the electrical circuit. It can be mounted on a DIN rail for modular installation. The width of this breaker is 4 modules of 18mm. The pollution degree is 3 and the surge category is IV.
This product is executed in white color (RAL9003). The dimensions are 72mm (W) x 85mm (H) x 78.5mm (D). The weight is 0.5kg. According to the standard IEC 60529, the degree of protection is IP20. The degree of protection increases to IP40 when it is mounted in a modular enclosure with insulation class II. The operating temperature is between -35°C and 70°C. The storage temperature is between -40°C and 85°C.
