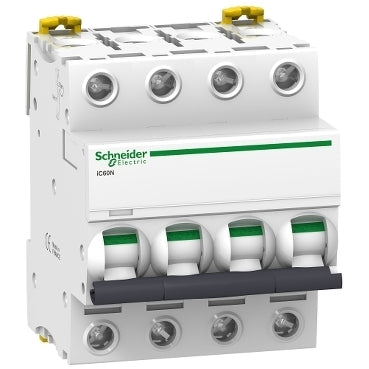

Schneider Electric Circuit Breaker - A9F75432

Schneider Electric Circuit Breaker - A9F75432
Image may vary slightly
See specifications for accurate information.
Reference: E33U7
Brand: Schneider Electric
Mfr. Part: A9F75432

Schneider electric acti9 i60n mcbs 4 pole. Acti 9 ic60n series multi-standard circuit breakers combine circuit protection against short circuit currents and circuit protection against overload currents it also protects people against indirect contact with tn and it neutral systems. Fully compliant with standards iec/en 60898 and iec/en 60947-2. Acti 9 is fully tested, approved and certified by national and international third parties.

View all
Regular price
£131.73
excl VAT

In stock Ships in 3d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 3 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 5 - 7 business days

Description
Specifications
Downloads
Related products

This Acti9 iC60N is a low voltage circuit breaker. It is a 4P circuit breaker with 4 protected poles. It has a rated current of 32A and a D trip characteristic. The breaking capacity of this circuit breaker is 6000A at 400VAC according to the standard EN/IEC 60898-1 (domestic standard) and 20kA at 220VAC to 240VAC according to the standard EN/IEC 60947-2 (industrial standard).

This iC60N circuit breaker complies with both the domestic standard EN/IEC 60898-1 and the industrial standard EN/IEC 60947-2. This circuit breaker protects the current circuits against short circuits and overload currents. The unique VisiTrip indicator shortens the search for the tripped circuit breaker by clearly marking it. The green display of VisiSafe guarantees the physical opening of the contacts, so maintenance can be performed downstream.

The quick trip mechanism extends the life of this component. This Schneider Electric circuit breaker has an electrical life up to 10000 cycles and a mechanical life up to 20000 cycles. The Ui assigned insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) reduces the costs for protecting the power circuit. It can be mounted on a DIN rail for a modular installation. The width of this circuit breaker is 4 modules of 18mm.

The degree of pollution is 3 and the overvoltage category is IV. This product is executed in the color white (RAL9003). The dimensions are 72mm (W) x 85mm (H) x 78.5mm (D). The weight is 0.5kg. According to the standard IEC 60529, the degree of protection is IP20. The degree of protection increases to IP40 when it is mounted in a modular housing with insulation class II. The operating temperature is between -35°C and 70°C. The storage temperature is between -40°C and 85°C.
