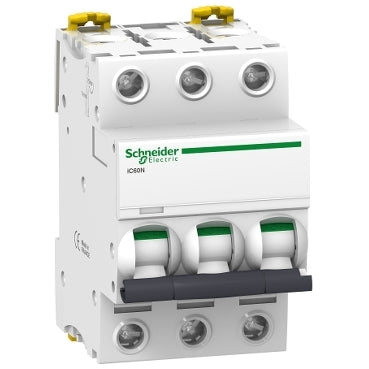

Schneider Electric Circuit Breaker - A9F78306

Schneider Electric Circuit Breaker - A9F78306
Image may vary slightly
See specifications for accurate information.
Reference: E33UQ
Brand: Schneider Electric
Mfr. Part: A9F78306

This iC60N circuit breaker has a visi-trip window. This signaling of shutdown due to a fault by a red mechanical status indicator is on the front of the automaton. The green strip on the switch of the Acti 9 iC60 circuit breaker ensures that the contacts are physically open and that work can be performed on the downstream circuit in complete safety. In addition, this Schneider Electric circuit breaker features a double clip for disassembly while the comb rail is still in place.

View all
Regular price
£58.21
excl VAT

In stock Ships in 3d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 6 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 5 - 7 business days

Description
Specifications
Related products

This Acti9 iC60N is a low-voltage circuit breaker. It is a 3P circuit breaker with 3 protected poles. It has a nominal current of 6A and a B disconnecting characteristic.

The breaking capacity of this circuit breaker is 6000A at 400VAC according to the EN/IEC 60898-1 standard (domestic standard) and 20kA at 220VAC to 240VAC according to the EN/IEC 60947-2 standard (industrial standard). This iC60N circuit breaker complies with both the domestic standard EN/IEC 60898-1 and the industrial standard EN/IEC 60947-2.

This circuit breaker protects the electrical circuits against short circuit and overload currents. The unique VisiTrip indicator shortens the search for the turned off (tripped) circuit breaker by clearly marking it. The green display of VisiSafe guarantees the physical opening of the contacts, so that maintenance can be carried out downstream. The quick disconnect mechanism extends the life of this component.

This Schneider Electric circuit breaker has an electrical life of up to 10,000 cycles and a mechanical life of up to 20,000 cycles. The Ui assigned insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) reduces the cost of protecting the power circuit. It can be mounted on a DIN rail for a modular installation.

The width of this circuit breaker is 3 modules of 18mm. The degree of pollution is 3 and the overvoltage category is IV. This product is white (RAL9003). The dimensions are 54mm (W) x 85mm (H) x 78.5mm (D). The weight is 0.375kg.

According to the IEC 60529 standard, the degree of protection is IP20. The degree of protection increases to IP40 when mounted in a modular enclosure with insulation class II. The operating temperature is between -35°C and 70°C. The storage temperature is between -40°C and 85°C.
