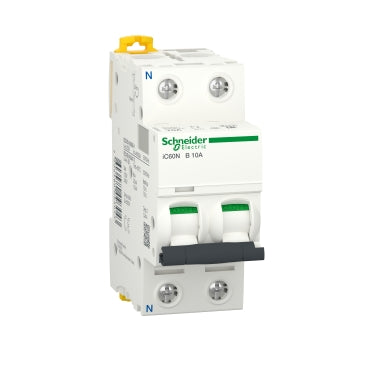

Schneider Electric Circuit Breaker - A9F78610
This iC60N circuit breaker has a visi-trip window. This signaling of shutdown due to a fault by a red mechanical status indicator is on the front of the automaton. The green strip on the switch of the Acti 9 iC60 circuit breaker ensures that the contacts are physically open and that work can be performed on the downstream circuit in complete safety. In addition, this Schneider Electric circuit breaker features a double clip for disassembly while the comb rail is still in place.
- Regular price
- £35.67
Description
The Acti9 iC60N is a low-voltage circuit breaker. It is a 1P+N circuit breaker with 1 protected pole and a switching neutral. This circuit breaker has a nominal current of 10A and a B trip characteristic. The breaking capacity of this circuit breaker is 6000A at 230VAC according to the EN/IEC 60898-1 standard (domestic standard) and 10kA at 220VAC to 240VAC according to the EN/IEC 60947-2 standard (industrial standard). This iC60N circuit breaker complies with both the domestic standard EN/IEC 60898-1 and the industrial standard EN/IEC 60947-2.
This circuit breaker protects electrical circuits from short circuits and overcurrents. The unique VisiTrip indicator makes it easier to locate the tripped breaker by clearly marking it. The green VisiSafe indication guarantees the physical opening of the contacts, enabling downstream maintenance. The quick disconnection mechanism extends the lifespan of this component.
This Schneider Electric circuit breaker has an electrical lifespan of up to 10,000 cycles and a mechanical lifespan of up to 20,000 cycles. The Ui assigned insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) reduces the costs of protecting the electrical circuit. It can be mounted on a DIN rail for modular installation. The width of this breaker is 2 modules of 18mm. The pollution degree is 3 and the overvoltage category is IV.
This product comes in white color (RAL9003). The dimensions are 36mm (W) x 85mm (H) x 78.5mm (D). It weighs 0.25kg. According to IEC 60529 standard, the degree of protection is IP20. The degree of protection increases to IP40 when it is mounted in a modular enclosure with insulation class II. The operating temperature is between -35°C and 70°C. The storage temperature is between -40°C and 85°C.
