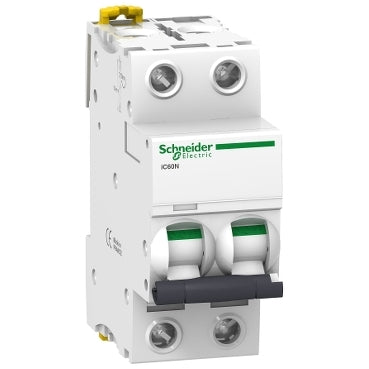

Schneider Electric Circuit Breaker - A9F79232

Schneider Electric Circuit Breaker - A9F79232
Image may vary slightly
See specifications for accurate information.
Reference: E33VN
Brand: Schneider Electric
Mfr. Part: A9F79232

The schneider electric ic60a miniature circuit breaker is multi-standard circuit breaker which combine circuit protection against short-circuit current and circuit protection against overload current. It has 2 pole and has 32 a of current. Its width size. Ambient air temperature for operation -35 to 70 °c. Degree of protection ip20.

View all
Regular price
£46.26
excl VAT

In stock Ships in 3d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 26 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 5 - 7 business days

Description
Specifications
Downloads
Related products

This Acti9 iC60N is a low-voltage circuit breaker. It is a 2P circuit breaker with 2 protected poles. It has a nominal current of 32A and a C cut-off characteristic. The cut-off capacity of this circuit breaker is 6000A at 400VAC according to the standard EN/IEC 60898-1 (domestic standard) and 20kA at 220VAC to 240VAC according to the standard EN/IEC 60947-2 (industrial standard).

This iC60N circuit breaker complies with both the domestic standard EN/IEC 60898-1 and the industrial standard EN/IEC 60947-2. This circuit breaker protects the electrical circuits from short circuit and overload currents. The unique VisiTrip indicator shortens the search for the tripped breaker by clearly marking it. The green VisiSafe indicator guarantees the physical opening of the contacts, allowing for downstream maintenance. The fast cut-off mechanism extends the life of this component.

This Schneider Electric circuit breaker has an electrical life of up to 10000 cycles and a mechanical life of up to 20000 cycles. The Ui assigned insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) reduces the cost of protecting the electrical circuit. It can be mounted on a DIN rail for a modular installation. The width of this breaker is 2 modules of 18mm. The pollution degree is 3 and the overvoltage category is IV.

This product is white in color (RAL9003). The dimensions are 36mm (W) x 85mm (H) x 78.5mm (D). The weight is 0.25kg. According to the standard IEC 60529, the degree of protection is IP20. The degree of protection increases to IP40 when it is mounted in a modular enclosure with insulation class II. The operating temperature is between -35°C and 70°C. The storage temperature is between -40°C and 85°C.
