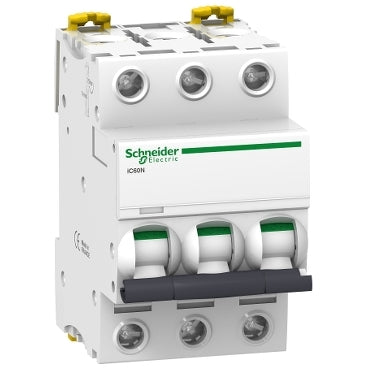

Schneider Electric Circuit Breaker - A9F79350

Schneider Electric Circuit Breaker - A9F79350
Image may vary slightly
See specifications for accurate information.
Reference: E33VZ
Brand: Schneider Electric
Mfr. Part: A9F79350

This iC60N circuit breaker has a visi-trip window. This signaling of shutdown due to a fault by a red mechanical status indicator is on the front of the automaton. The green strip on the switch of the Acti 9 iC60 circuit breaker ensures that the contacts are physically open and that work can be performed on the downstream circuit in complete safety. In addition, this Schneider Electric circuit breaker features a double clip for disassembly while the comb rail is still in place.

View all
Regular price
£127.86
excl VAT

In stock Ships in 3d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 14 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 5 - 7 business days

Description
Specifications
Related products

This text describes the Acti9 iC60N, a low-voltage circuit breaker. It is a 3P circuit breaker with three protected poles, capable of a nominal current of 50A and a C cut-off characteristic. Its cut-off capacity is 6000A at 400VAC according to EN/IEC 60898-1 (domestic standard) and 20kA at 220VAC to 240VAC according to EN/IEC 60947-2 (industrial standard). This iC60N circuit breaker meets both the domestic standard EN/IEC 60898-1 and the industrial standard EN/IEC 60947-2.

It protects electrical circuits from short circuits and overcurrents. Its unique VisiTrip indicator simplifies the search for the tripped breaker by clearly marking it. The green VisiSafe display ensures the physical opening of the contacts, allowing maintenance to be carried out downstream. The fast cut-off mechanism extends the life of this component.

This Schneider Electric circuit breaker has an electrical life of up to 10,000 cycles and a mechanical life of up to 20,000 cycles. The Ui assigned insulation voltage is 500VAC. It has restriction class 3 (according to EN/IEC60898-1), this reduces the costs for protecting the electrical circuit. It can be mounted on a DIN rail for modular installation. The width of this breaker is three 18mm modules. The pollution degree is 3 and the overvoltage category is IV.

This product is white in color (RAL9003). It measures 54mm (W) x 85mm (H) x 78.5mm (D) and weighs 0.375kg. According to IEC 60529, the protection rating is IP20, which increases to IP40 when mounted in a modular housing with insulation class II. It operates at temperatures between -35°C and 70°C and can be stored at temperatures between -40°C and 85°C.
