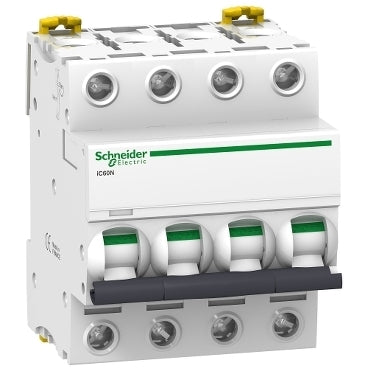

Schneider Electric Circuit Breaker - A9F79440
The schneider electric ic60a miniature circuit breaker is multi-standard circuit breaker which combine circuit protection against short-circuit current and circuit protection against overload current. It has 4 pole and has 40 a of current. Its width size. Ambient air temperature for operation -35 to 70 °c. Degree of protection ip20.
- Regular price
- £113.43
Description
This Acti9 iC60N is a low-voltage circuit breaker. It is a 4P circuit breaker with 4 protected poles. It has a nominal current of 40A and a C disconnection characteristic. The disconnection capacity of this circuit breaker is 6000A at 400VAC according to the EN/IEC 60898-1 standard (domestic standard) and 20kA at 220VAC to 240VAC according to the EN/IEC 60947-2 standard (industrial standard). This iC60N circuit breaker complies with both the domestic EN/IEC 60898-1 standard and the industrial EN/IEC 60947-2 standard.
This circuit breaker protects the power circuits from short-circuit and overload currents. The unique VisiTrip indicator shortens the search for the disabled (tripped) circuit breaker by clearly marking it. The green indication of VisiSafe guarantees the physical opening of the contacts, allowing maintenance to be performed downstream. The quick disconnection mechanism extends the lifespan of this component.
This Schneider Electric circuit breaker has an electrical lifespan up to 10000 cycles and a mechanical lifespan up to 20000 cycles. The Ui assigned insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) reduces the costs for protecting the power circuit. It can be mounted on a DIN rail for a modular installation. The width of this circuit breaker is 4 modules of 18mm. The pollution degree is 3 and the overvoltage category is IV.
This product is made in white color (RAL9003). The dimensions are 72mm (W) x 85mm (H) x 78.5mm (D). It weighs 0.5kg. According to the IEC 60529 standard, the degree of protection is IP20. The protection degree increases to IP40 when it is mounted in a modular housing with insulation class II. The operating temperature is between -35°C and 70°C. The storage temperature is between -40°C and 85°C.
