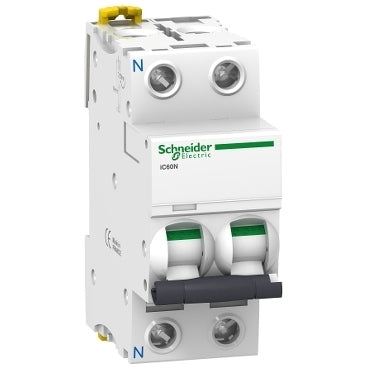

Schneider Electric Circuit Breaker - A9F79610
This iC60N circuit breaker has a visi-trip window. This signaling of shutdown due to a fault by a red mechanical status indicator is on the front of the automaton. The green strip on the switch of the Acti 9 iC60 circuit breaker ensures that the contacts are physically open and that work can be performed on the downstream circuit in complete safety. In addition, this Schneider Electric circuit breaker features a double clip for disassembly while the comb rail is still in place.
- Regular price
- £38.05
Description
The Acti9 iC60N is a low-voltage circuit breaker. It is a 1P+N circuit breaker with 1 protected pole and a switched neutral. It has a nominal current of 10A and a C cut-off characteristic. This circuit breaker boasts a breaking capacity of 6000A at 230VAC per the EN/IEC 60898-1 standard (domestic standard), and 10kA at 220VAC to 240VAC per the EN/IEC 60947-2 standard (industrial standard). The iC60N circuit breaker complies with both the domestic standard EN/IEC 60898-1 and the industrial standard EN/IEC 60947-2.
This breaker protects power circuits from short-circuits and overload currents. It features a unique VisiTrip indicator which clearly marks the switched off, or tripped, circuit breaker. The VisiSafe green indication guarantees the physical opening of the contacts, allowing for downstream maintenance. The inclusion of a quick cut-off mechanism extends the life of this component.
This Schneider Electric circuit breaker has an electrical lifespan of up to 10,000 cycles and a mechanical lifespan of up to 20,000 cycles. It is assigned an insulation voltage of 500VAC. With a limitation class of 3 (according to EN/IEC60898-1), it reduces the costs for protecting the power circuit. It is mountable on a DIN rail for modular installation.
The breaker is 2 modules wide, with each module measuring 18mm. It has a contamination grade of 3 and an overvoltage category of IV. It is white (RAL9003) in color. The dimensions are 36mm (W) x 85mm (H) x 78.5mm (D) and it weighs 0.25kg.
Per the IEC 60529 standard, the degree of protection it offers is IP20. This degree of protection can increase to IP40 when mounted in a modular housing with insulation class II. The operating temperature range is between -35°C and 70°C, while the storage temperature range is between -40°C and 85°C.
