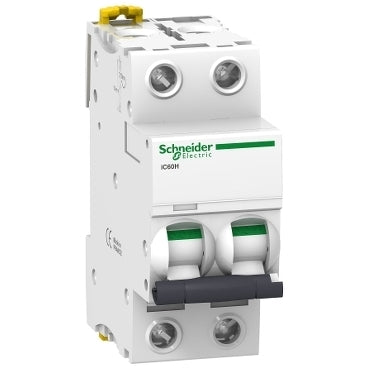

Schneider Electric Circuit Breaker - A9F84202

Schneider Electric Circuit Breaker - A9F84202
Image may vary slightly
See specifications for accurate information.
Reference: E33WD
Brand: Schneider Electric
Mfr. Part: A9F84202

This iC60H circuit breaker has a visi-trip window. This signaling of shutdown due to a fault by a red mechanical status indicator is on the front of the automaton. The green strip on the switch of the Acti 9 iC60 circuit breaker ensures that the contacts are physically open and that work can be performed on the downstream circuit in complete safety. In addition, this Schneider Electric circuit breaker features a double clip for disassembly while the comb rail is still in place.

View all
Regular price
£50.68
excl VAT

In stock Ships in 3d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 15 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 5 - 7 business days

Description
Specifications
Related products

The Acti9 iC60H is a multi-standard low-voltage circuit breaker with dual tunnel connections. This is a 2P circuit breaker with 2 protected poles. It has a nominal current of 2A and a C tripping characteristic. The tripping capacity of this circuit breaker is 10000A at 400VAC according to the EN/IEC 60898-1 standard (domestic standard) and 70kA at 220VAC to 240VAC according to the EN/IEC 60947-2 standard (industrial standard). This iC60N circuit breaker complies with both the domestic standard EN/IEC 60898-1 and the industrial standard EN/IEC 60947-2.

This circuit breaker protects the electrical circuits from short circuit and overload currents. The unique VisiTrip indicator shortens the search for the tripped circuit breaker by clearly marking it. The green VisiSafe indication guarantees the physical opening of the contacts, allowing downstream maintenance to be performed. The quick trip mechanism extends the life of this component. This Schneider Electric circuit breaker has an electrical life of up to 10000 cycles and a mechanical life span of up to 20000 cycles. The Ui assigned insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) reduces the cost of protecting the electrical circuit. It can be mounted on a DIN rail for modular installation.

The width of this circuit breaker is 2 modules of 18mm. The degree of pollution is 3 and the overvoltage category is IV. This product is white (RAL9003) in color. The dimensions are 36mm (W) x 85mm (H) x 78.5mm (D). It weighs 0.25kg. According to the IEC 60529 standard, the degree of protection is IP20. The degree of protection increases to IP40 when it is mounted in a modular housing with insulation class II. The operating temperature is between -35°C and 70°C. The storage temperature is between -40°C and 85°C.
