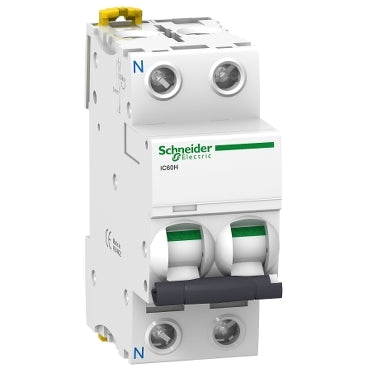

Schneider Electric Circuit Breaker - A9F86616

Schneider Electric Circuit Breaker - A9F86616
Image may vary slightly
See specifications for accurate information.
Reference: E34BG
Brand: Schneider Electric
Mfr. Part: A9F86616

Schneider Electric circuit breaker, tripping characteristic B, nom. (measuring) current 16A, voltage type AC/DC, 2 poles (total), width in module units 2, secondary device possible, connectable conductor cross-section duck 1 - 25mm², 1 protected poles, nom. (measuring) voltage 400V.

View all
Regular price
£38.72
excl VAT

In stock Ships in 3d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 16 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 5 - 7 business days

Description
Specifications
Related products

This Acti9 iC60H is a multi-standard low voltage circuit breaker with double tunnel connections. It is a 1P+N circuit breaker with 1 secured pole and a switching zero. This has a nominal current of 16A and a B cut-off characteristic.

The cut-off capacity of this circuit breaker is:

  • 10000A at 230VAC according to the EN/IEC 60898-1 standard (household standard)
  • 15kA at 220VAC to 240VAC according to the EN/IEC 60947-2 standard (industrial standard)

This iC60N circuit breaker complies with both the household standard EN/IEC 60898-1 and the industrial standard EN/IEC 60947-2. This circuit breaker protects the power circuits against short circuit and overload currents. The unique VisiTrip indicator shortens the search for the tripped circuit breaker by clearly marking it. The green indication of VisiSafe guarantees the physical opening of the contacts, so that maintenance can be carried out downstream. The quick cut-off mechanism extends the lifespan of this component.

This Schneider Electric circuit breaker has an electrical lifespan of up to 10000 cycles and a mechanical lifespan of up to 20000 cycles. The Ui assigned insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) reduces the costs for protecting the power circuit. It can be mounted on a DIN rail for a modular installation. The width of this circuit breaker is 2 modules of 18mm. The pollution degree is 3 and the overvoltage category is IV. This product comes in white color (RAL9003). The dimensions are 36mm (W) x 85mm (H) x 78.5mm (D). The weight is 0.25kg.

According to the IEC 60529 standard, the degree of protection is IP20. The degree of protection increases to IP40 when it is mounted in a modular enclosure with insulation class II. The operating temperature is between -35°C and 70°C. The storage temperature is between -40°C and 85°C.
