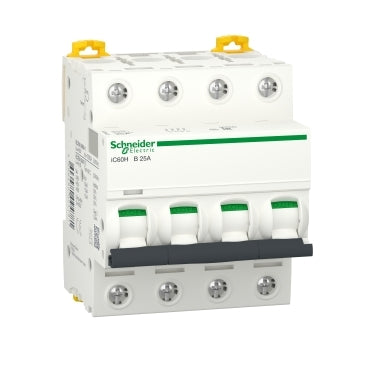

Schneider Electric Circuit Breaker - A9F88425

This Acti9 iC60H is a multi-standard low voltage circuit breaker with dual tunnel connections. It is a 4P circuit breaker with 4 protected poles. It has a nominal current of 25A and a B cut-off characteristic. The cut-off capacity of this circuit breaker is 10,000A at 400VAC according to the EN/IEC 60898-1 standard (domestic standard) and 30kA at 220VAC to 240VAC according to the EN/IEC 60947-2 standard (industrial standard).

This iC60N circuit breaker complies with both the domestic standard EN/IEC 60898-1 and the industrial standard EN/IEC 60947-2. This circuit breaker protects the power circuits against short circuits and overload currents. The unique VisiTrip indicator shortens the search for the cut-off (tripped) circuit breaker by clearly marking it. The green indication of VisiSafe guarantees the physical opening of the contacts, so maintenance can be performed downstream. The quick cut-off mechanism extends the life of this component.

This Schneider Electric circuit breaker has an electrical life of up to 10,000 cycles and a mechanical life of up to 20,000 cycles. The Ui assigned insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) reduces the cost of protecting the power circuit. It can be mounted on a DIN rail for a modular installation. The width of this circuit breaker is 4 modules of 18mm. The pollution degree is 3 and the overvoltage category is IV.

This product is executed in white color (RAL9003). The dimensions are 72mm (W) x 85mm (H) x 78.5mm (D). The weight is 0.5kg. According to the IEC 60529 standard, the degree of protection is IP20. The protection degree goes up to IP40 when it is mounted in a modular housing with insulation class II. The operating temperature is between -35°C and 70°C. The storage temperature is between -40°C and 85°C.
