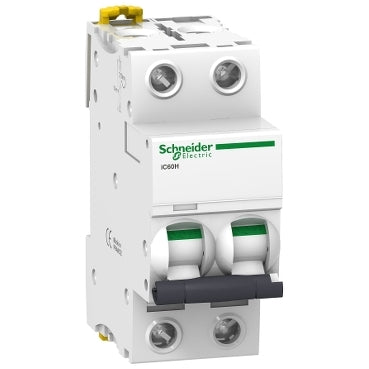

Schneider Electric Circuit Breaker - A9F89206
This iC60H circuit breaker has a visi-trip window. This signaling of shutdown due to a fault by a red mechanical status indicator is on the front of the automaton. The green strip on the switch of the Acti 9 iC60 circuit breaker ensures that the contacts are physically open and that work can be performed on the downstream circuit in complete safety. In addition, this Schneider Electric circuit breaker features a double clip for disassembly while the comb rail is still in place.
- Regular price
- £47.89
Description
This Acti9 iC60H is a multi-standard low voltage circuit breaker with dual tunnel connections. It is a 2P circuit breaker with 2 protected poles. It has a nominal current of 6A and a C tripping characteristic. The breaking capacity of this circuit breaker is 10000A at 400VAC according to the standard EN/IEC 60898-1 (domestic standard) and 30kA at 220VAC to 240VAC according to the standard EN/IEC 60947-2 (industrial standard).
This iC60N circuit breaker complies with both the domestic standard EN/IEC 60898-1 and the industrial standard EN/IEC 60947-2. This circuit breaker protects the power circuits against short-circuit and overload currents. The unique VisiTrip indicator shortens the search for the tripped breaker by clearly marking it. The green indication of VisiSafe ensures the physical opening of the contacts, so maintenance can be carried out downstream. The quick tripping mechanism extends the lifespan of this component.
This Schneider Electric circuit breaker has an electrical lifespan of up to 10000 cycles and a mechanical lifespan of up to 20000 cycles. The Ui rated insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) reduces the costs for protecting the power circuit. It can be mounted on a DIN rail for a modular installation. The width of this breaker is 2 modules of 18mm. The pollution degree is 3 and the overvoltage category is IV. This product is executed in the color white (RAL9003).
The dimensions are 36mm (W) x 85mm (H) x 78.5mm (D). The weight is 0.25kg. According to the standard IEC 60529, the protection degree is IP20. The protection degree increases to IP40 when it is mounted in a modular enclosure with insulation class II. The operating temperature is between -35°C and 70°C. The storage temperature is between -40°C and 85°C.
