Schneider Electric Circuit Breaker - A9F89210

Schneider Electric Circuit Breaker - A9F89210

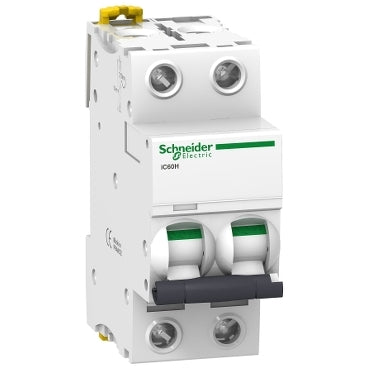

Image may vary slightly
See specifications for accurate information.
Reference: E33Z4
Brand: Schneider Electric
Mfr. Part: A9F89210

The schneider electric ic60a miniature circuit breaker is multi-standard circuit breaker which combine circuit protection against short-circuit current and circuit protection against overload current. It has 2 pole and has 10 a of current. Its width size. Ambient air temperature for operation -35 to 70 °c. Degree of protection ip20.

View all
Regular price
£47.89
excl VAT

In stock Ships in 3d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 31 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 5 - 7 business days

Description
Specifications
Downloads
Related products

This Acti9 iC60H is a multi-standard low voltage installation circuit breaker with double tunnel connections. It is a 2P installation circuit breaker with 2 protected poles. It has a nominal current of 10A and a C tripping characteristic. The interrupting capacity of this installation circuit breaker is 10000A at 400VAC according to the standard EN/IEC 60898-1 (domestic standard) and 30kA at 220VAC to 240VAC according to the standard EN/IEC 60947-2 (industrial standard).

This iC60N installation circuit breaker complies with both the domestic standard EN/IEC 60898-1 and the industrial standard EN/IEC 60947-2. This installation circuit breaker protects the power circuits against short circuit and overload currents. The unique VisiTrip indicator shortens the search for the tripped circuit breaker by clearly marking it. The green mark of VisiSafe guarantees the physical opening of the contacts, so that maintenance can be carried out downstream. The quick disconnection mechanism extends the life of this component.

This Schneider Electric installation circuit breaker has an electrical life up to 10000 cycles and a mechanical life up to 20000 cycles. The assigned insulation voltage Ui is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) reduces the costs for protecting the power circuit. It can be mounted on a DIN rail for a modular installation. The width of this circuit breaker is 2 modules of 18mm. The pollution degree is 3 and the overvoltage category is IV.

This product is designed in white colour (RAL9003). The dimensions are 36mm (W) x 85mm (H) x 78.5mm (D). The weight is 0.25kg. According to the standard IEC 60529, the degree of protection is IP20. The degree of protection increases to IP40 when it is mounted in a modular enclosure with insulation class II. The operating temperature is between -35°C and 70°C. The storage temperature is between -40°C and 85°C.
