Schneider Electric Circuit Breaker - A9F89232

Schneider Electric Circuit Breaker - A9F89232

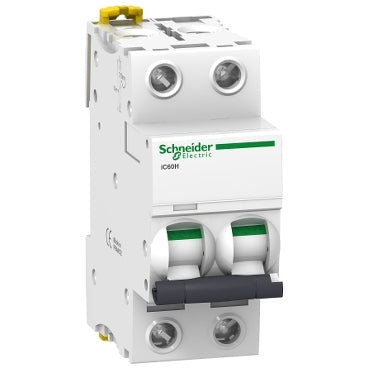

Image may vary slightly
See specifications for accurate information.
Reference: E33Z8
Brand: Schneider Electric
Mfr. Part: A9F89232

This iC60H circuit breaker has a visi-trip window. This signaling of shutdown due to a fault by a red mechanical status indicator is on the front of the automaton. The green strip on the switch of the Acti 9 iC60 circuit breaker ensures that the contacts are physically open and that work can be performed on the downstream circuit in complete safety. In addition, this Schneider Electric circuit breaker features a double clip for disassembly while the comb rail is still in place.

View all
Regular price
£55.93
excl VAT

In stock Ships in 40d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 40 days. Up to 35 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 42 - 44 business days

Description
Specifications
Related products

This Acti9 iC60H is a multi-standard low voltage circuit breaker with double tunnel connections. This is a 2P circuit breaker with 2 protected poles. It has a nominal current of 32A and a C disconnect characteristic.

The switching capacity of this circuit breaker is 10000A at 400VAC according to the standard EN/IEC 60898-1 (domestic standard) and 30kA at 220VAC to 240VAC according to the standard EN/IEC 60947-2 (industrial standard). This iC60N circuit breaker complies with both the domestic standard EN/IEC 60898-1 and the industrial standard EN/IEC 60947-2.

This circuit breaker protects the power circuits against short circuits and overload currents. The unique VisiTrip indicator shortens the search for the tripped breaker by clearly marking it. The green VisiSafe indication guarantees the physical opening of the contacts, so that maintenance can be carried out downstream. The rapid disconnection mechanism extends the life of this component.

This Schneider Electric circuit breaker has an electrical life of up to 10,000 cycles and a mechanical life of up to 20,000 cycles. The Ui assigned insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) reduces the cost to protect the circuit. It can be mounted on a DIN rail for a modular installation.

The width of this breaker is 2 modules of 18mm. The pollution degree is 3 and the overvoltage category is IV. This product is made in white colour (RAL9003). The dimensions are 36mm (W) x 85mm (H) x 78.5mm (D). The weight is 0.25kg. According to the IEC 60529 standard, the protection level is IP20. The protection level increases to IP40 when mounted in a modular housing with insulation class II.

The operating temperature is between -35°C and 70°C. The storage temperature is between -40°C and 85°C.
