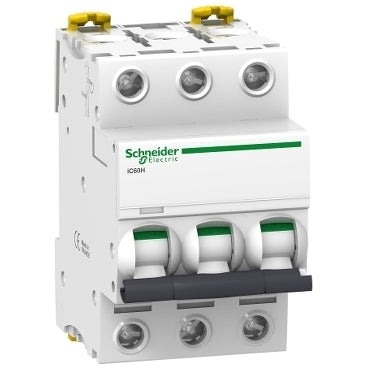

Schneider Electric Circuit Breaker - A9F89340
Schneider Electric circuit breaker, tripping characteristic C, nom. (measuring) current 40A, voltage type AC/DC, 3 poles (total), width in module units 3, secondary device possible, connectable conductor cross-section duck 1 - 35mm², 3 protected poles, nom. (measuring) voltage 400V.
- Regular price
- £121.13
Description
This text presents the Acti9 iC60H, a multi-standard low-voltage circuit breaker with dual tunnel connections. It is a 3P circuit breaker with 3 protected poles. It has a nominal current of 40A and a C tripping characteristic. The tripping capacity of this circuit breaker is 10000A at 400VAC according to standard EN/IEC 60898-1 (domestic standard) and 30kA at 220VAC to 240VAC according to standard EN/IEC 60947-2 (industrial standard).
This iC60N circuit breaker complies with both the domestic standard EN/IEC 60898-1 and the industrial standard EN/IEC 60947-2. It protects power circuits against short circuits and overload currents. The unique VisiTrip indicator shortens the search for the tripped breaker by clearly marking it. The green indication of VisiSafe guarantees the physical opening of the contacts, so that maintenance can be carried out downstream. The quick tripping mechanism extends the service life of this component.
This Schneider Electric circuit breaker has an electrical life up to 10000 cycles and a mechanical life up to 20000 cycles. The Ui assigned insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) reduces the cost of protecting the power circuit. It can be mounted on a DIN rail for modular installation. The width of this breaker is 3 modules of 18mm. The pollution degree is 3 and the overvoltage category is IV. This product comes in white (RAL9003).
The dimensions are 54mm (W) x 85mm (H) x 78.5mm (D). It weighs 0.375kg. According to the IEC 60529 standard, the protection level is IP20. The protection level increases to IP40 when mounted in a modular enclosure with insulation class II. The operating temperature is between -35°C and 70°C. The storage temperature is between -40°C and 85°C.
