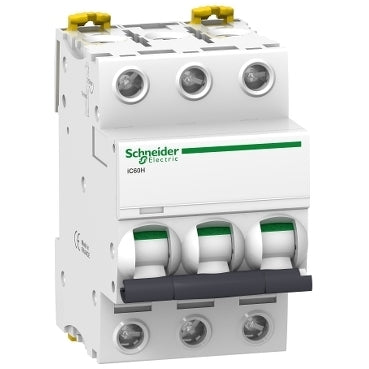

Schneider Electric Circuit Breaker - A9F89363
This iC60H circuit breaker has a visi-trip window. This signaling of shutdown due to a fault by a red mechanical status indicator is on the front of the automaton. The green strip on the switch of the Acti 9 iC60 circuit breaker ensures that the contacts are physically open and that work can be performed on the downstream circuit in complete safety. In addition, this Schneider Electric circuit breaker features a double clip for disassembly while the comb rail is still in place.
- Regular price
- £168.42
Description
This Acti9 iC60H is a multi-standard low-voltage circuit breaker with dual tunnel connections. It is a 3P circuit breaker with three protected poles. It has a nominal current of 63A and a C cut-off characteristic. The cut-off capacity of this circuit breaker is 10,000A at 400VAC according to EN/IEC 60898-1 standard (domestic standard) and 30kA at 220VAC to 240VAC according to EN/IEC 60947-2 standard (industrial standard). This iC60N circuit breaker complies both with the domestic standard EN/IEC 60898-1 and the industrial standard EN/IEC 60947-2. This circuit breaker protects the power circuits from short circuits and overload currents.
The unique VisiTrip indicator shortens the search for the tripped circuit breaker by clearly marking it. The green indication of VisiSafe guarantees the physical opening of the contacts, so that maintenance can be performed downstream. The rapid cut-off mechanism prolongs the life of this component. This Schneider Electric circuit breaker has an electrical life of up to 10,000 cycles and a mechanical life of up to 20,000 cycles. The Ui assigned insulation voltage is 500VAC.
Its limitation class 3 (according to EN/IEC60898-1) reduces the costs for the protection of the power circuit. It can be mounted on a DIN rail for a modular installation. The width of this breaker is 3 modules of 18mm. The pollution degree is 3 and the overload category is IV. This product is executed in the color white (RAL9003). The dimensions are 54mm (W) x 85mm (H) x 78.5mm (D). The weight is 0.375kg. According to IEC 60529 standard, the degree of protection is IP20. The degree of protection increases to IP40 when it is mounted in a modular case with insulation class II. The operating temperature is between -35°C and 70°C. The storage temperature is between -40°C and 85°C.
