Schneider Electric Circuit Breaker - A9F89450
Schneider Electric circuit breaker, tripping characteristic C, nom. (measuring) current 50A, voltage type AC/DC, 4 poles (total), width in module units 4, secondary device possible, connectable conductor cross-section duck 1 - 35mm², 4 protected poles, nom. (measuring) voltage 400V.
- Regular price
- £178.01
Description

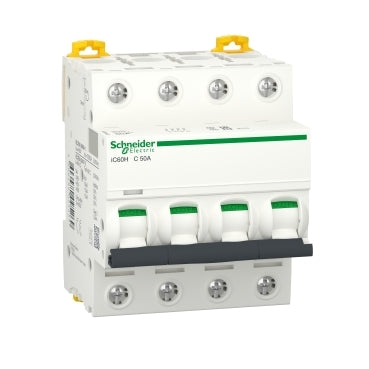

This Acti9 iC60H is a multi-standard low voltage circuit breaker with double tunnel connections. This is a 4P circuit breaker with 4 protected poles. It has a nominal current of 50A and a C cut-off characteristic. The cut-off capacity of this circuit breaker is 10000A at 400VAC according to the EN/IEC 60898-1 standard (domestic standard) and 30kA at 220VAC to 240VAC according to the EN/IEC 60947-2 standard (industrial standard). This iC60N circuit breaker complies with both the domestic standard EN/IEC 60898-1 and the industrial standard EN/IEC 60947-2.
This circuit breaker protects the power circuits against short circuits and overload currents. The unique VisiTrip indicator shortens the search for the tripped circuit breaker by clearly marking it. The green indication of VisiSafe guarantees the physical opening of the contacts, so maintenance can be done downstream. The quick cut-off mechanism extends the life of this component.
This Schneider Electric circuit breaker has an electrical life up to 10000 cycles and a mechanical life up to 20000 cycles. The Ui assigned insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) reduces the costs of protecting the power circuit. It can be mounted on a DIN rail for a modular installation. The width of this circuit breaker is 4 modules of 18mm.
The pollution degree is 3 and the overvoltage category is IV. This product is finished in white (RAL9003). The dimensions are 72mm (W) x 85mm (H) x 78.5mm (D). The weight is 0.5kg. According to the IEC 60529 standard, the degree of protection is IP20. The degree of protection increases to IP40 when it is mounted in a modular enclosure with insulation class II. The operating temperature is between -35°C and 70°C. The storage temperature is between -40°C and 85°C.
