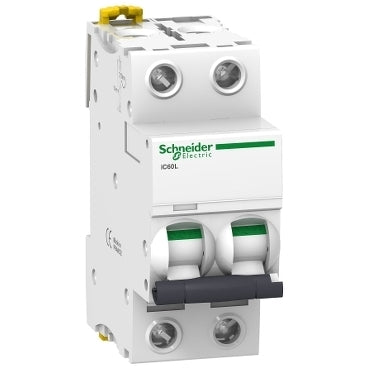

Schneider Electric Circuit Breaker - A9F94206
The schneider electric acti9 ic60l miniature circuit breaker is the safest, simplest and most efficient system for power distribution solutions. It delivers complete industry approved protection. It is perfect for commercial and industrial applications. It guarantees total safety during maintenance. It guarantees long life service. It has fast closing mechanism. It prevents unnecessary trips. It is easy to operate. It is easy to upgrade.
- Regular price
- £79.34
Description
This Acti9 iC60L is a low voltage circuit breaker. It is a 2P circuit breaker with 2 protected poles. It has a nominal current of 6A and a C tripping characteristic. The breaking capacity of this circuit breaker is 15000A at 400VAC according to the EN/IEC 60898-1 standard (domestic standard) and 50kA at 220VAC to 240VAC according to the EN/IEC 60947-2 standard (industrial standard). This iC60N circuit breaker meets both the domestic standard EN/IEC 60898-1 and the industrial standard EN/IEC 60947-2.
This circuit breaker protects the power circuits from short circuits and overload currents. The unique VisiTrip indicator shortens the search for the tripped circuit breaker by clearly marking it. The green VisiSafe indication guarantees the physical opening of the contacts, allowing maintenance to be performed downstream. The fast-breaking mechanism extends the life of this component.
This Schneider Electric circuit breaker has an electrical life up to 10000 cycles and a mechanical life up to 20000 cycles. The Ui assigned insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) reduces the costs of protecting the power circuit. It can be mounted on a DIN rail for a modular installation. The width of this circuit breaker is 2 modules of 18mm.
- The pollution degree is 3 and the overvoltage category is IV.
- This product is available in white (RAL9003).
- The dimensions are 36mm (W) x 85mm (H) x 78.5mm (D).
- The weight is 0.25kg.
- According to the IEC 60529 standard, the protection degree is IP20.
- The protection level increases to IP40 when mounted in a modular enclosure with insulation class II.
- The operating temperature is between -35°C and 70°C.
- The storage temperature is between -40°C and 85°C.
