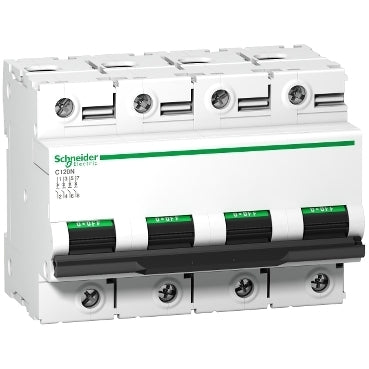

Schneider Electric Circuit Breaker - A9N18371
Acti9 c120n mcbs. Acti9 c120n curve b, c, d circuit breakers are multi-standard circuit breakers which combine circuit protection against short-circuit currents and circuit protection against overload currents. The presence of the green strip ensures that the contacts are open physically and allows work to be carried out safely on the downstream circuit. Fault tripping and indication by adding auxiliaries. Suitability for isolation in the industrial sector to iec/en 60947-2. Insulated terminals ip20. Location for 4 clip-on terminal markers.
- Regular price
- £255.79
Description
The Acti 9 C120N is a low voltage circuit breaker (MCB). This product is a 4P circuit breaker with 4 protected poles. It has a nominal current of 63A and a C trip characteristic. The shut-off capacity at 230VAC to 400VAC is 10000A according to EN/IEC 60898-1. The shut-off capacity at 380VAC to 415VAC is 10kA according to EN/IEC 60947-2.
This C120 circuit breaker complies with both the household standard EN/IEC 60898-1 and the industrial standard EN/IEC 60947-2. This circuit breaker protects the power circuits against short circuits and overload currents. The off position of the switch on the front is clarified with a green strip, making it easy to locate at a glance.
This circuit breaker has a good overvoltage capacity and is designed to deliver high performance with a long lifespan. This Schneider Electric circuit breaker has an electrical life up to 10000 cycles and a mechanical life up to 20000 cycles. The Ui assigned insulation voltage is 500VAC according to EN/IEC 60947-2. The network frequency is 50Hz or 60Hz. The energy limitation class is 3 (according to EN/IEC60898-1), which contributes to cost-effective protection of the power circuit.
The circuit breaker can be mounted on a DIN rail for a modular installation. The width of this switch is 6 modules of 18mm. The pollution degree is 3 and the overvoltage category is IV. This product is white (RAL9003). The dimensions are 108mm (W) x 81mm (H) x 73mm (D). The weight is 820g. According to the standard IEC 60529, the degree of protection is IP20. The degree of protection increases to IP40 when it is mounted in a modular housing with insulation class II. The operating temperature is between -25°C and 70°C. The storage temperature is between -40°C and 85°C.
