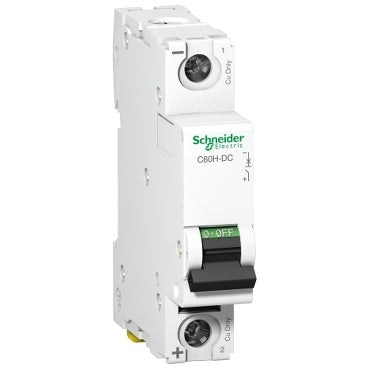

Schneider Electric Circuit Breaker - A9N61502

Schneider Electric Circuit Breaker - A9N61502
Image may vary slightly
See specifications for accurate information.
Reference: E33X9
Brand: Schneider Electric
Mfr. Part: A9N61502

Schneider Electric circuit breaker, tripping characteristic C, nom. (measuring) current 2A, voltage type DC, 1 poles (total), width in module units 1, ancillary device possible, connectable conductor cross-section duck 1 - 25mm², 1 protected poles, nom. (measuring) voltage 220V.

View all
Regular price
£20.34
excl VAT

In stock Ships in 3d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 21 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 5 - 7 business days

Description
Specifications
Related products

This Acti9 C60H-DC is a low-voltage direct current miniature circuit breaker (MCB). It has one pole, a rated current of 2A, and a C tripping curve. The rated short circuit breaking capacity can reach up to 10kA at 220VDC in accordance with the EN 60947-2 standard. This product adheres to both the industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker protects circuits against short circuit and overload current. It features VisiTrip for safety during maintenance and VisiSafe to reduce intervention time.

The Acti9 C60H-DC is applicable in direct current circuits, including industrial control, automation, transport, and renewable energy. This device is specifically created for industrial control, automation, transport, and renewable energy applications. It has an electrical endurance of up to 3000 cycles and a mechanical endurance of up to 20000 cycles. The operational voltage is 250VDC, the rated insulation voltage is 500VDC, and the rated impulse withstand voltage is 6kV. The device operates at a frequency of 50Hz or 60Hz. It can be mounted on a DIN rail. It spans the width of two pitches of 9mm.

The pollution degree is 3 and the overvoltage category is IV. The product color is white (RAL9003) and it weighs 0.128kg. As per the IEC 60529 standard, the degree of protection is IP20 and IP40 when inside an enclosure. The operating temperature ranges from -25°C to 70°C, while the storage temperature can be between -40°C to 85°C.
