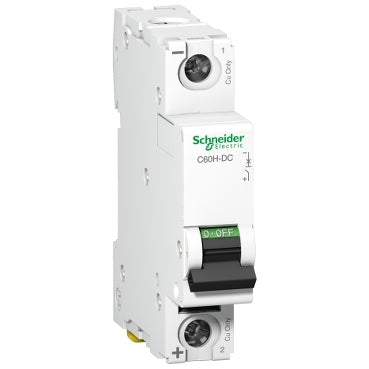

Schneider Electric Circuit Breaker - A9N61504

Schneider Electric Circuit Breaker - A9N61504
Image may vary slightly
See specifications for accurate information.
Reference: E33XB
Brand: Schneider Electric
Mfr. Part: A9N61504

Schneider Electric circuit breaker, tripping characteristic C, nom. (measuring) current 4A, voltage type DC, 1 poles (total), width in module units 1, ancillary device possible, connectable conductor cross-section duck 1 - 25mm², 1 protected poles, nom. (measuring) voltage 220V.

View all
Regular price
£20.32
excl VAT

In stock Ships in 3d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 17 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 5 - 7 business days

Description
Specifications
Related products

This Acti9 C60H-DC is a low voltage direct current miniature circuit breaker (MCB). It has 1P, a rated current of 4A, and a C tripping curve. The rated short circuit breaking capacity reaches up to 10kA at 220VDC, conforming to the EN 60947-2 standard. This product complies with both the industrial standard EN/IEC 60898-1 and the residential standard EN/IEC 60947-2.

This miniature circuit breaker combines the functions of circuit protection against short circuit and overload current, control, and isolation. It offers VisiTrip for safety during maintenance and VisiSafe to reduce intervention time. The Acti9 C60H-DC is used in direct current circuits, such as industrial control and automation, transport, and renewable energy. This device is specifically for industrial control, automations, transport, and renewable energy applications.

  • It has an electrical endurance of up to 3000 cycles and a mechanical endurance of up to 20000 cycles.
  • The Ue operational voltage is 250VDC.
  • The Ui rated insulation voltage is 500VDC.
  • The Uimp rated impulse withstand voltage is 6kV.
  • The operating frequency is either 50Hz or 60Hz.
  • It is mountable on a DIN rail.
  • Its width is 2 pitches of 9mm.
  • The pollution degree is 3.
  • The overvoltage category is IV.
  • The product color is white (RAL9003).
  • The weight is 0.128kg.
  • According to the IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure.
  • The operating temperature ranges from -25°C to 70°C, while the storage temperature ranges from -40°C to 85°C.
