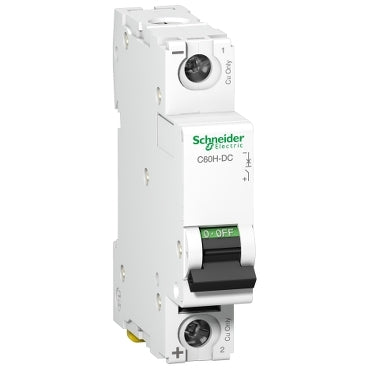

Schneider Electric Circuit Breaker - A9N61508

Schneider Electric Circuit Breaker - A9N61508
Image may vary slightly
See specifications for accurate information.
Reference: E33XD
Brand: Schneider Electric
Mfr. Part: A9N61508

Schneider Electric circuit breaker, tripping characteristic C, nom. (measuring) current 10A, voltage type DC, 1 poles (total), width in module units 1, ancillary device possible, connectable conductor cross-section duck 1 - 25mm², 1 protected poles, nom. (measuring) voltage 220V.

View all
Regular price
£22.24
excl VAT

In stock Ships in 3d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 31 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 5 - 7 business days

Description
Specifications
Related products

This Acti9 C60H-DC is a low voltage direct current miniature circuit breaker (MCB). It has 1P, rated current 10A and a C tripping curve. The rated short circuit breaking capacity reaches up to 10kA at 220VDC in compliance with EN 60947-2 standard. This product meets both the industrial standard EN/IEC 60898-1 and the residential standard EN/IEC 60947-2.

Combining functions of circuit protection against short circuit and overload current, control and isolation, this miniature circuit breaker offers VisiTrip for safety during maintenance and VisiSafe to reduce intervention time.

The Acti9 C60H-DC is used in direct current circuit applications, including industrial control and automation, transport, and renewable energy. It is specifically designed for industrial control, automations, transport and renewable energy applications. The electrical endurance reaches up to 3000 cycles and the mechanical endurance up to 20000 cycles.

The operational voltage (Ue) is 250VDC, the rated insulation voltage (Ui) is 500VDC and the rated impulse withstand voltage (Uimp) is 6kV. The operating frequency is either 50Hz or 60Hz. It is mountable on a DIN rail and occupies a width of 2 pitches of 9mm. The pollution degree is 3, and the overvoltage category is IV.

The product is white in color (RAL9003) and weighs 0.128kg. As per IEC 60529 standard, the degree of protection is IP20 and IP40 when enclosed. The operating temperature range is from -25°C to 70°C, and the storage temperature range is from -40°C to 85°C.
