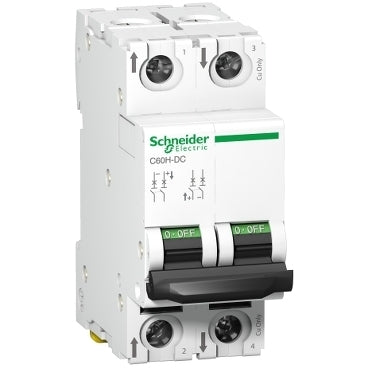

Schneider Electric Circuit Breaker - A9N61524

Schneider Electric Circuit Breaker - A9N61524
Image may vary slightly
See specifications for accurate information.
Reference: E33XJ
Brand: Schneider Electric
Mfr. Part: A9N61524

Schneider Electric circuit breaker, tripping characteristic C, nom. (measuring) current 4A, voltage type DC, 2 poles (total), width in module units 2, ancillary device possible, connectable conductor cross-section duck 1 - 25mm², 2 protected poles, nom. (measuring) voltage 440V.

View all
Regular price
£50.83
excl VAT

In stock Ships in 40d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 40 days. Up to 38 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 42 - 44 business days

Description
Specifications
Related products

The Acti9 C60H-DC is a low voltage, direct current miniature circuit breaker (MCB). This is a 2P circuit breaker with 2 protected poles, 4A rated current and a C tripping curve. Its rated short circuit breaking capacity goes up to 20kA at 220VDC, conforming to the GB 14048.2 standard. This product complies with both the industrial standard EN/IEC 60898-1 and the residential standard EN/IEC 60947-2. This MCB protects circuits against short circuits and overload currents and is suitable for isolation in the industrial sector according to the IEC/EN 60947-2 standard.

The Acti9 C60H-DC is used in direct current circuits such as industrial control, automation, transport, and renewable energy. It is ideally suited for residential and small commercial buildings. It offers an electrical endurance of up to 3000 cycles and a mechanical endurance of up to 20000 cycles. The Ue operational voltage is 500VDC, the Ui rated insulation voltage is 500VDC, and the Uimp rated impulse withstand voltage is 6kV.

This MCB operates at a frequency of either 50Hz or 60Hz and can be mounted on a DIN rail. With a width of 4 pitches of 9mm, a pollution degree of 3, and an overvoltage category of IV, this product is a compact solution to your circuit protection needs. It has a white (RAL9003) exterior and weighs 0.256kg. The degree of protection, as per the IEC 60529 standard, is IP20 and IP40 when enclosed. It operates optimally between temperatures of -25°C and 70°C, and can be stored between -40°C and 85°C.
