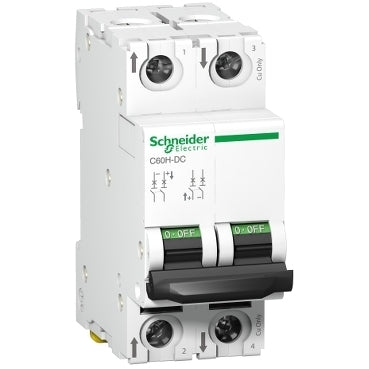

Schneider Electric Circuit Breaker - A9N61528
Schneider Electric circuit breaker, tripping characteristic C, nom. (measuring) current 10A, voltage type DC, 2 poles (total), width in module units 2, ancillary device possible, connectable conductor cross-section duck 1 - 25mm², 2 protected poles, nom. (measuring) voltage 440V.
- Regular price
- £57.10
Description
This Acti 9 C60H-DC is a low voltage circuit breaker. This product is equipped with 2P, has a nominal current of 10A and a C cut-off characteristic. The cut-off capacity at 220V DC is 20kA, at 250V DC is 20kA, at 440V is 10kA and at 500V is 6kA according to IEC 60947-2.
They combine functions such as short circuit and overload protection, control and insulation. VisiTrip ensures extra safety during maintenance and VisiSafe helps to shorten the intervention time. It has a longer lifespan thanks to the high limits and the quick closing.
Fast opening of the contacts prevents the loads from being disturbed in the event of a short circuit. This device is intended for industrial control, automation, transport and renewable energy applications.
