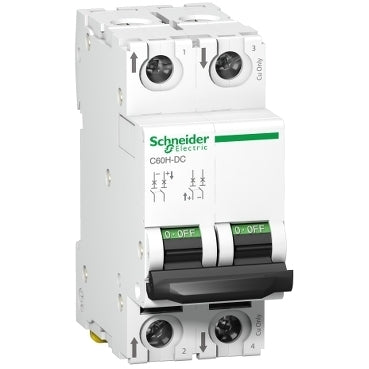

Schneider Electric Circuit Breaker - A9N61531
Schneider Electric circuit breaker, tripping characteristic C, nom. (measuring) current 16A, voltage type DC, 2 poles (total), width in module units 2, ancillary device possible, connectable conductor cross-section duck 1 - 25mm², 2 protected poles, nom. (measuring) voltage 440V.
- Regular price
- £57.11
Description
This Acti 9 C60H-DC is a low-voltage circuit breaker. This product has 2P, a nominal current of 16A and a C tripping characteristic.
The tripping capacity at different voltage levels is as follows:
- At 220V DC: 20kA
- At 250V DC: 20kA
- At 440V: 10kA
- At 500V: 6kA
This information is according to IEC 60947-2. They combine functions such as short-circuit and overload protection, control, and insulation. VisiTrip ensures extra safety during maintenance and VisiSafe helps to shorten the intervention time.
It has a longer lifespan thanks to high limits and quick closing. Quick opening of the contacts prevents the loads from being disrupted in case of a short circuit. This device is intended for industrial control, automation, transportation, and renewable energy applications.
