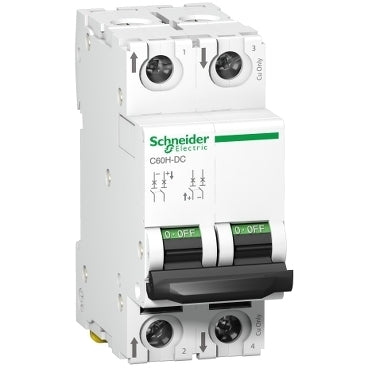

Schneider Electric Circuit Breaker - A9N61532
Schneider Electric circuit breaker, tripping characteristic C, nom. (measuring) current 20A, voltage type DC, 2 poles (total), width in module units 4, ancillary device possible, connectable conductor cross-section duck 1 - 25mm², 1 protected poles, nom. (measuring) voltage 440V.
- Regular price
- £55.25
Description
This Acti9 C60H-DC is a low voltage direct current miniature circuit breaker (MCB). It has 2P, a rated current of 20A and a C tripping curve. The rated short circuit breaking capacity reaches up to 20kA at 220VDC, conforming to the GB 14048.2 standard. This product complies with both the industrial standard EN/IEC 60898-1 and the residential standard EN/IEC 60947-2.
This miniature circuit breaker combines functions of circuit protection against short circuit and overload current, control, and isolation. It offers VisiTrip for safety during maintenance and VisiSafe to reduce intervention time. The Acti9 C60H-DC is used in direct current circuits such as industrial control and automation, transport, and renewable energy. This device is primarily used for industrial control, automations, transport, and renewable energy applications.
It has an electrical endurance of up to 3000 cycles and a mechanical endurance of up to 20000 cycles. The operational voltage is 500VDC. The rated insulation voltage is 500VDC. The rated impulse withstand voltage is 6kV. The operating frequency is either 50Hz or 60Hz. It is mountable on a DIN rail. Its width equates to 4 pitches of 9mm. The pollution degree is 3 and the overvoltage category is IV. The product is white in colour (RAL9003) and weighs 0.256kg.
According to the IEC 60529 standard, the degree of protection is IP20 and IP40 when in an enclosure. The operating temperature ranges from -25°C to 70°C, and the storage temperature ranges from -40°C to 85°C.
