Schneider Electric Circuit Breaker - M9F11210
The schneider electric c60n series have mcb having 10 amp rated operating current and its used for the distribution application. This mcb have thermal magnetic trip unit technology with c curve code. This mcb have toggle control type with din rail mounting. Ip degree of protection is ip20 and ip40. Ambient air temperature for operation is -30 to 70 °c.
- Regular price
- £32.04
Description

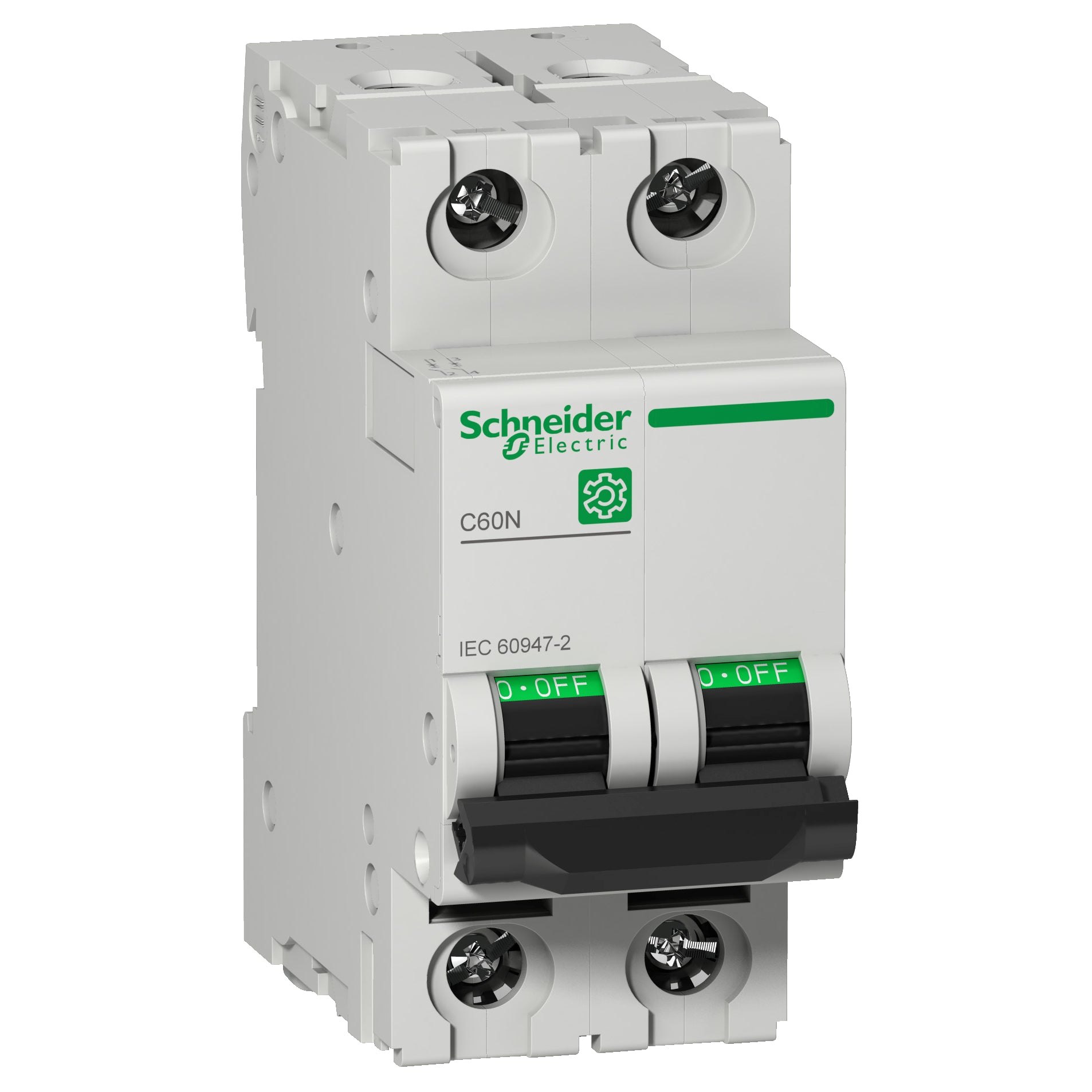

This Multi 9 C60N is a low voltage circuit breaker (MCB). This product is a 2P circuit breaker with 2 secured poles. It has a nominal current of 10A and a C tripping characteristic. It can be mounted on a DIN rail for a modular installation.
As a circuit breaker, the breaking capacity is according to IEC/EN 60947-2, 20kA at 230V AC and 10kA at 400V AC. This power switch offers additional protection of the circuits against short circuit and overcurrent. It has an IP20 degree of protection (according to IEC/EN 60529) on the terminals.
The protection degree increases to IP40 when it is mounted in a modular casing. The fast closing mechanism, the overvoltage resistance and the high performance limit increase the lifespan of this component. The tripping or position indication functions are remotely supplied by adding electrical tools.
The green indication guarantees the physical opening of the contacts, so that maintenance can be performed downstream.
