Schneider Electric Circuit Breaker - M9F11216
The schneider electric c60n series have mcb having 16 amp rated operating current and its used for the distribution application. This mcb have thermal magnetic trip unit technology with c curve code. This mcb have toggle control type with din rail mounting. Ip degree of protection is ip20 and ip40. Ambient air temperature for operation is -30 to 70 °c.
- Regular price
- £28.36
Description

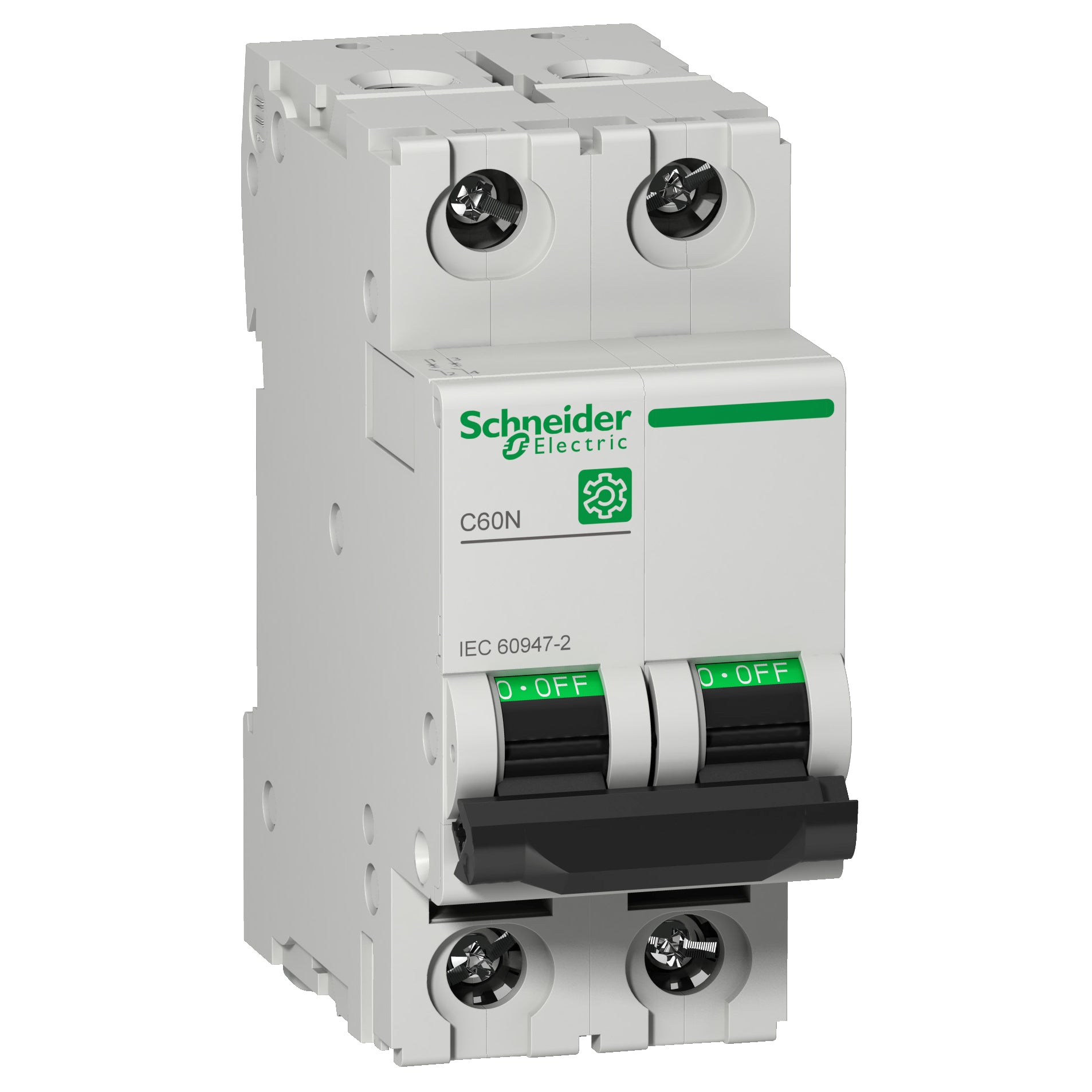

This Multi9 C60N is a low voltage miniature circuit breaker (MCB). It is a two-pole circuit breaker with a rated current of 16A and a C tripping curve. The rated short circuit breaking capacity reaches up to 10kA at 415VAC conforming to the EN/IEC 60947-2 standard.
This product adheres to both the industrial standard EN/IEC 60898-1 and the residential standard EN/IEC 60947-2. It is designed to provide enhanced protection by safeguarding people and equipment from electrical threats.
This product safeguards against short circuits, earth leakage, and overloading. Its swift closing mechanism, overvoltage resistance, and high-performance limitation extend its service life. This product is intended for original equipment manufacturers (OEM) and control panel builders.
It has an electrical endurance of up to 10,000 cycles and a mechanical endurance of up to 20,000 cycles. The operational voltage (Ue) is 240VAC. The rated insulation voltage (Ui) is 500VAC. The rated impulse withstand voltage (Uimp) is 6kV. The operating frequency is either 50Hz or 60Hz.
This product can be attached to a DIN rail. It is 4 pitches of 9mm wide. The pollution degree is 3, and the overvoltage category is IV. The product colour is light grey (RAL7035).
The dimensions are 36mm (W) x 81mm (H) x 72mm (D). It weighs 0.24kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature ranges from -30°C to 70°C. The storage temperature ranges from -40°C to 80°C.
