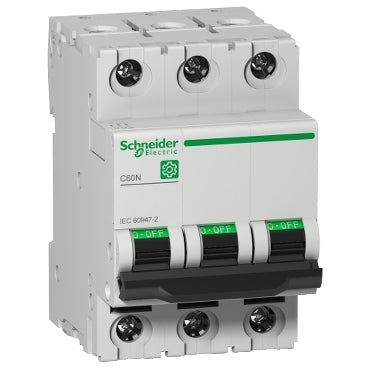

Schneider Electric Circuit Breaker - M9F11310

Schneider Electric Circuit Breaker - M9F11310
Image may vary slightly
See specifications for accurate information.
Reference: E366F
Brand: Schneider Electric
Mfr. Part: M9F11310

The schneider electric c60n series have mcb having 10 amp rated operating current and its used for the distribution application. This mcb have thermal magnetic trip unit technology with c curve code. This mcb have toggle control type with din rail mounting. Ip degree of protection is ip20 and ip40. Ambient air temperature for operation is -30 to 70 °c.

View all
Regular price
£41.76
excl VAT

In stock Ships in 3d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 10 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 5 - 7 business days

Description
Specifications
Downloads
Related products

The text translates to English as:

This Multi 9 C60N is a low-voltage circuit breaker (MCB). This product is a 3P circuit breaker with 3 protected poles. It has a nominal current of 10A and a C tripping characteristic. It can be mounted on a DIN rail for a modular installation. As a circuit breaker, the breaking capacity according to IEC/EN 60947-2 is 20kA at 230V AC and 10kA at 400V AC. This power switch provides additional protection of the circuits against short circuit and overcurrent. It has an IP20 protection degree (according to IEC/EN 60529) on the terminals. The protection degree increases to IP40 when it is mounted in a modular housing.

The fast closing mechanism, overvoltage resistance, and high performance limit extend the lifespan of this component. The breaking or position indicating functions are supplied remotely by adding electrical aids. The green indication guarantees the physical opening of the contacts, so that maintenance can be performed downstream.
